Factor 55 FlatLink Multi-Mount Winch Shackle for 3/8 in. Cables and Rope

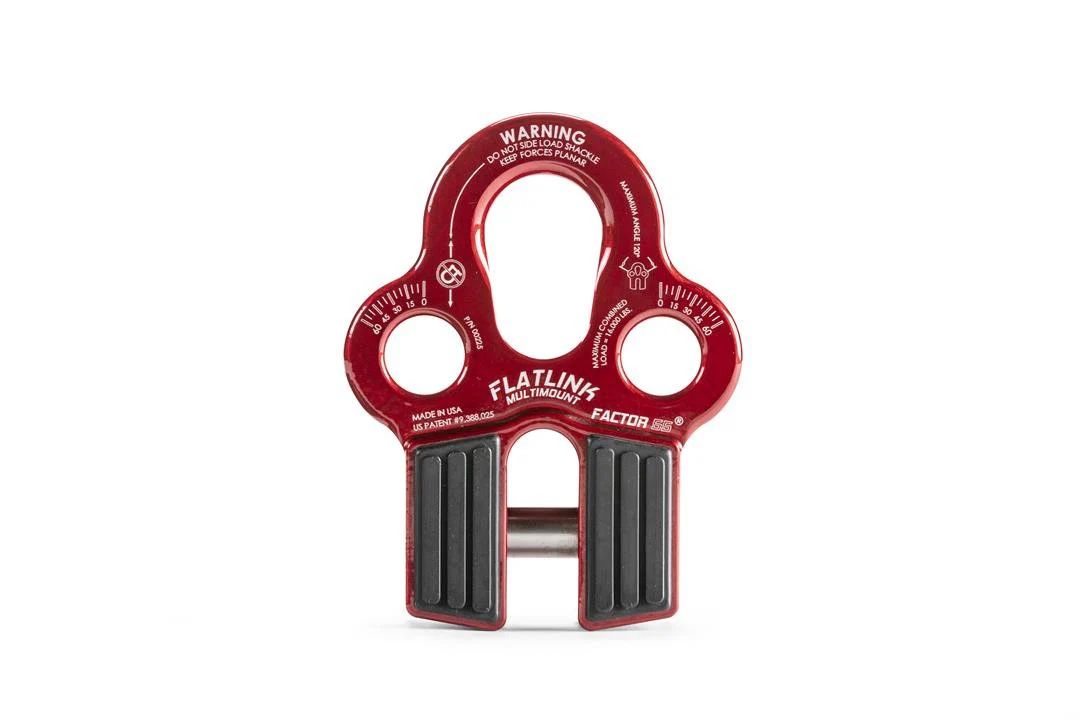

FlatLink Multi-Mount Winch Shackle
FlatLink MultiMount is designed for difficult off camber vehicle recovery scenarios where two different winch pull directions are often necessary. The two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions, while the center hole provides a secure conventional center pull shackle mount point. This arrangement eliminates any shackle side loading forces at the Multimount interface ( Shackles are free to rotate and align to the load directions). Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging. Similar to the rest of the FlatLink product line, the MultiMount may be folded flat against fairlead surfaces when stowed, resulting in minimal impact to vehicle approach angles.
Specifications
- Shackle Type: 3/4 Inch Screw Pin Hook
- Cable Type: 3/8 Inch Steel Cables
- Load Capacity (LB): 16000 Pound
- Shear Pin Size (IN): 5/8 Inch
- Color: Red
- Material: Billet Aluminum
- With Guard: Yes
- Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring; Multiple Shackle Interface For Bridle And Off-Camber Towing
- Lightweight - Precision CNC Machined 6000 Series Aluminum; No Splicing Required - Titanium Double Shear Pin Design
- Designed For Both Steel Cables And Synthetic Winch Ropes
- For Rope And Cable Diameters Up To 3/8 Inch
- Oval Hole Opening Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
- Oval Hole Opening Connects To Either The Pin Or Bow End Of Common 3/4 Inch Screw Pin Shackles
- Integrated EPDM Rubber Pads For Fairlead Protection
- Foldable - 1.75 Inch Thick (Compatible With All Fairlead License Plate Mounting Brackets)
- Fits Multiple 3/4 Inch Screw Pin Shackles; Fits Over Most OEM Tow Hooks
- Limited 1 Year Warranty
Select Color
From $80.50
Original: $229.99
-65%Factor 55 FlatLink Multi-Mount Winch Shackle for 3/8 in. Cables and Rope—
$229.99
$80.50
Description
FlatLink Multi-Mount Winch Shackle
FlatLink MultiMount is designed for difficult off camber vehicle recovery scenarios where two different winch pull directions are often necessary. The two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions, while the center hole provides a secure conventional center pull shackle mount point. This arrangement eliminates any shackle side loading forces at the Multimount interface ( Shackles are free to rotate and align to the load directions). Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging. Similar to the rest of the FlatLink product line, the MultiMount may be folded flat against fairlead surfaces when stowed, resulting in minimal impact to vehicle approach angles.
Specifications
- Shackle Type: 3/4 Inch Screw Pin Hook
- Cable Type: 3/8 Inch Steel Cables
- Load Capacity (LB): 16000 Pound
- Shear Pin Size (IN): 5/8 Inch
- Color: Red
- Material: Billet Aluminum
- With Guard: Yes
- Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring; Multiple Shackle Interface For Bridle And Off-Camber Towing
- Lightweight - Precision CNC Machined 6000 Series Aluminum; No Splicing Required - Titanium Double Shear Pin Design
- Designed For Both Steel Cables And Synthetic Winch Ropes
- For Rope And Cable Diameters Up To 3/8 Inch
- Oval Hole Opening Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
- Oval Hole Opening Connects To Either The Pin Or Bow End Of Common 3/4 Inch Screw Pin Shackles
- Integrated EPDM Rubber Pads For Fairlead Protection
- Foldable - 1.75 Inch Thick (Compatible With All Fairlead License Plate Mounting Brackets)
- Fits Multiple 3/4 Inch Screw Pin Shackles; Fits Over Most OEM Tow Hooks
- Limited 1 Year Warranty
