LOGIQ Standard Duty 1 Channel Onboard Air Management System with Bluetooth Capability - Recon Recovery

Take control of your load leveling air suspension system with AirIQ.

This complete, factory-assembled kit offers unmatched reliability and ease of use, providing parallel control of both air springs through a single-channel setup.

Key Features:

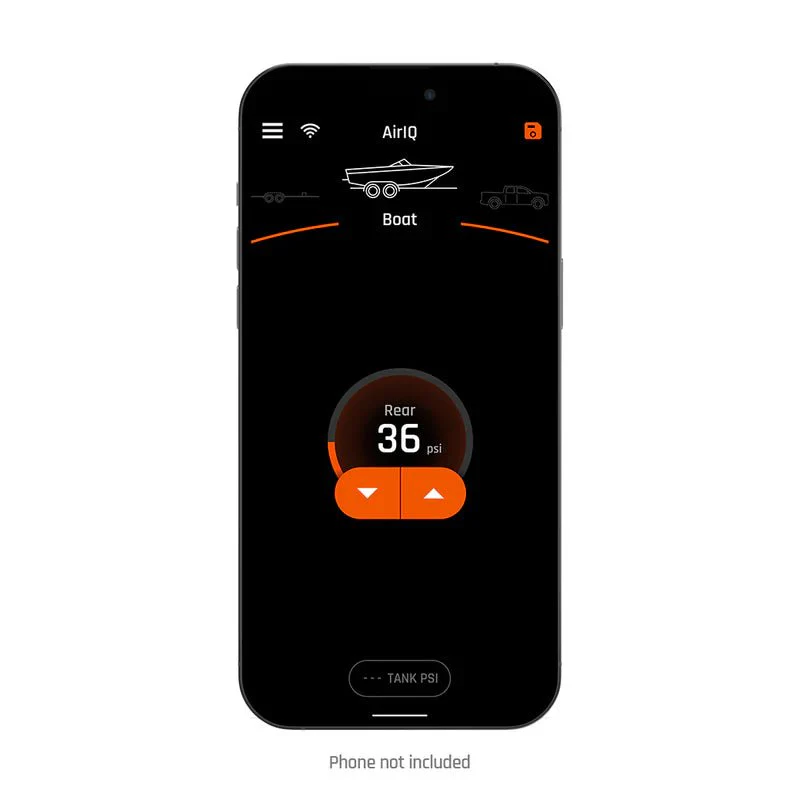

• AirIQ Bluetooth Management System (1-Channel): Allows real-time pressure adjustment and monitoring via the AirIQ app for simultaneous control of both air springs.

• Standard Duty Compressor: LOGIQ 25% duty cycle, rated at 150 PSI, with 2.03 CFM @ 0 PSI for dependable air delivery.

• Plug-and-Play Installation: Includes a complete plumbing kit, wiring harness, and easy frame-mounting brackets for a hassle-free setup.

• Factory Assembled & Tested: Every system is pre-built and performance-tested to ensure long-lasting durability and consistent results.

• Lifetime Warranty: Worry Free Reliability

Affordable. Reliable. AirIQ.
This is the most cost-effective way to upgrade your vehicle’s suspension control—perfect for helper bag systems or basic air ride needs.

Comparison Chart

Feature	AirIQ SD1	AirIQ SD2	AirIQ HD2
Price	$799.95	$899.95	$999.95
Compressor Output	2.03 CFM @ 0 psi	2.03 CFM @ 0 psi	2.62 CFM @ 0 psi
Duty Cycle	25 % @ 100 psi	25 % @ 100 psi	33 % @ 100 psi
Maximum Pressure	150 psi	150 psi	150 psi
Compressor Voltage & Draw	12 V, 30 A	12 V, 30 A	12 V, 40 A
Valve Channels	1‑Channel Smart Manifold (parallel control)	2‑Channel Smart Manifold (individual corner control)	2‑Channel Smart Manifold
Ingress Protection	IP54 (compressor)  IP67 (other components)	IP54 (compressor), IP67 (other components)	IP67 system-wide
User Control Interfaces	Bluetooth app + 2‑ch remote	Bluetooth app + 2‑ch remote	Bluetooth app + 2‑ch remote
Typical Use Case	Parallel fill—simplest setup, cost‑effective	Independent corner leveling with standard compressor	Heavy‑duty use: faster fill, full durability



Specs

• Compressor Output: 2.03 CFM @ 0psi
• Compressor Duty Cycle: 25% @ 100 psi
• Ingress Protection Rating: IP54 Compressor / IP67 Other Components
• Max Pressure: 150 psiVoltage: 12 Volts
• Current Draw: 30 Amps
• Warranty: Lifetime

Includes

• (1) AirIQ SD1 Air Management System with 20 ft wiring harness pre-installed
• (4) Frame Mounting Brackets and Hardware Kit
• (1) AirIQ SD1 Installation Kit: Tee Fitting, 20ft 1/4" air line, fuse taps, 18ft wire loom

Instructions

PDF INSTALLATION INSTRUCTIONS
