OVS Truck Bed Cargo Bedslide Extension - Recon Recovery

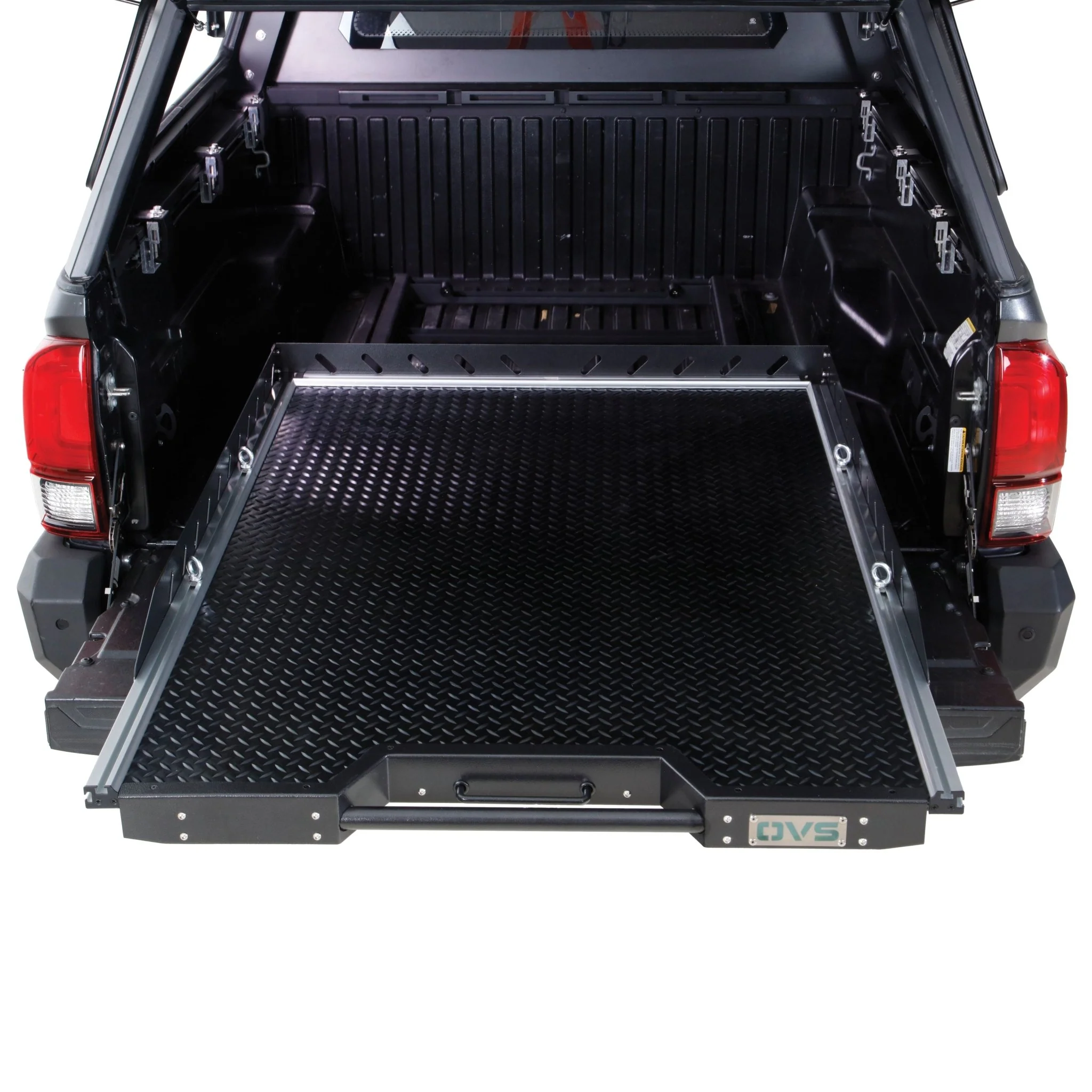

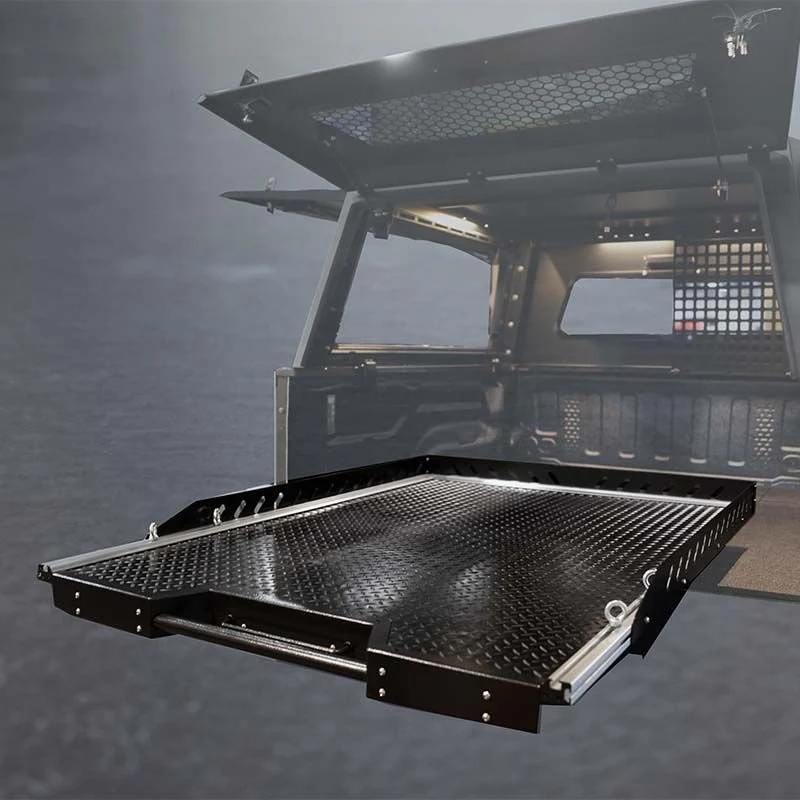

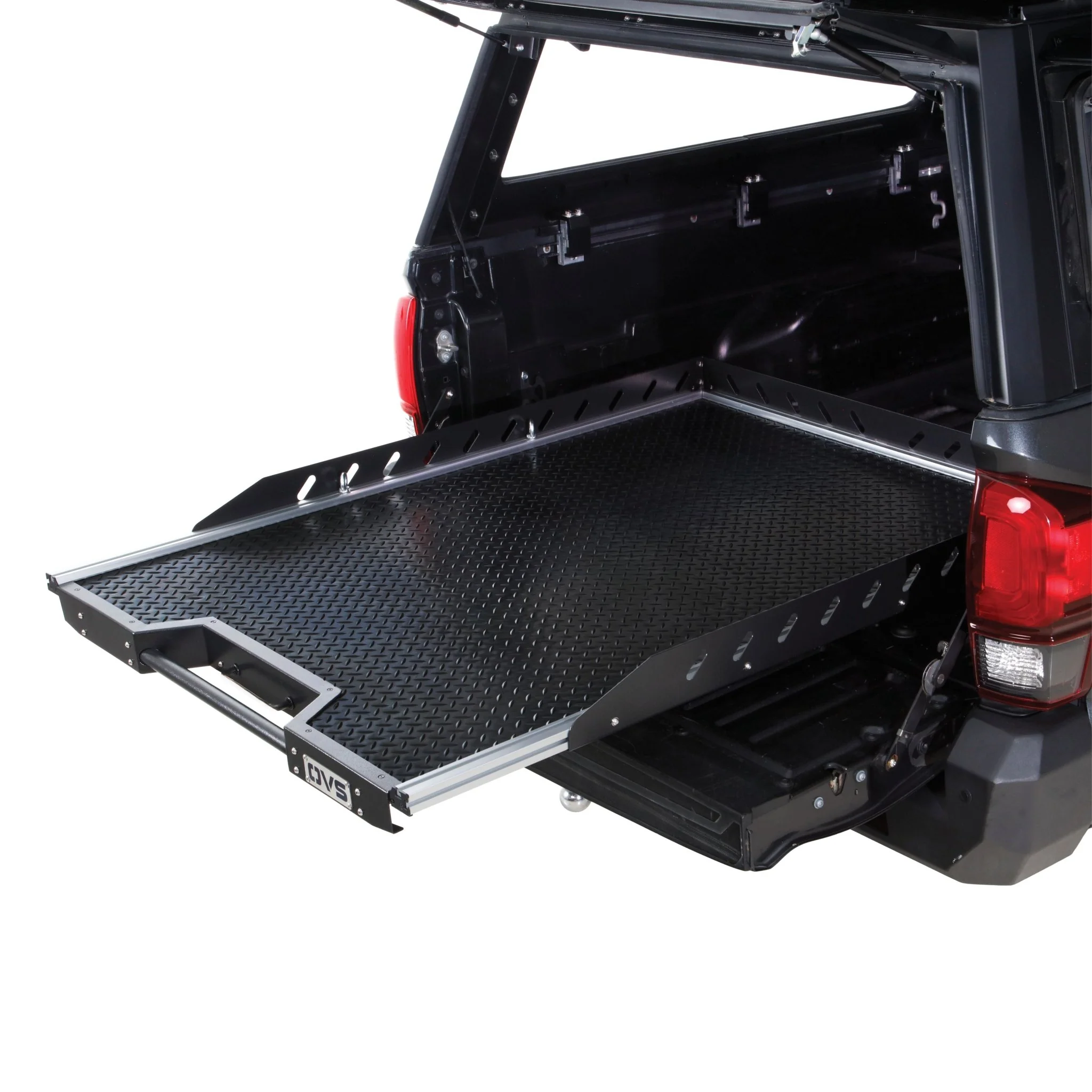

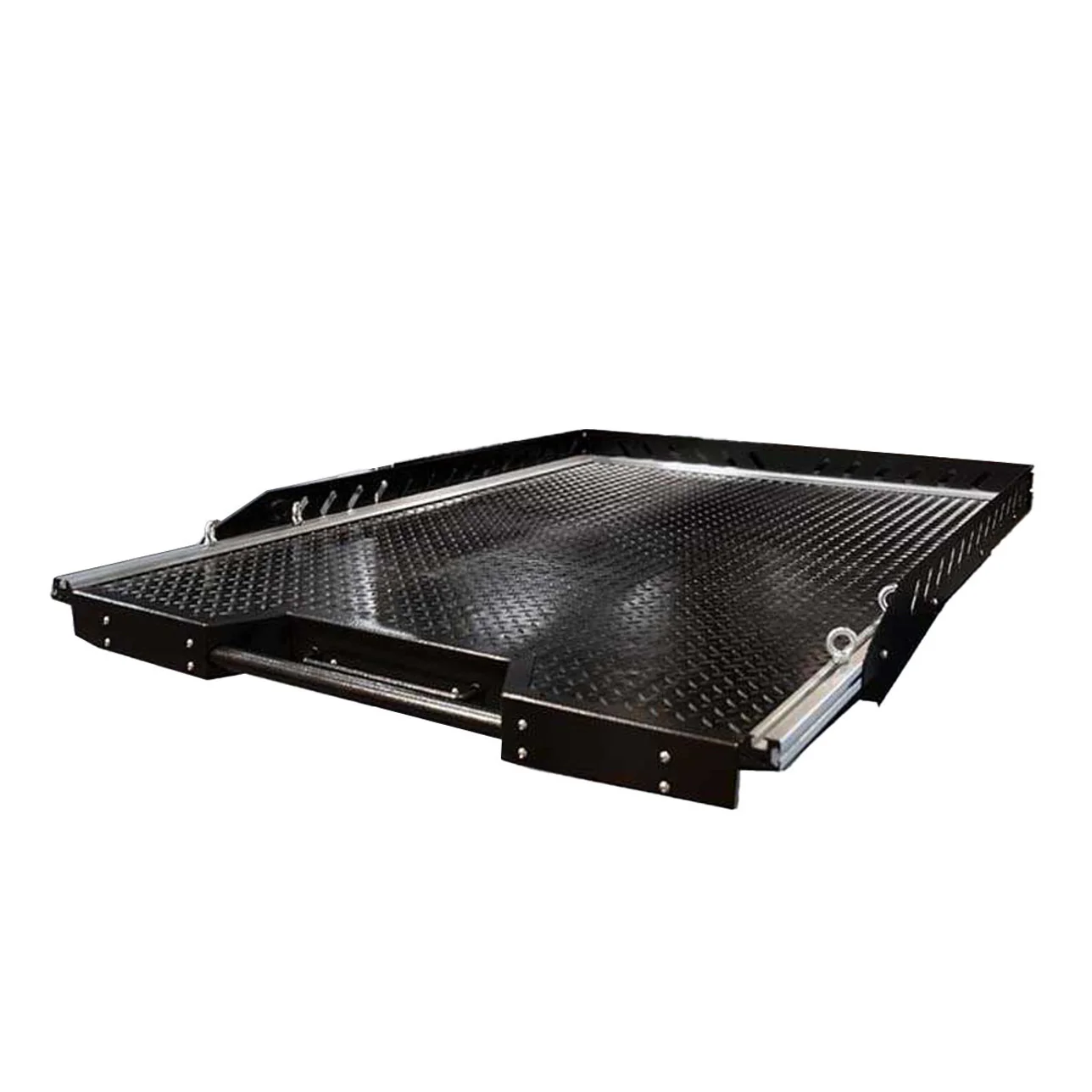

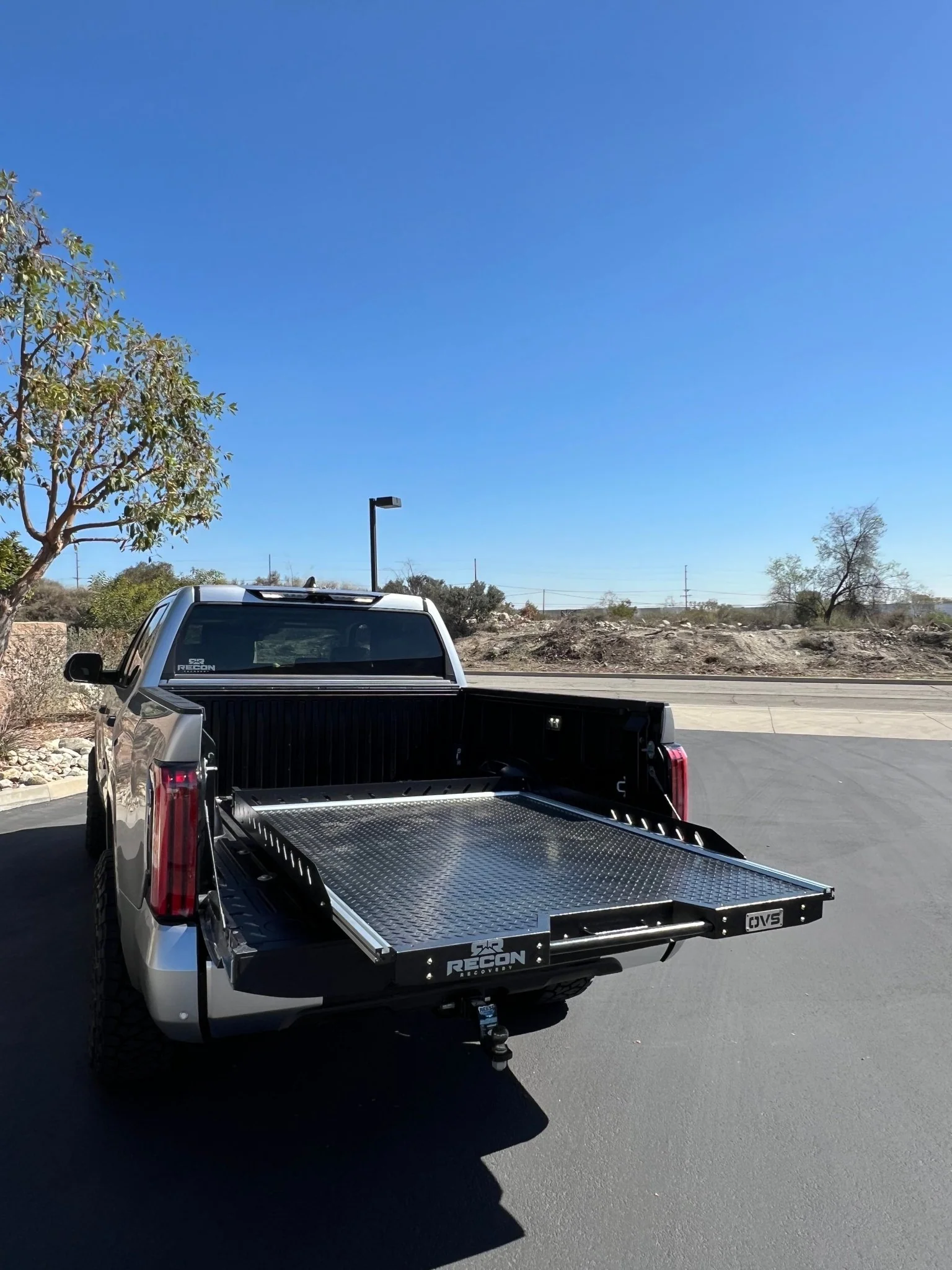

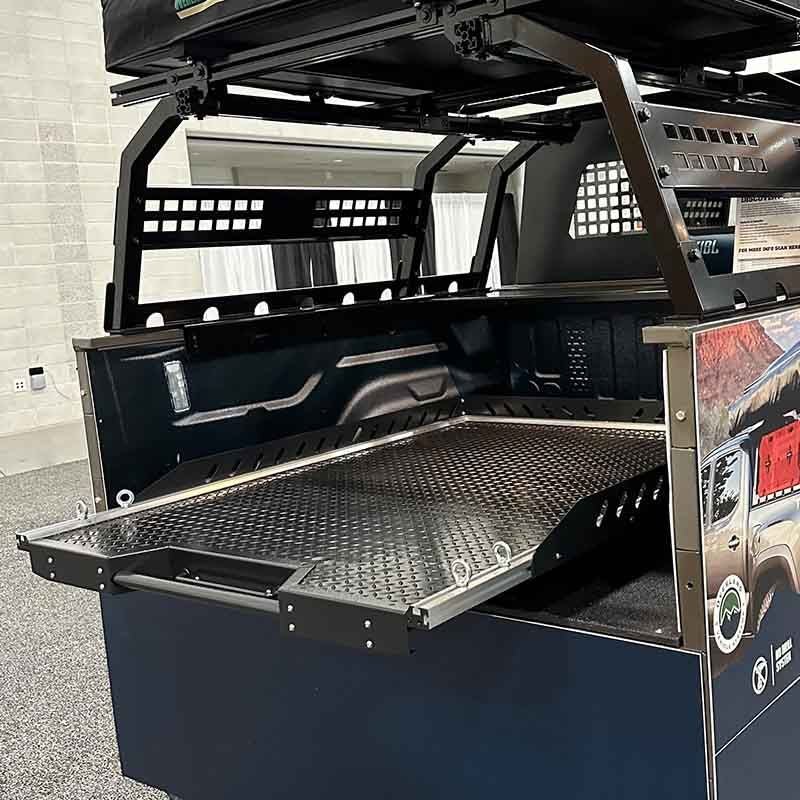

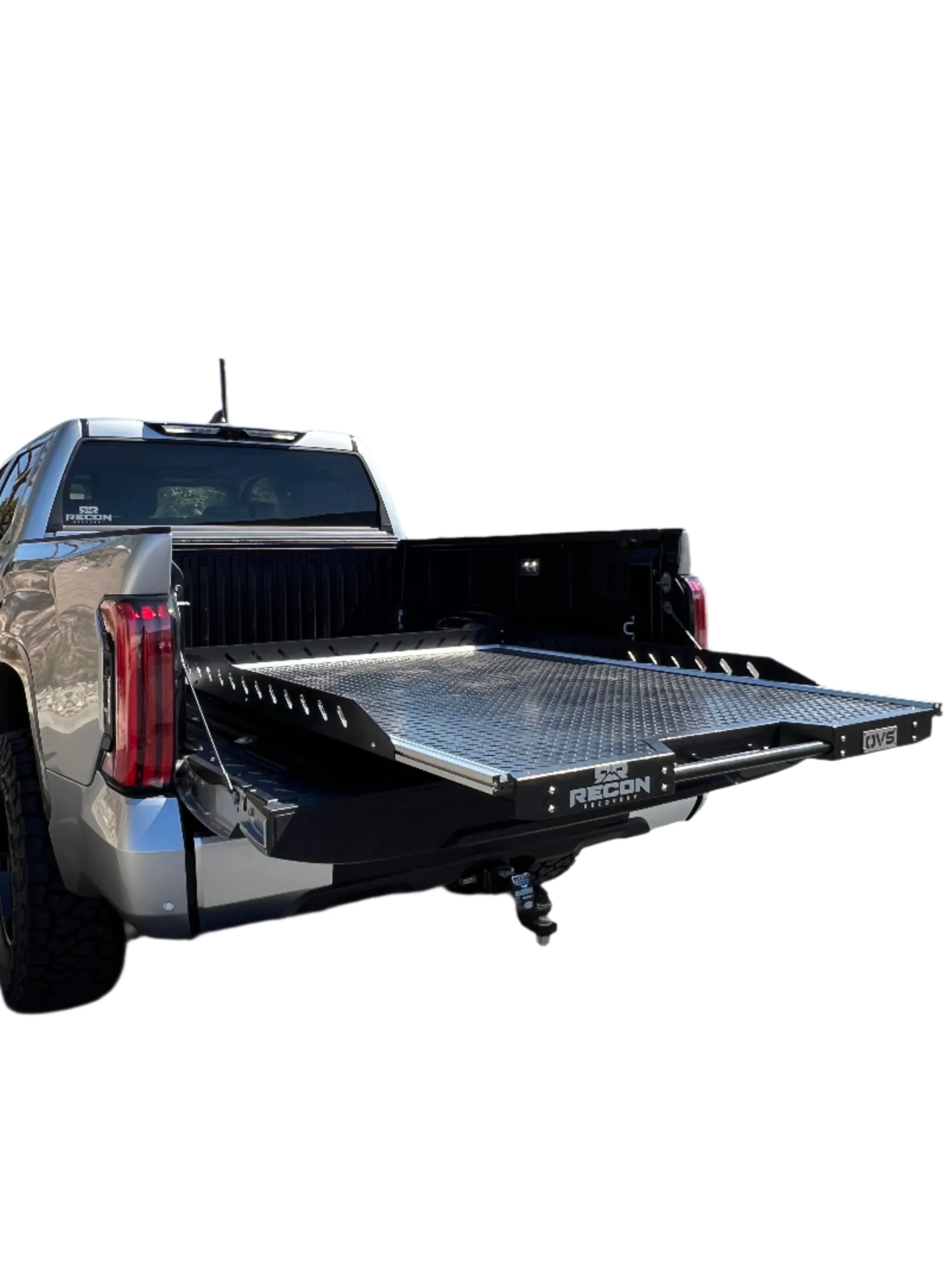

Overland Vehicle Systems Bed Extension – Short Bed Trucks turns your pickup into a true work and adventure platform. This heavy-duty roll-out bed slide delivers 75% extension and up to 1,250 lbs of load capacity, so your gear, tools, and recovery equipment are always within easy reach.
- Fits mid-size and full-size short bed trucks (select 5.0', 5.5', or 6.5' bed length)

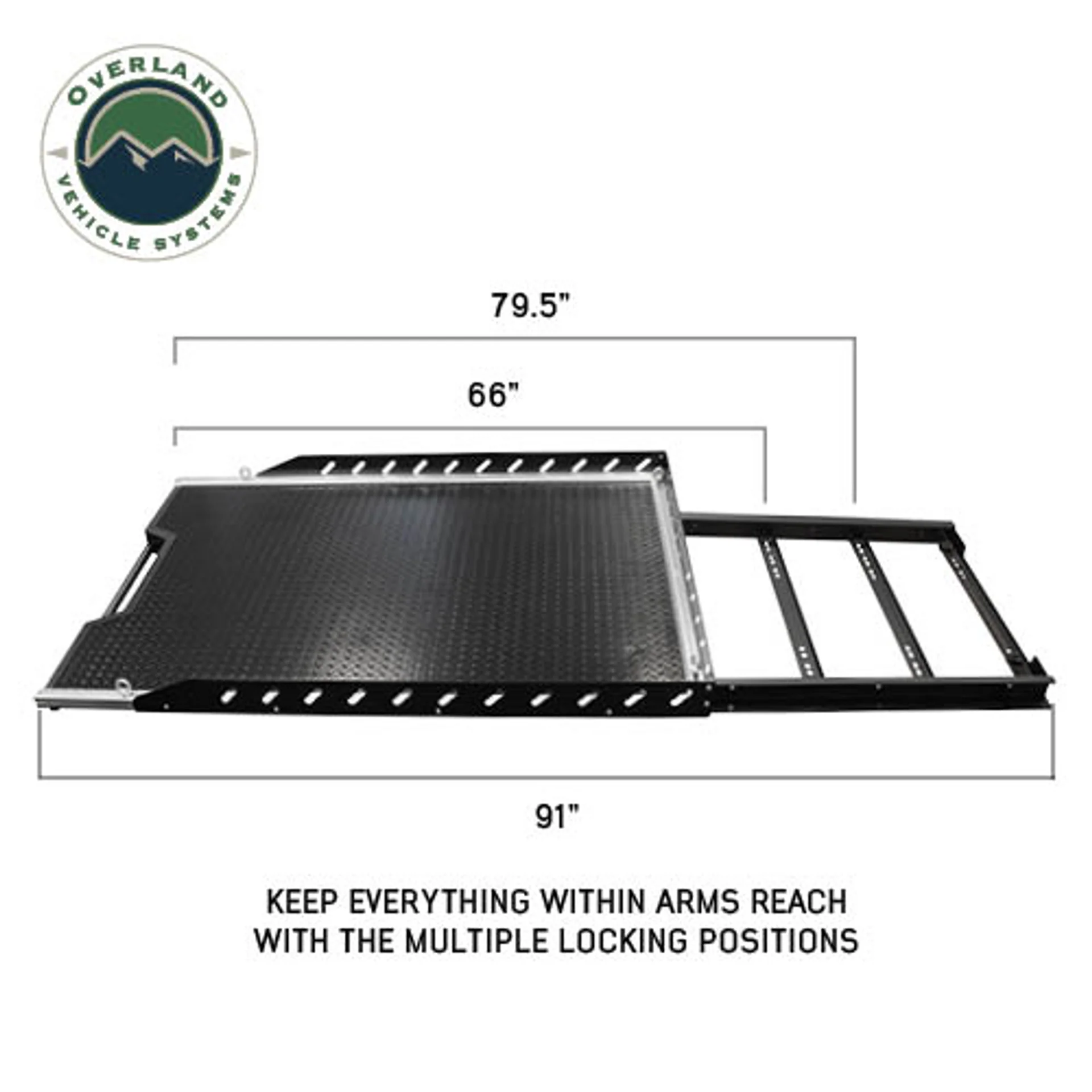

- 75% extension for easy access to cargo at the back of the slide
- 1,250 lb max load capacity (evenly distributed)
- Steel frame construction with a composite base and rubberized diamond-plate style surface
- Dual-spring latch pins lock the bed extension into 3 different positions

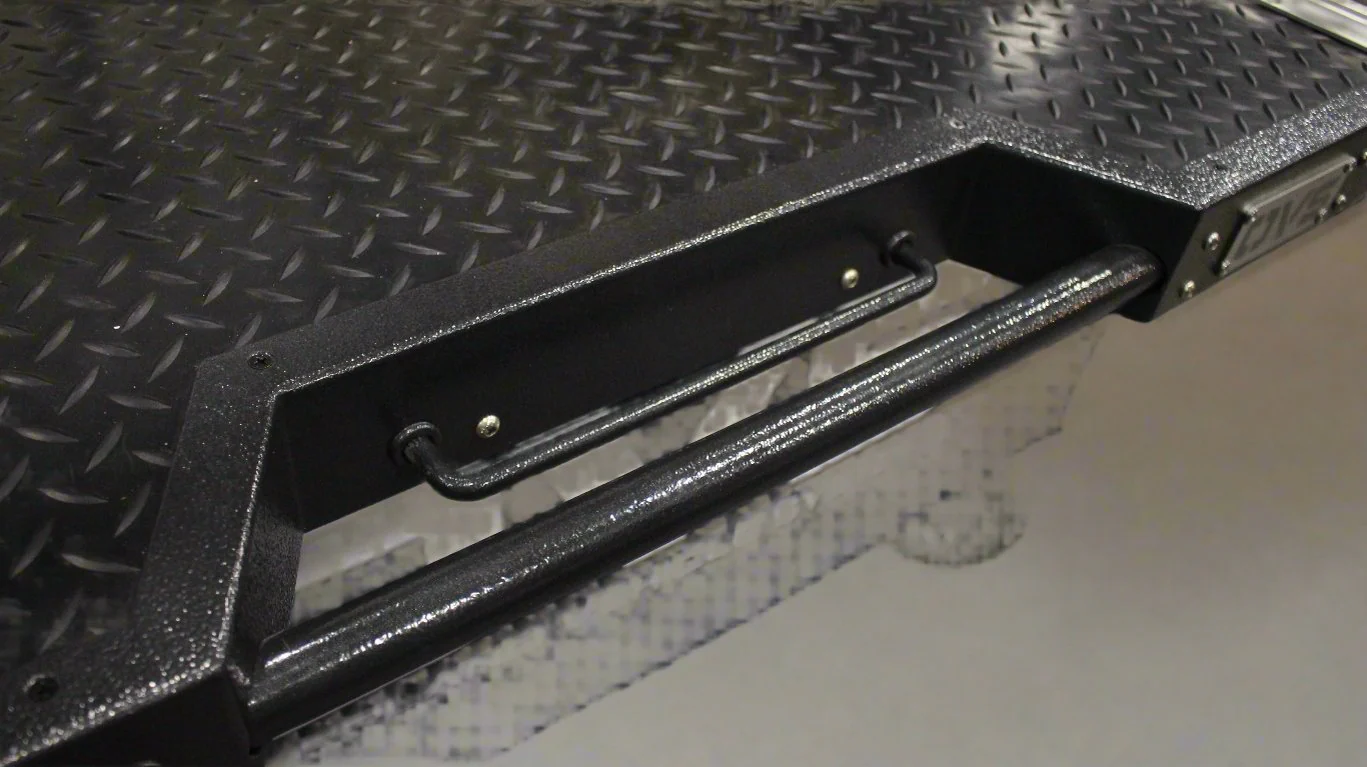

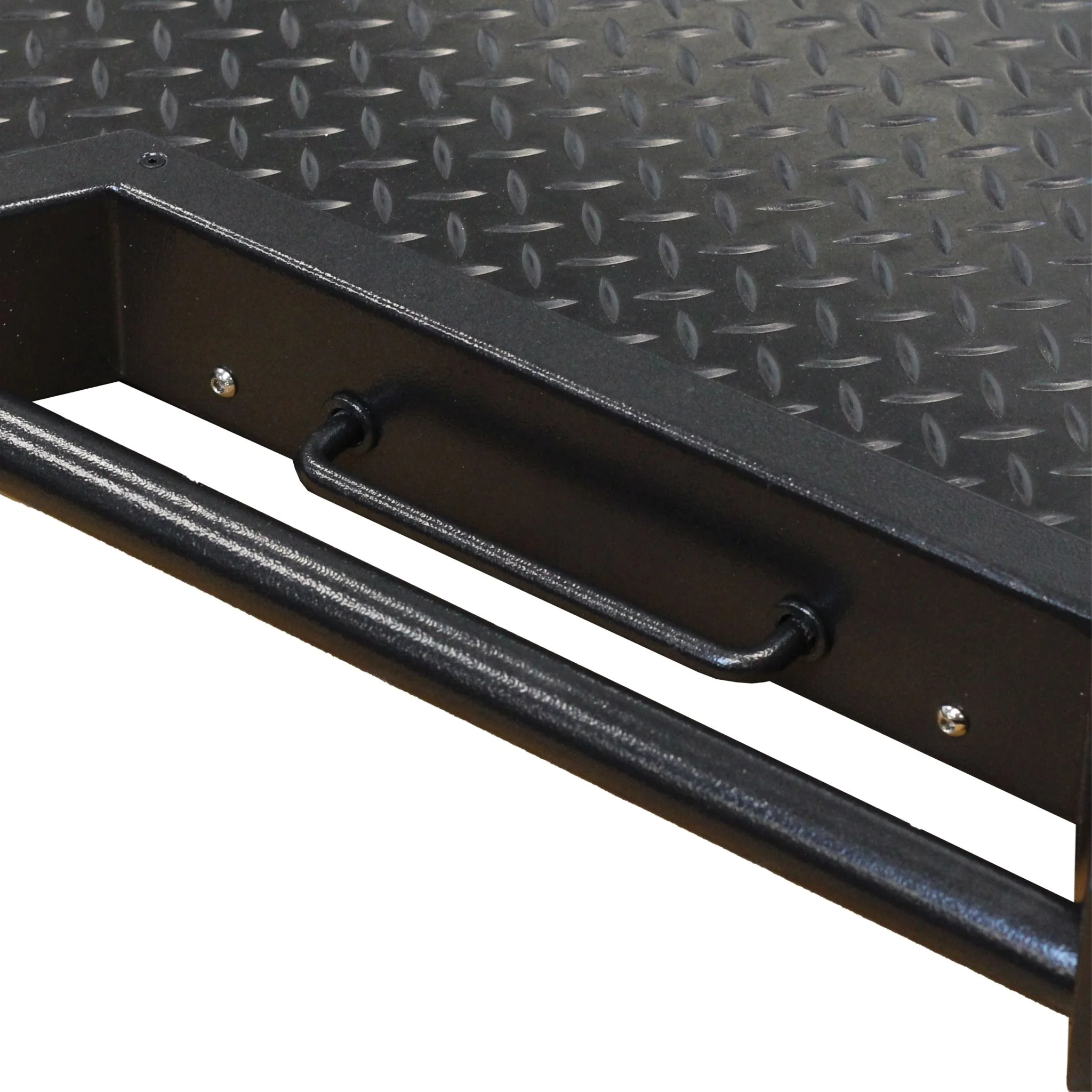

- Single-pull ergonomic handle for smooth, one-handed operation
- Multiple anchor points and T-rail with adjustable tie-down rings for securing cargo
- Pre-assembled unit helps reduce installation time

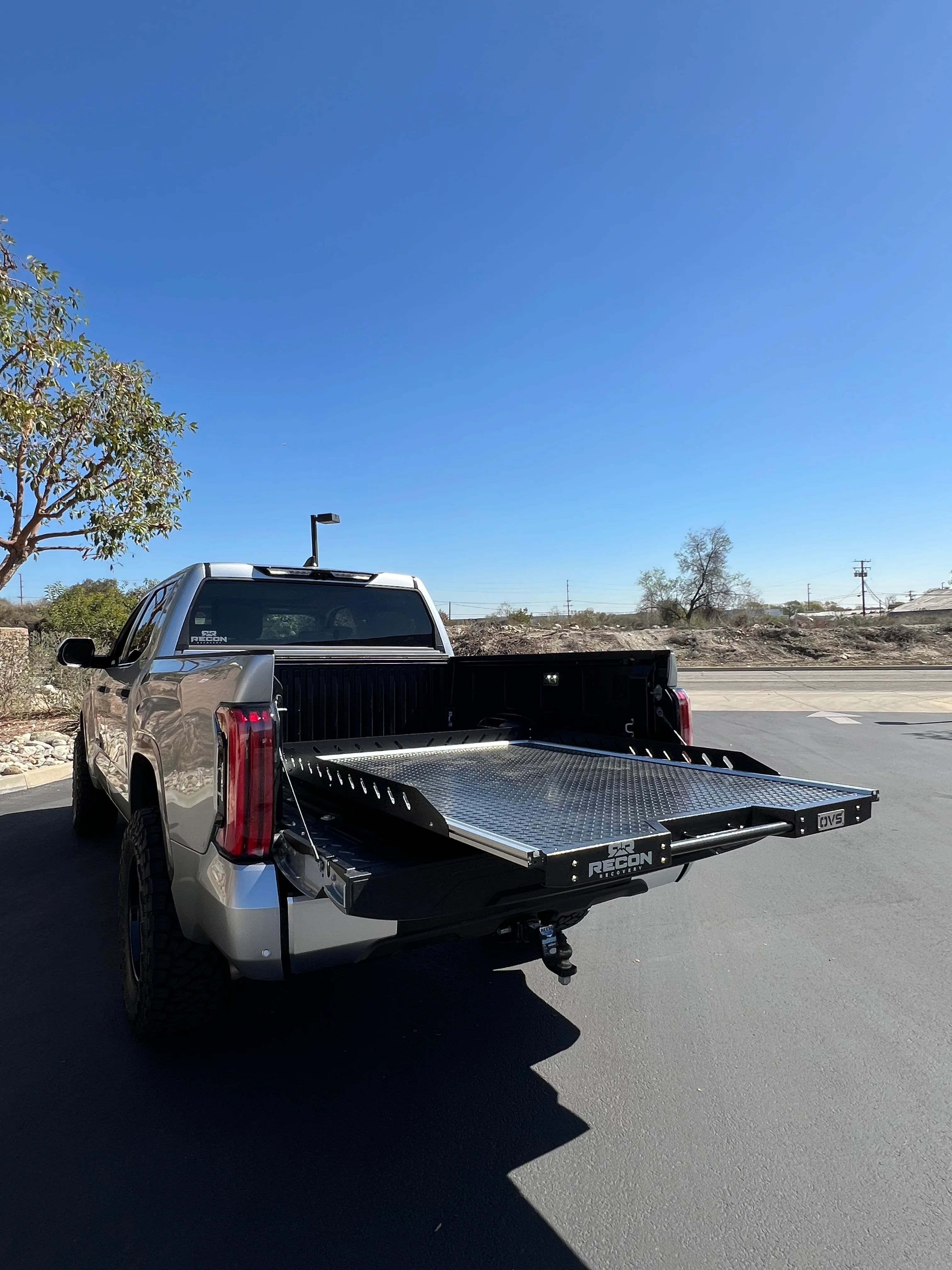

Turn Your Short Bed into a Full-Use Workspace

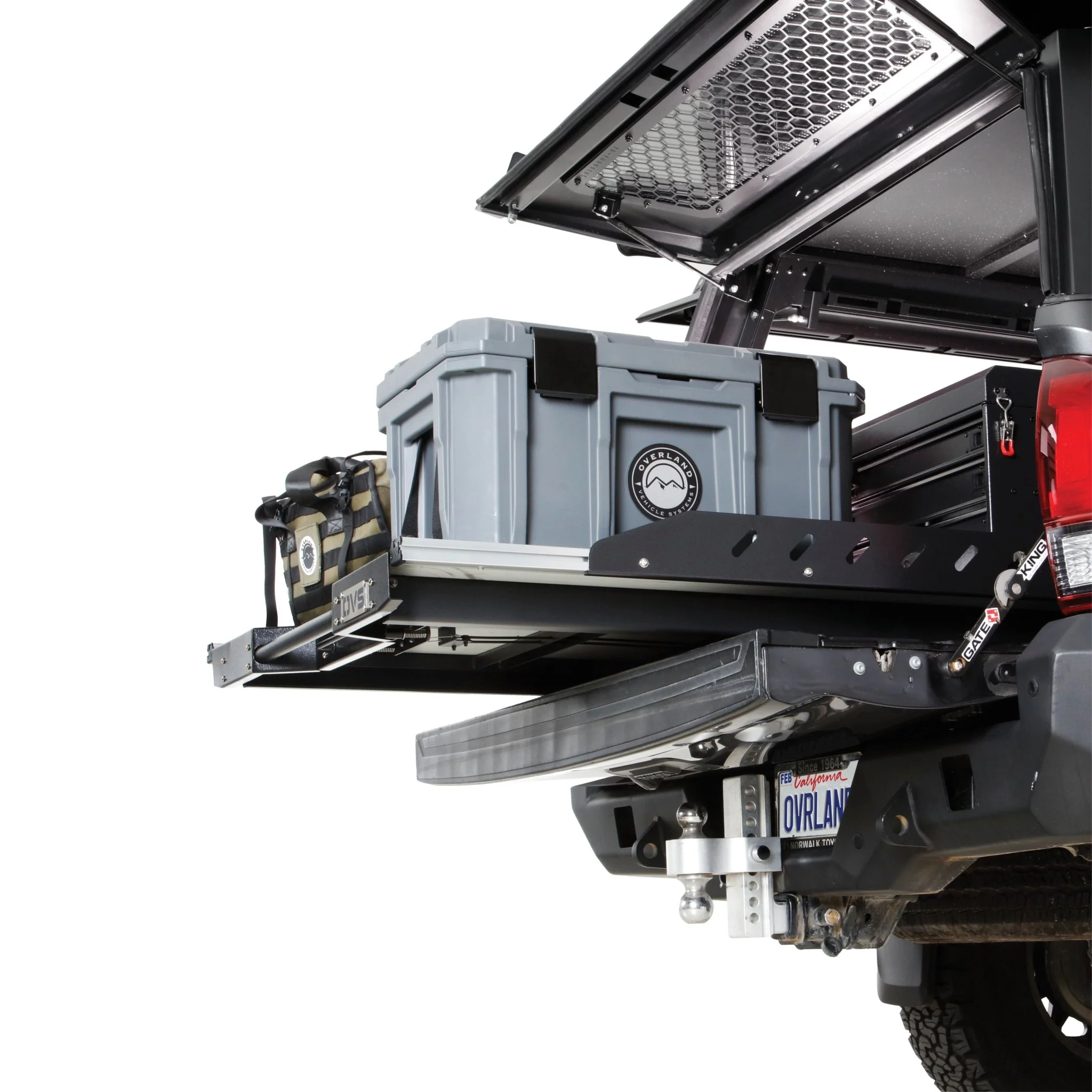

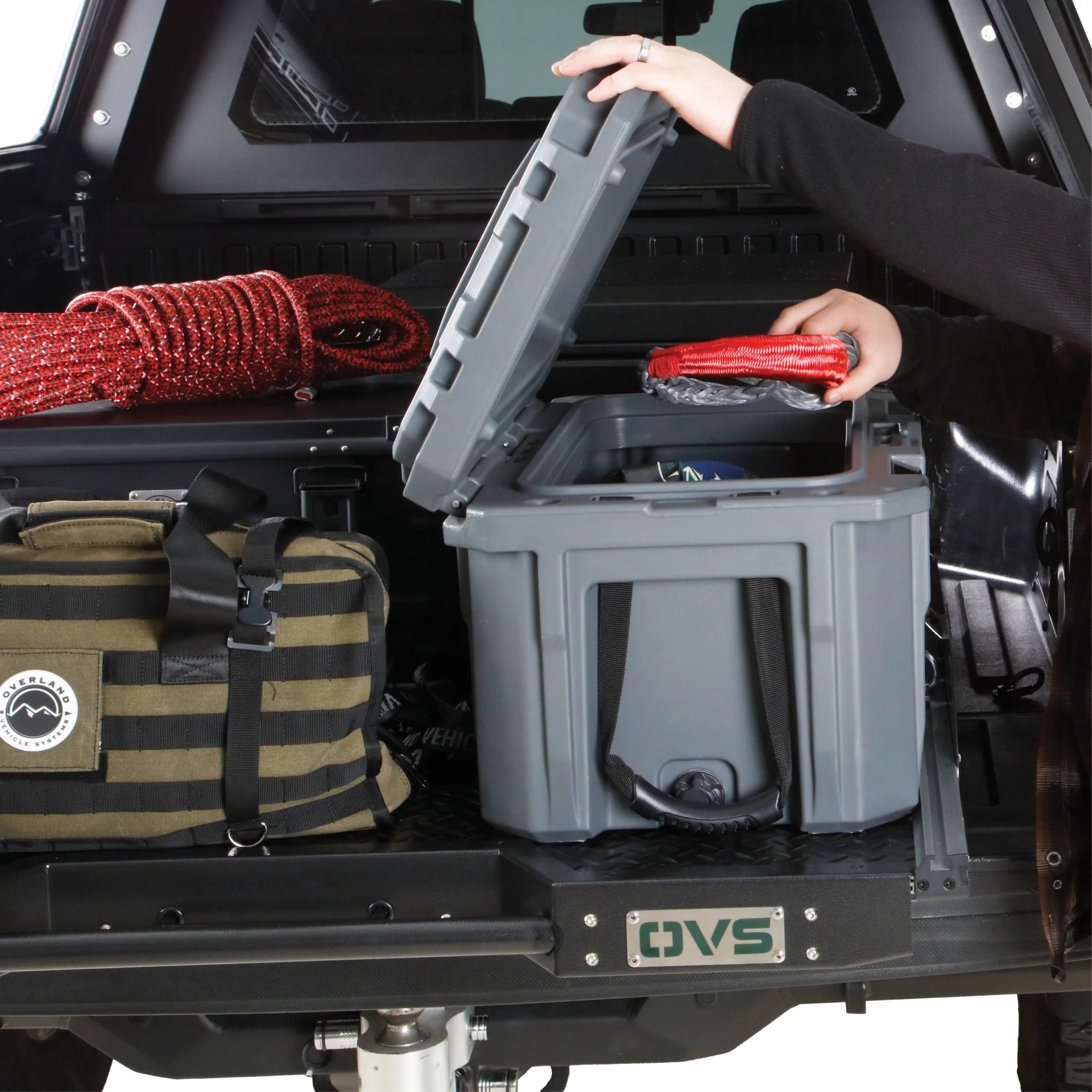

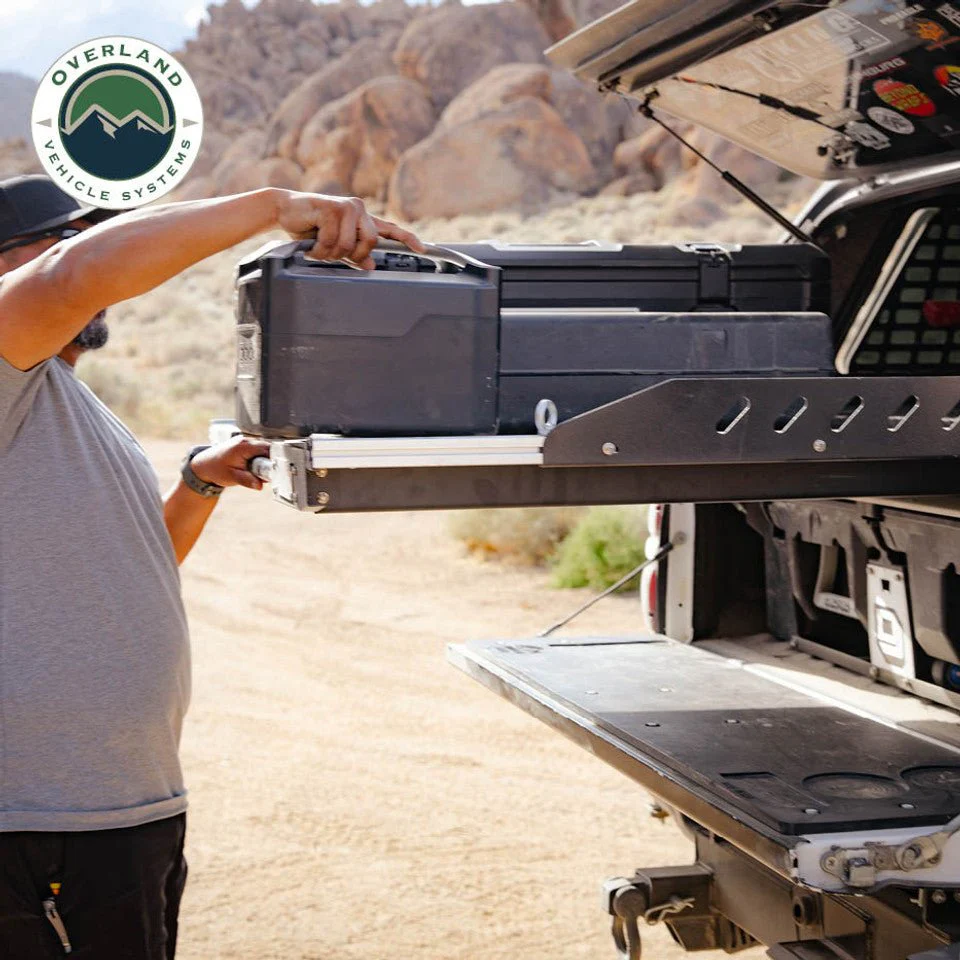

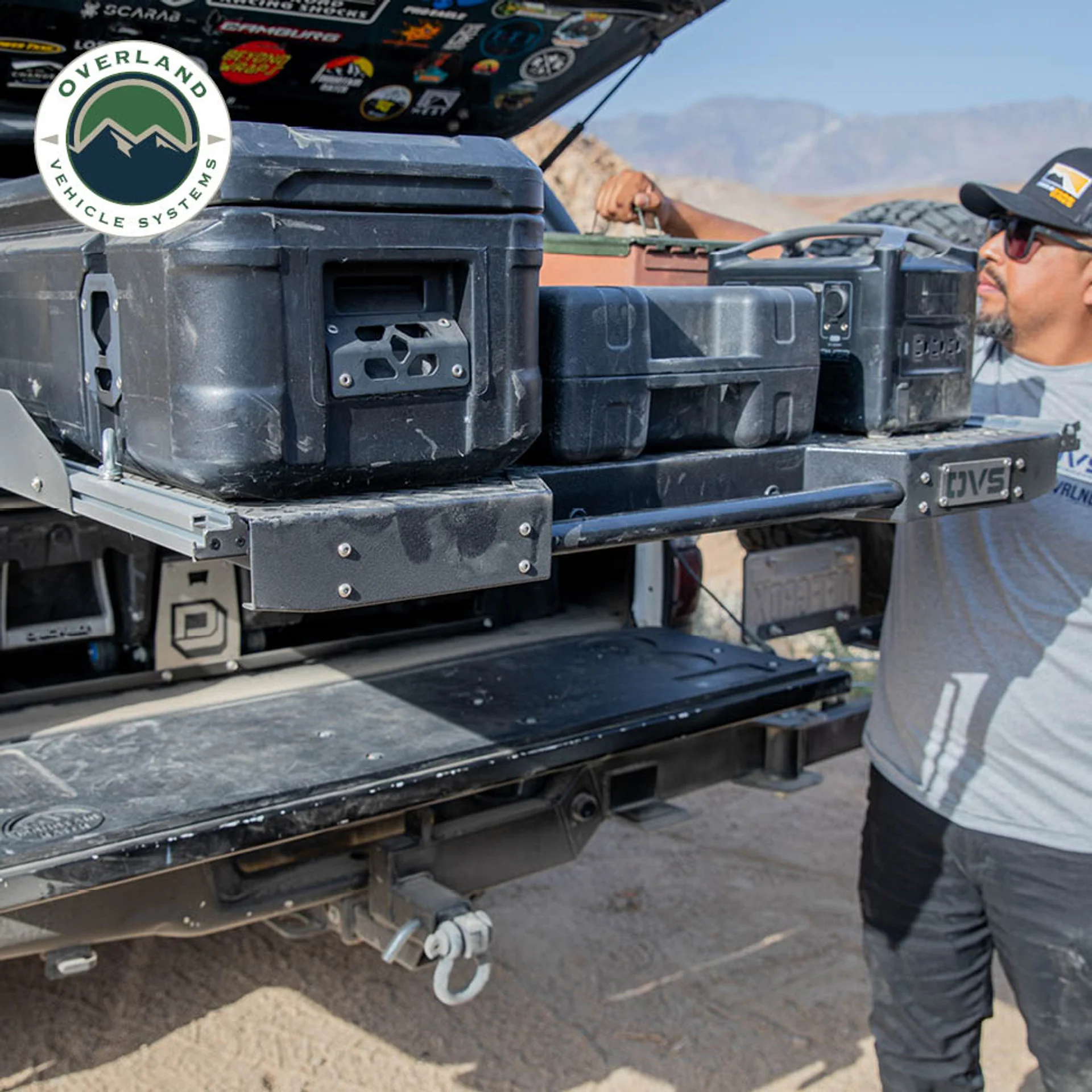

Short beds are great for daily driving—but not always for loading and unloading heavy gear. This Overland Vehicle Systems Bed Extension fixes that. Slide your cargo out toward you instead of climbing into the bed, making it easier to access tools, fridges, water tanks, recovery gear, and camping equipment. With multiple locking positions and a serious 1,250 lb rating, it’s built for both job sites and off-grid weekends.
Key Features

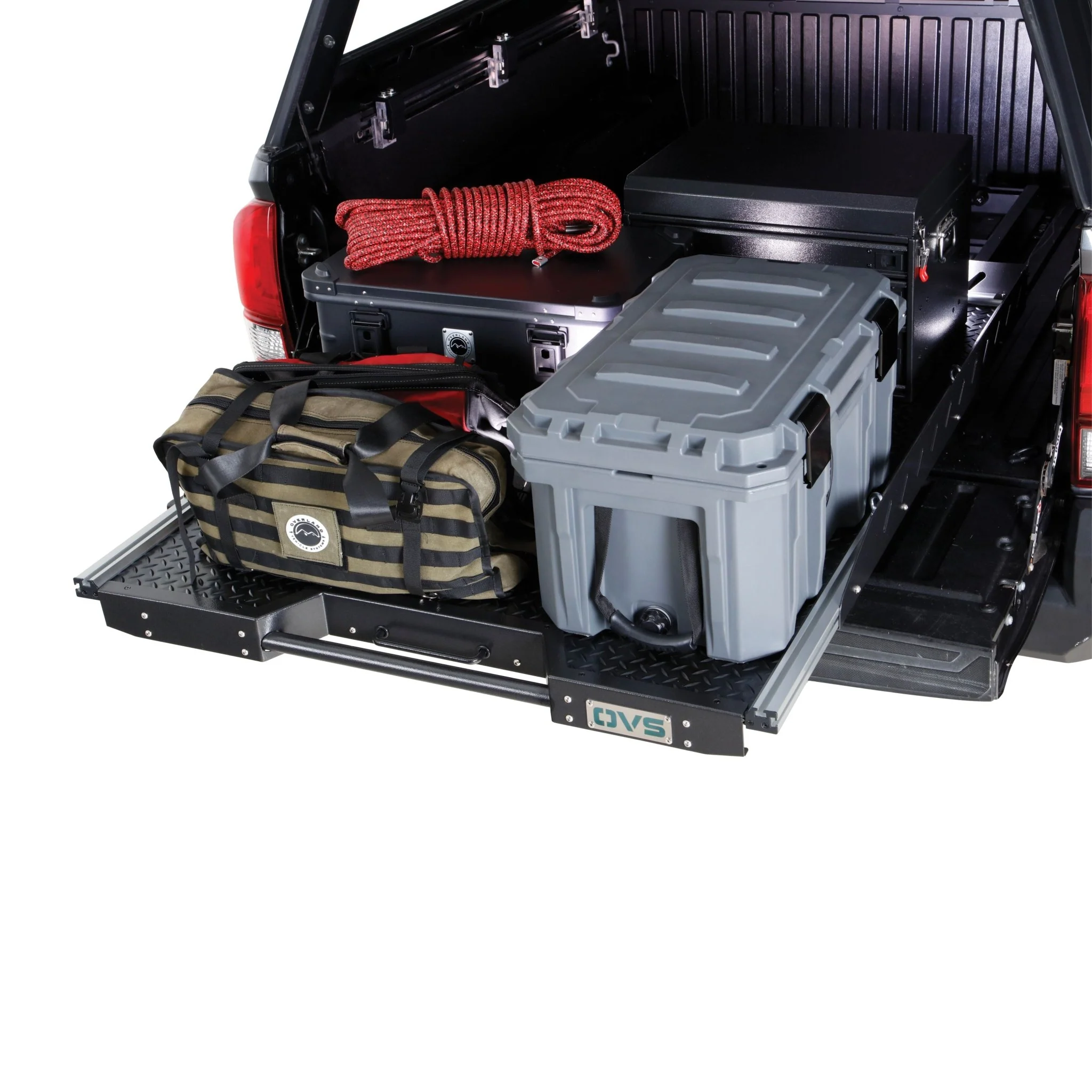

- 75% Slide-Out Extension: Brings your cargo toward you so you’re not crawling into the bed to reach items at the front.

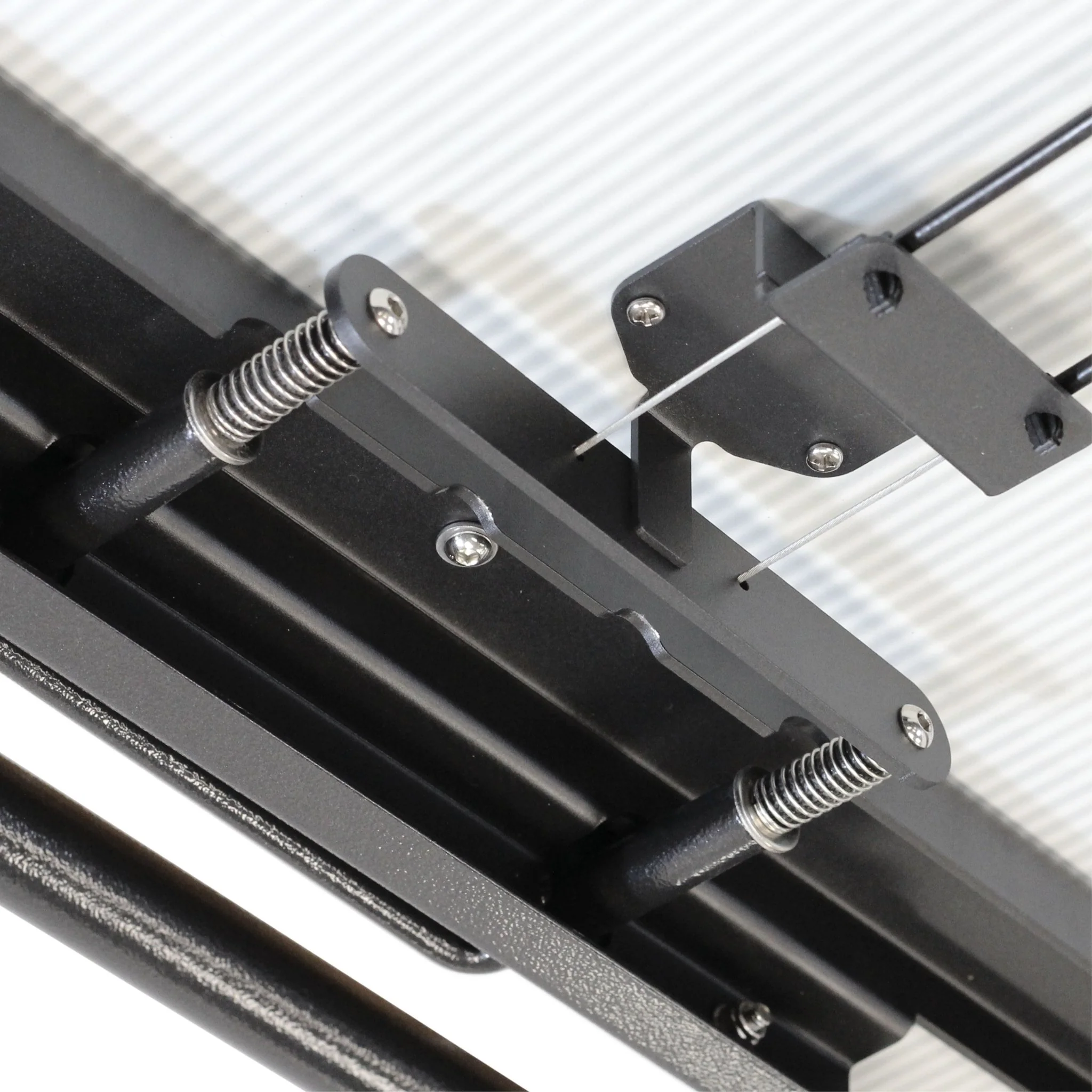

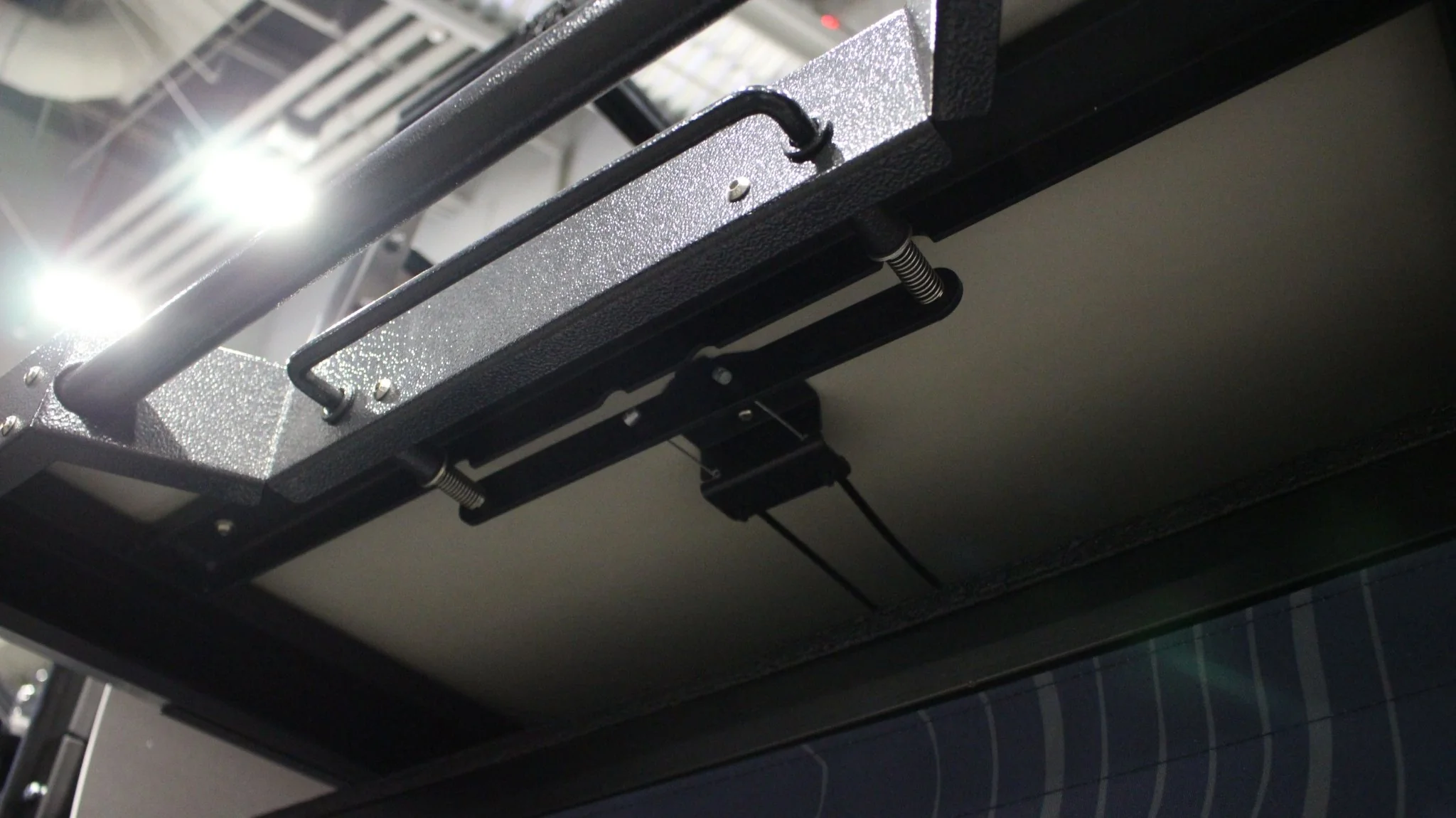

- Three Locking Positions: Dual-spring latch pins allow you to secure the slide at three different lengths for flexible loading.

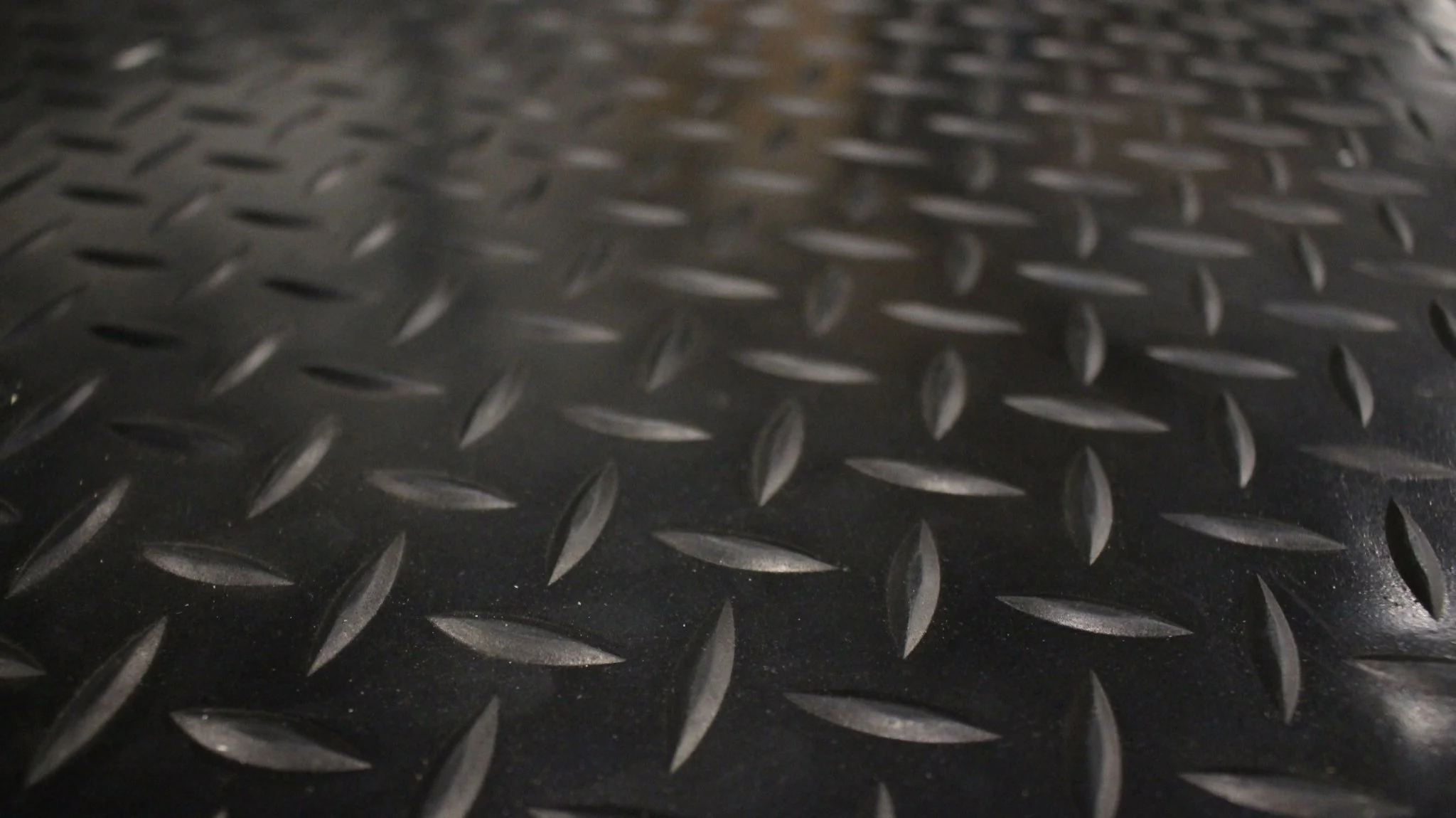

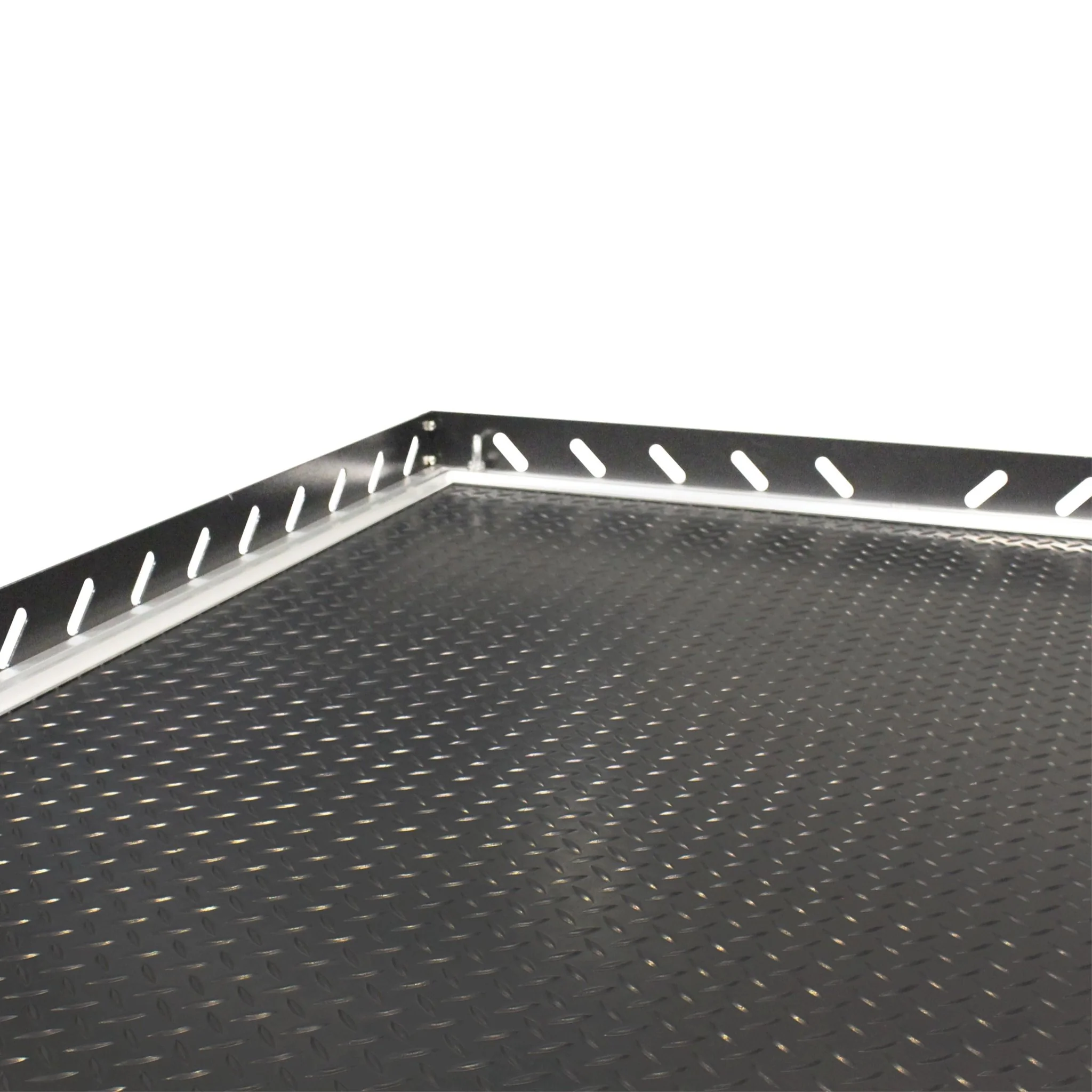

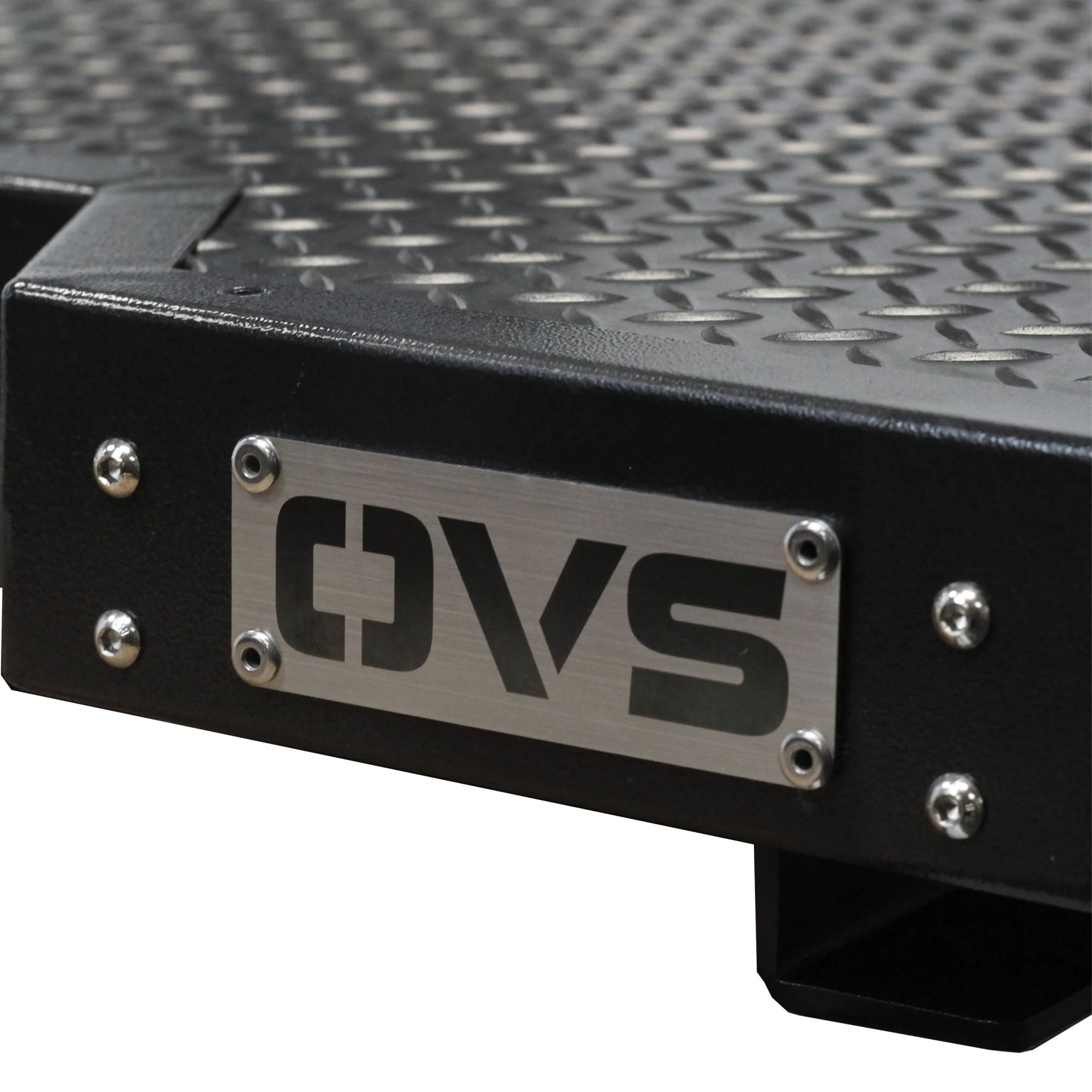

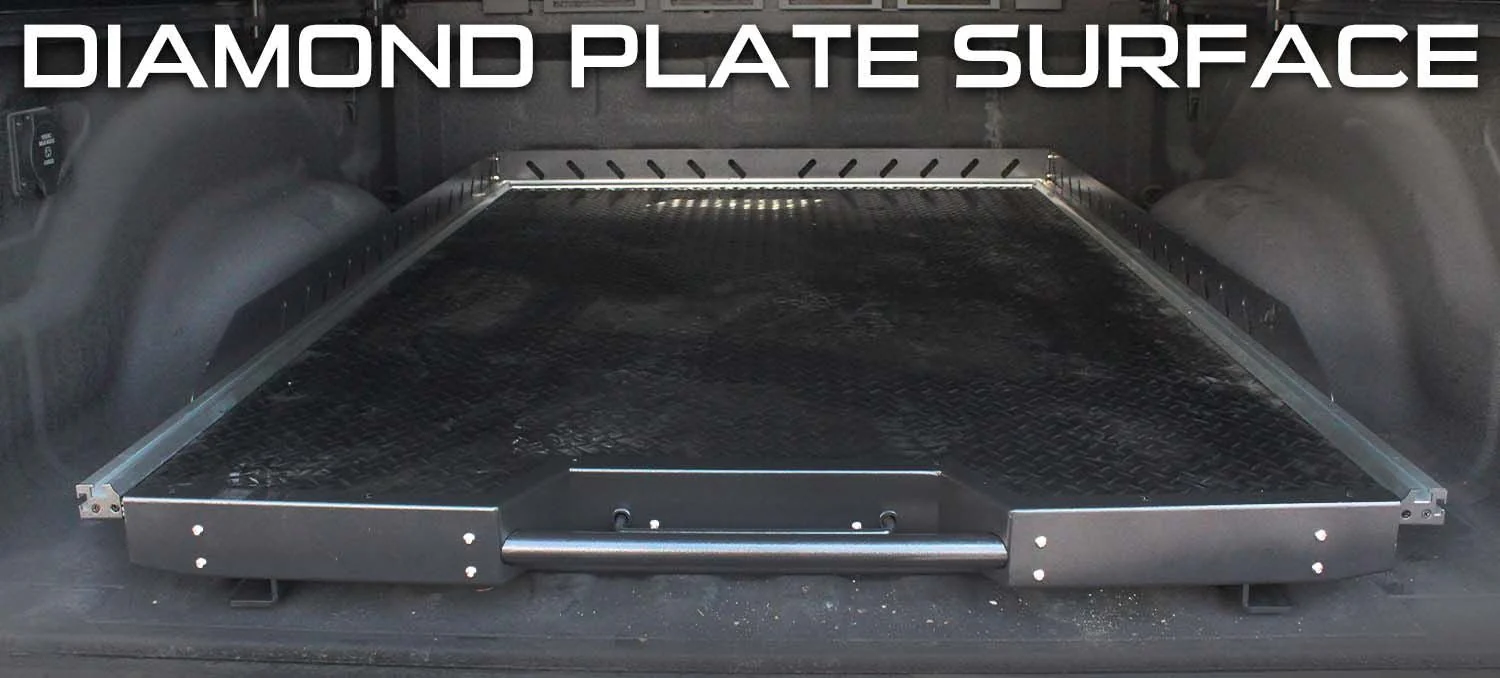

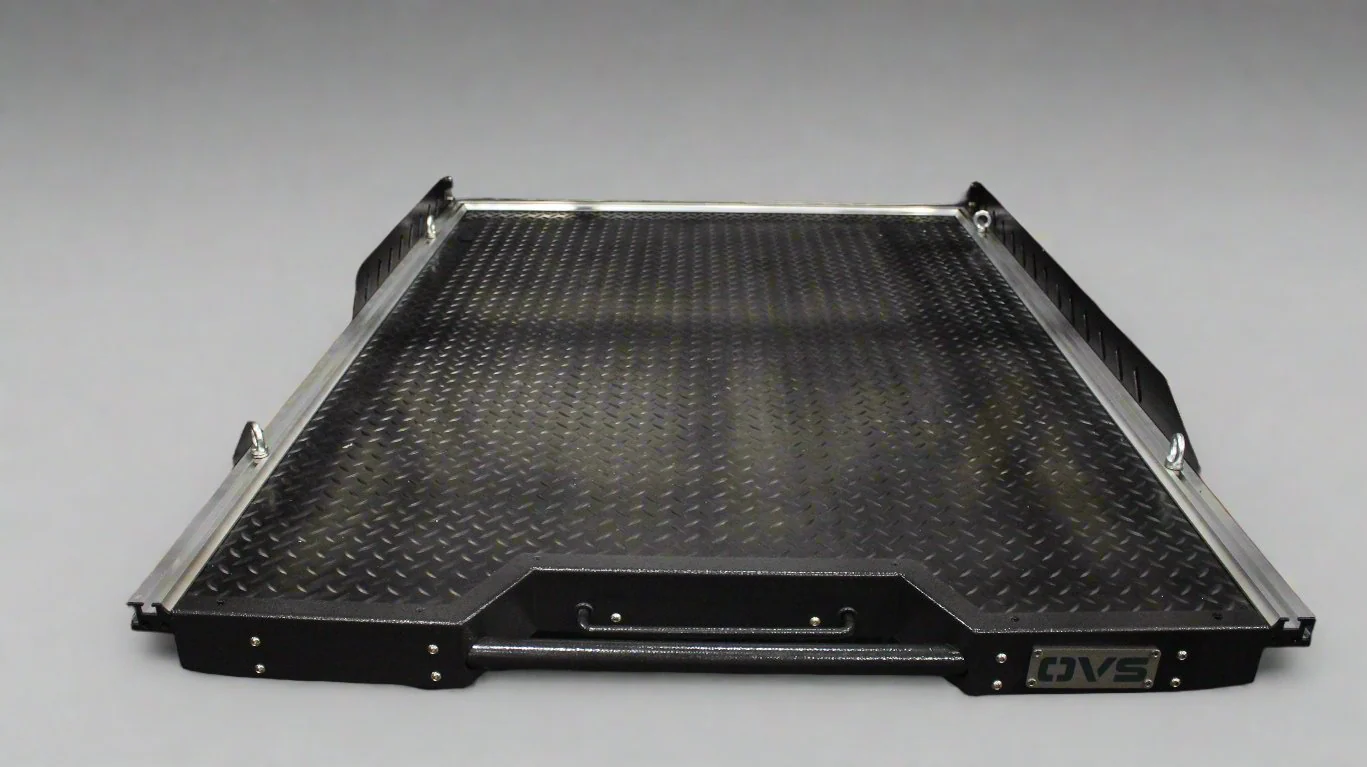

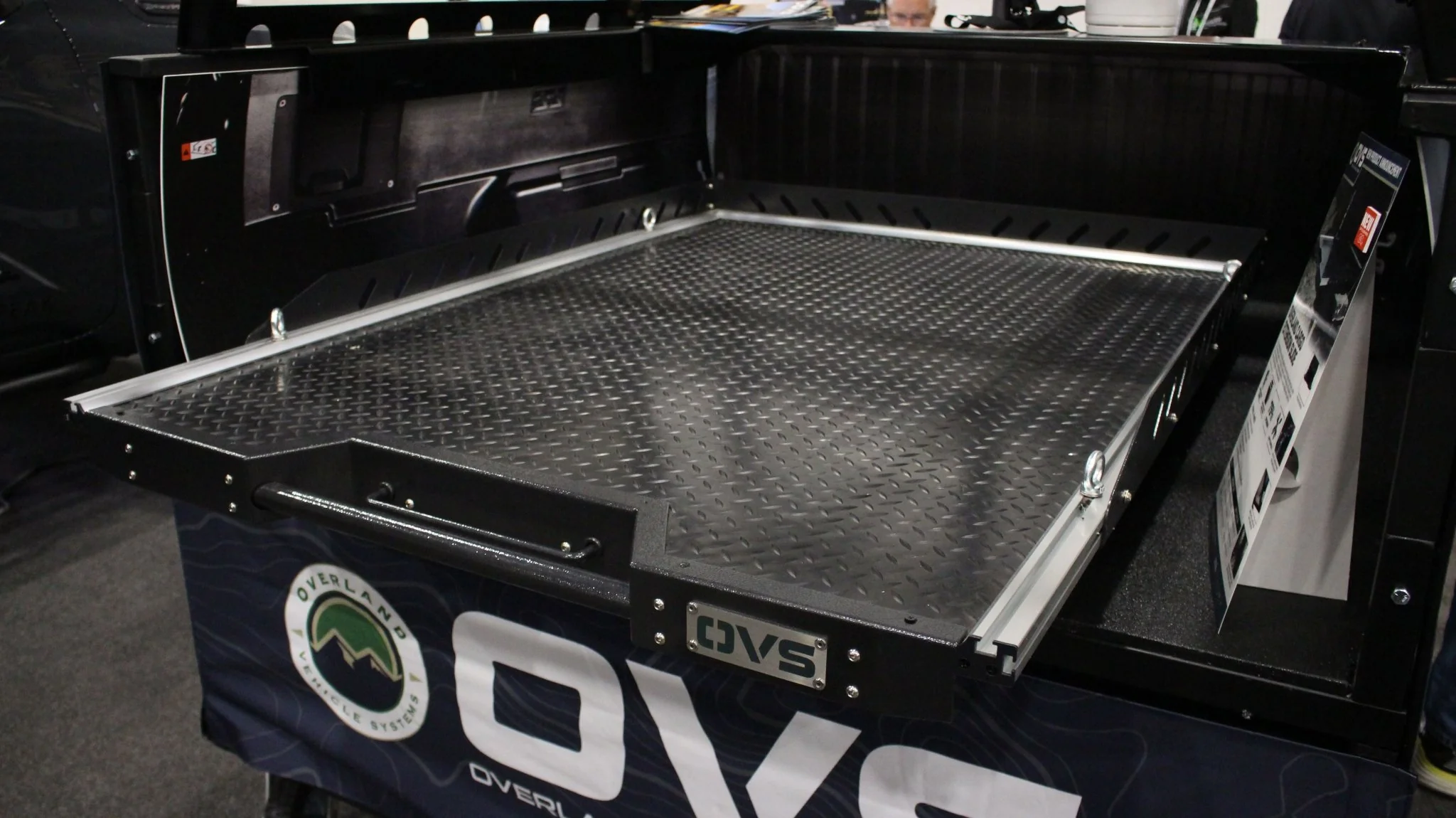

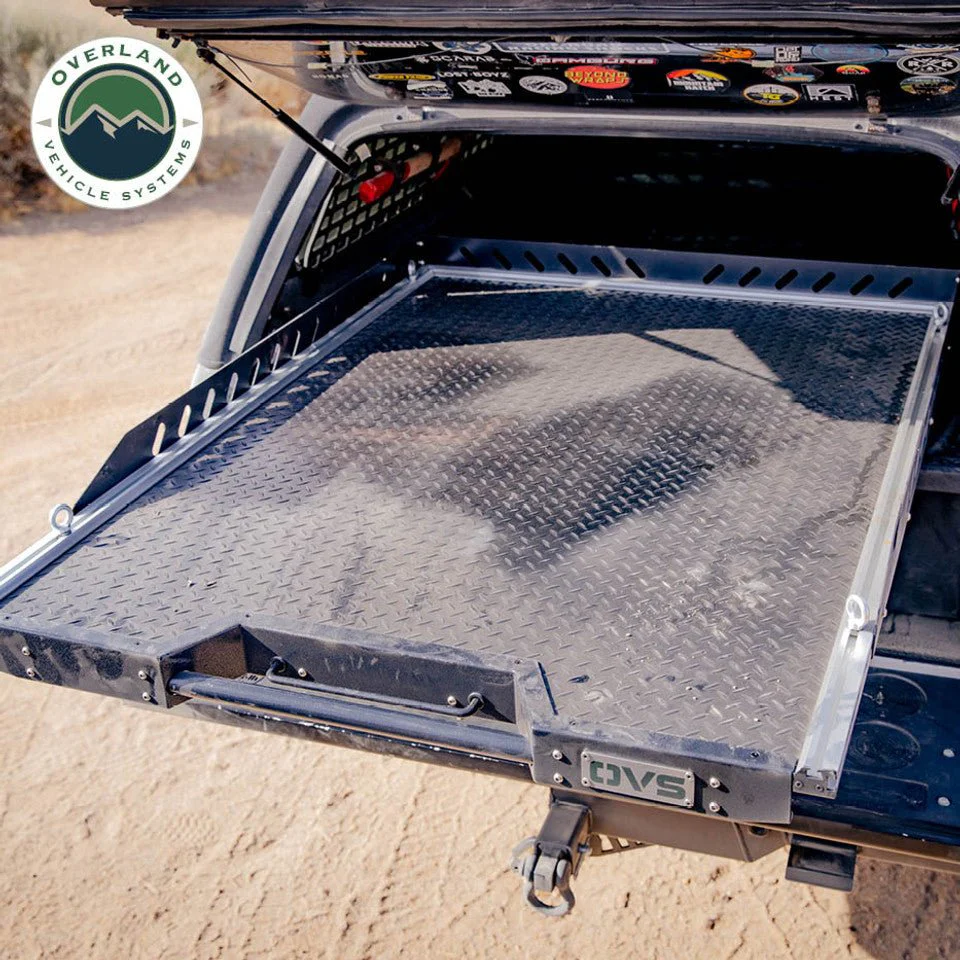

- Heavy-Duty Construction: Steel frame, composite base, and rubberized diamond-plate style surface provide durability, grip, and easy clean-up.

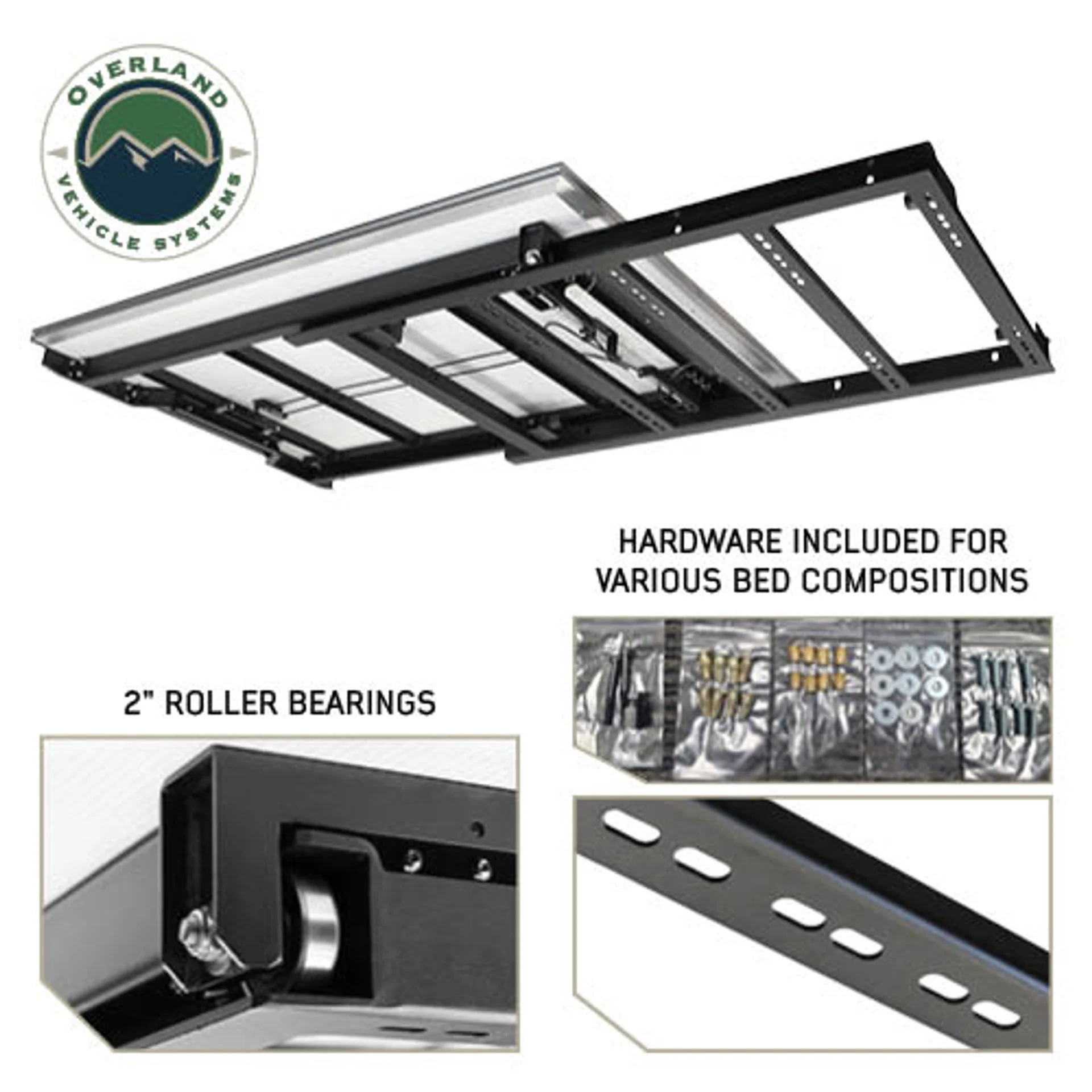

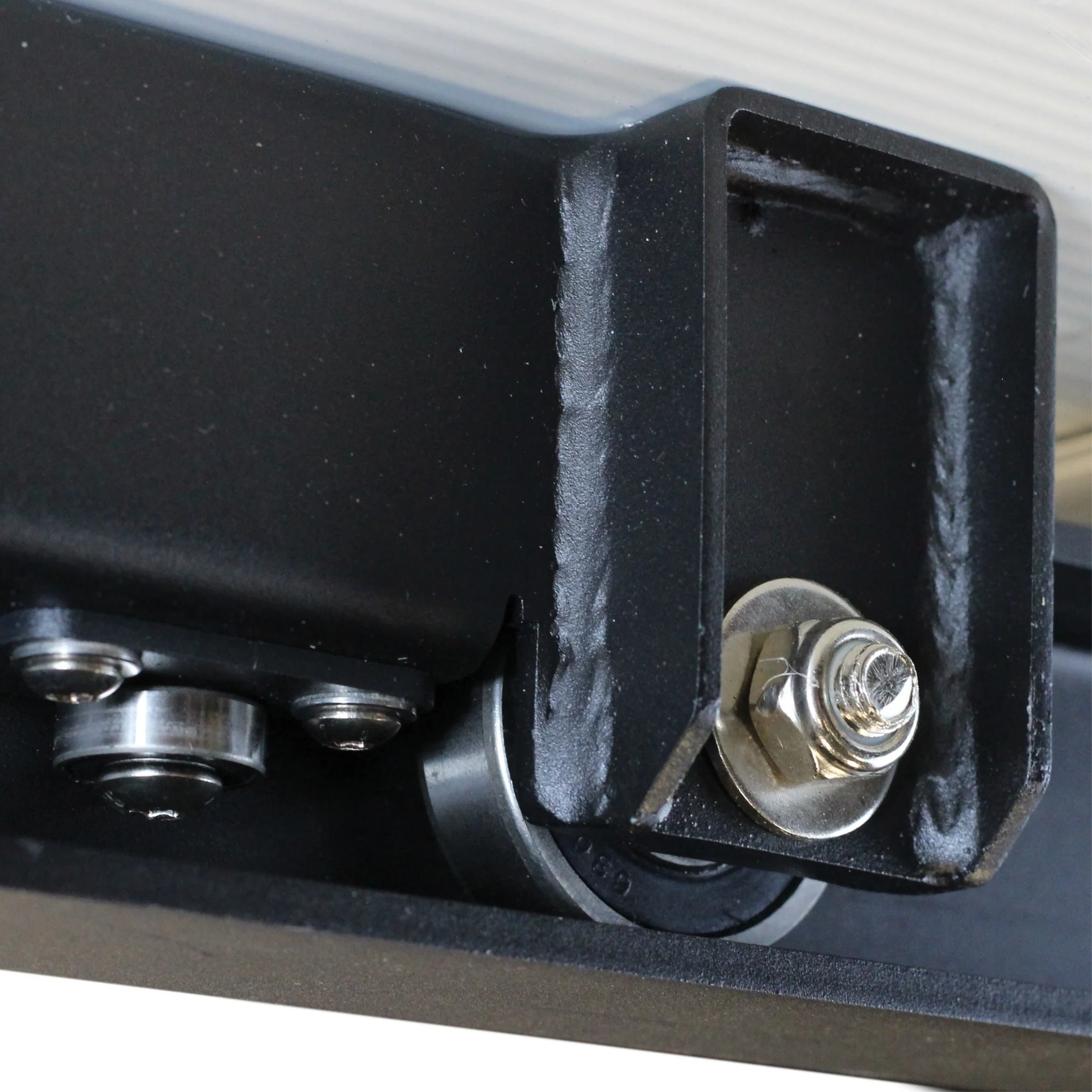

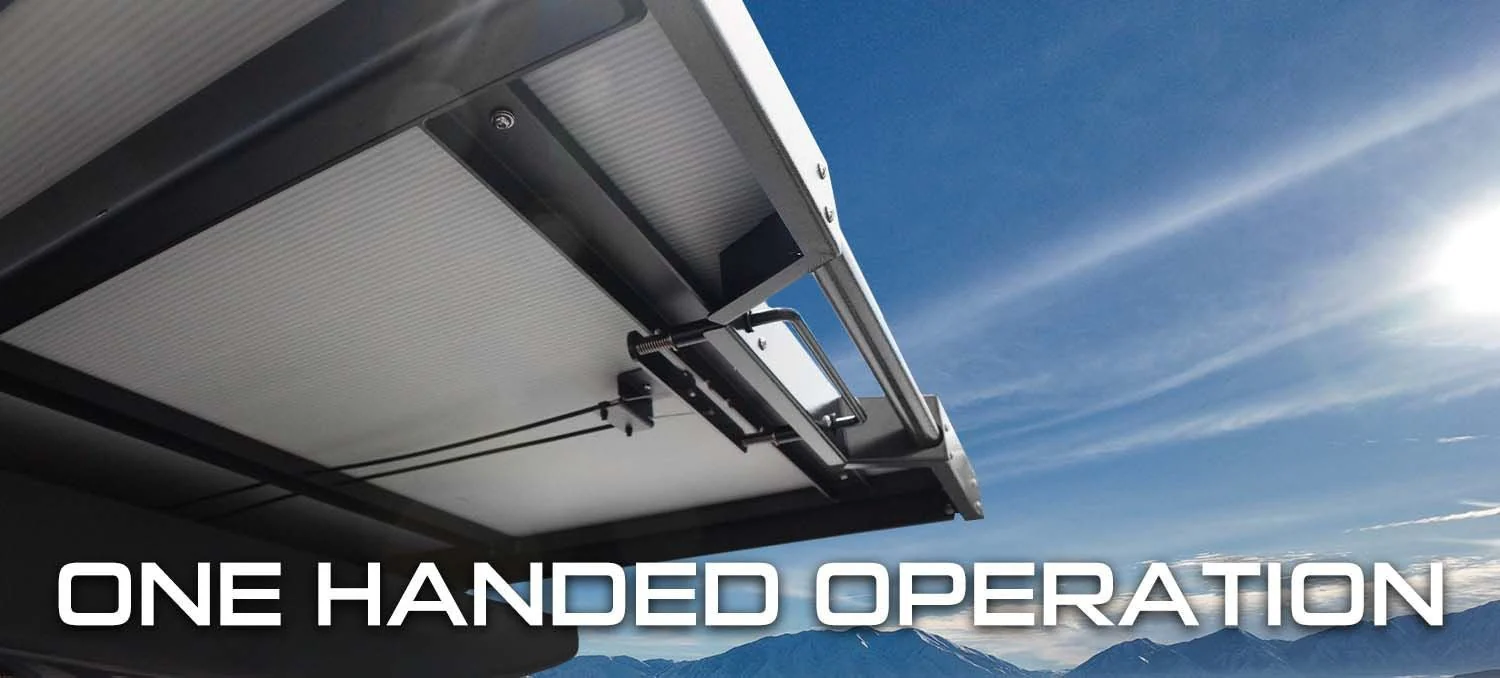

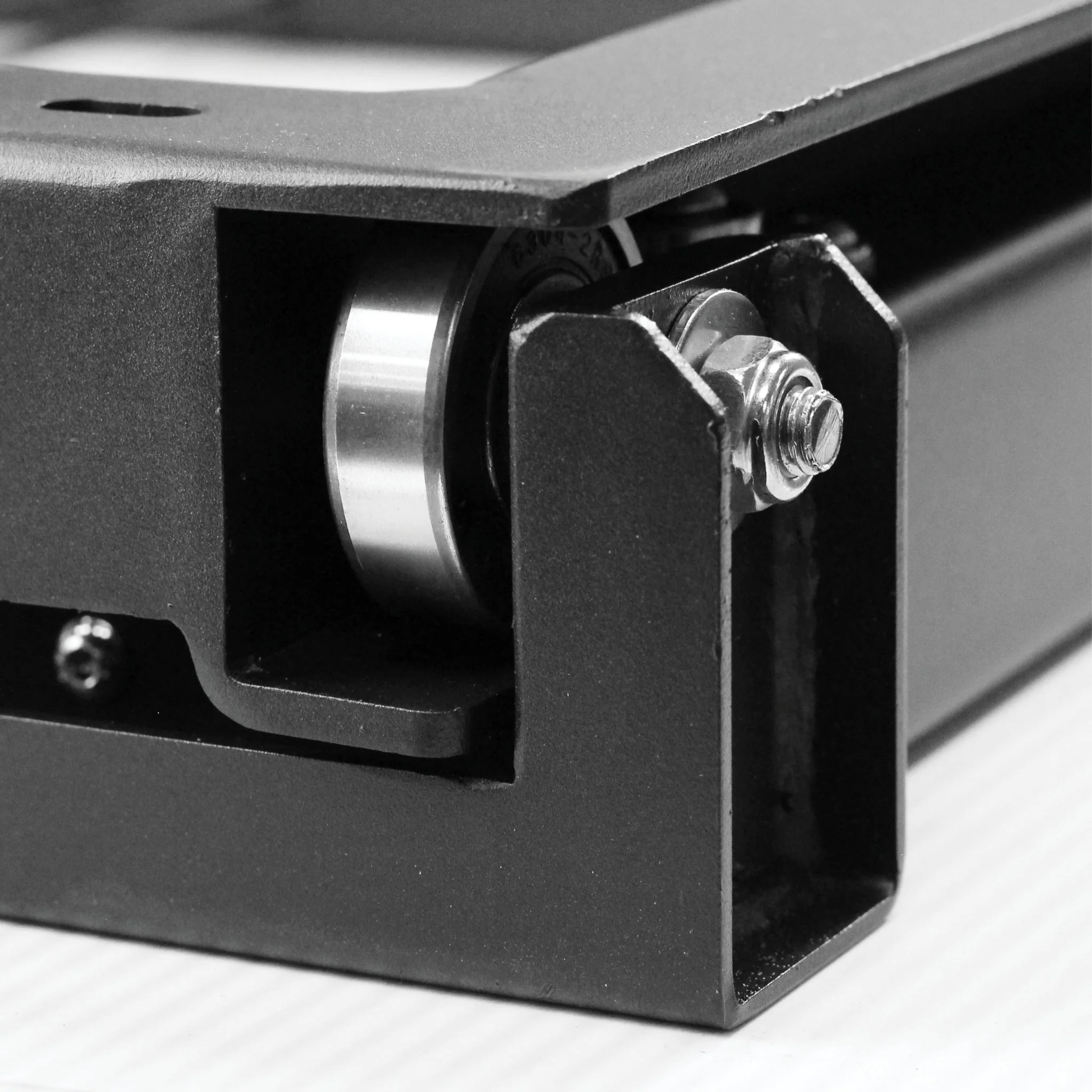

- Ergonomic Operation: Single-pull latch and 2" roller bearings make opening and closing smooth and controlled.

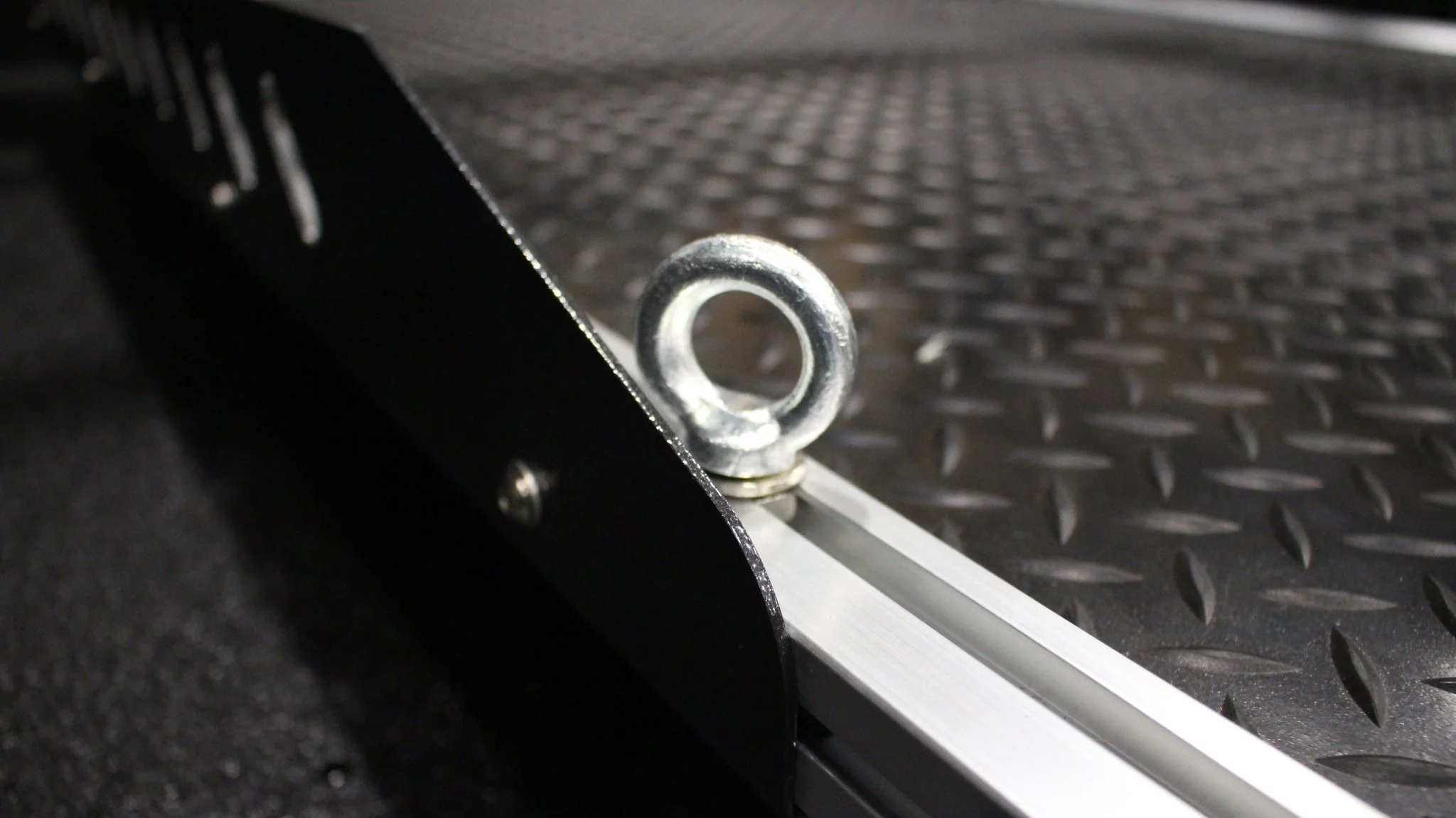

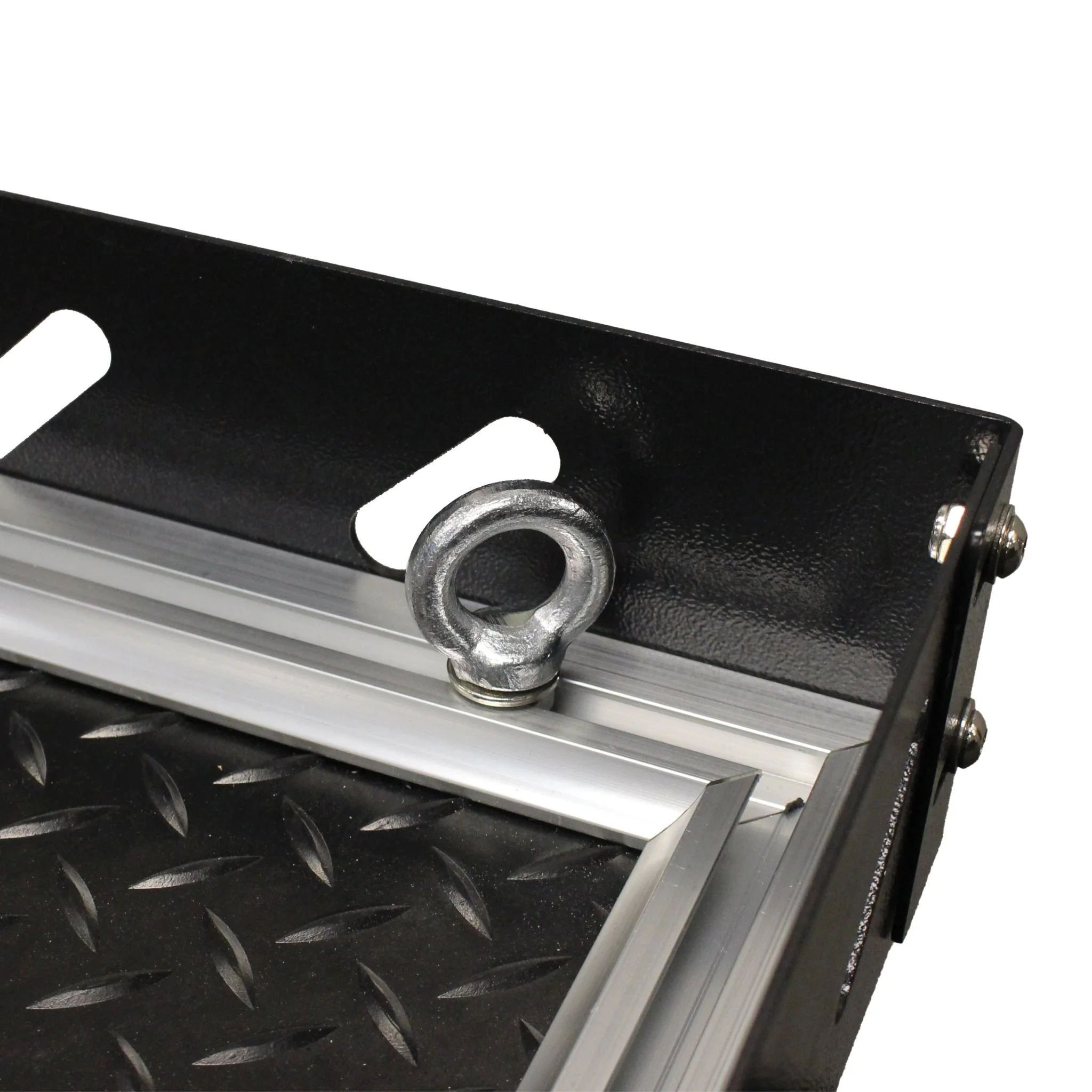

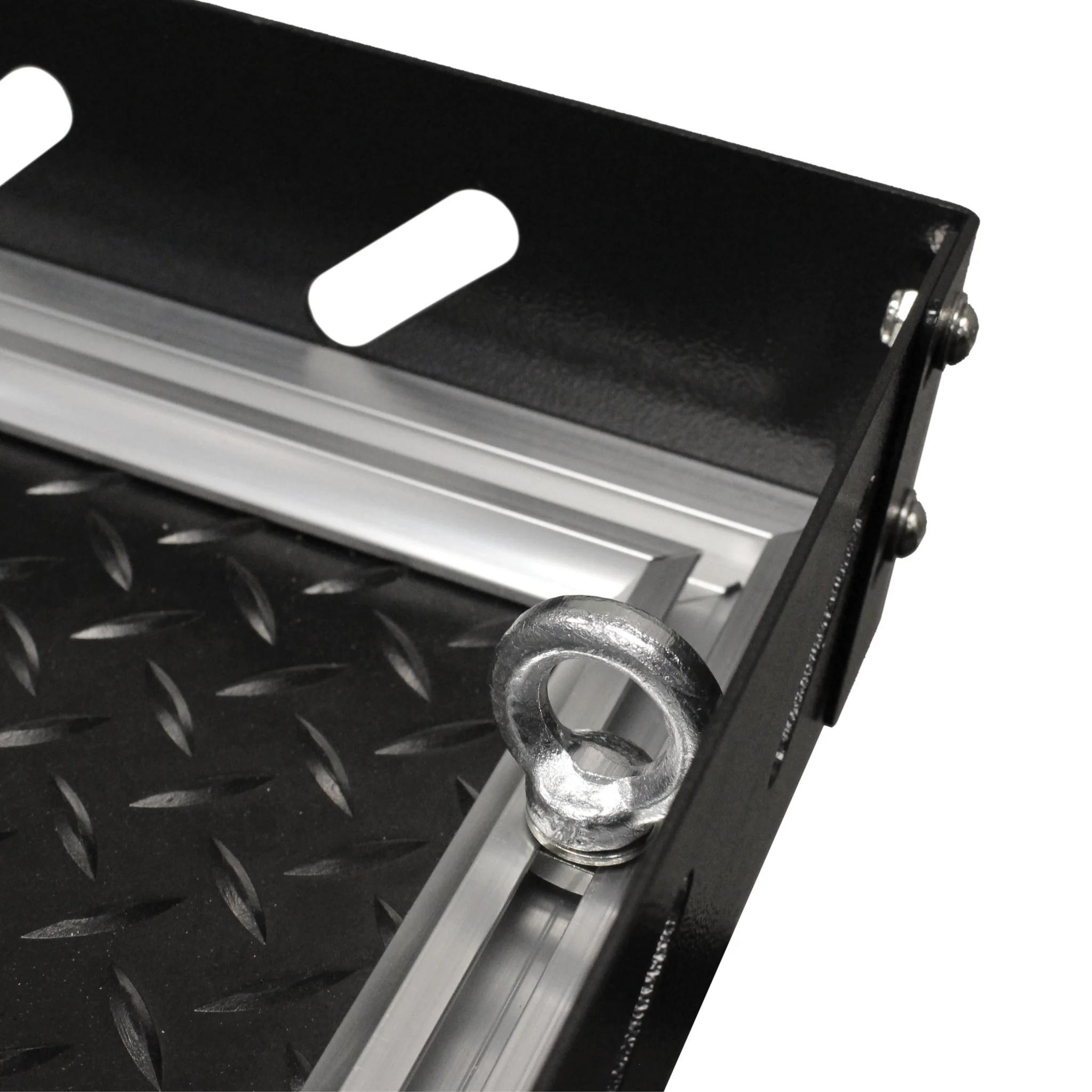

- Cargo Management: Multiple anchor points, removable guard rail, and T-rail with adjustable tie-down rings keep cargo locked down.
Specifications
| Extension | 75% bed slide extension |
| Max Load Capacity | 1,250 lbs (evenly distributed) |

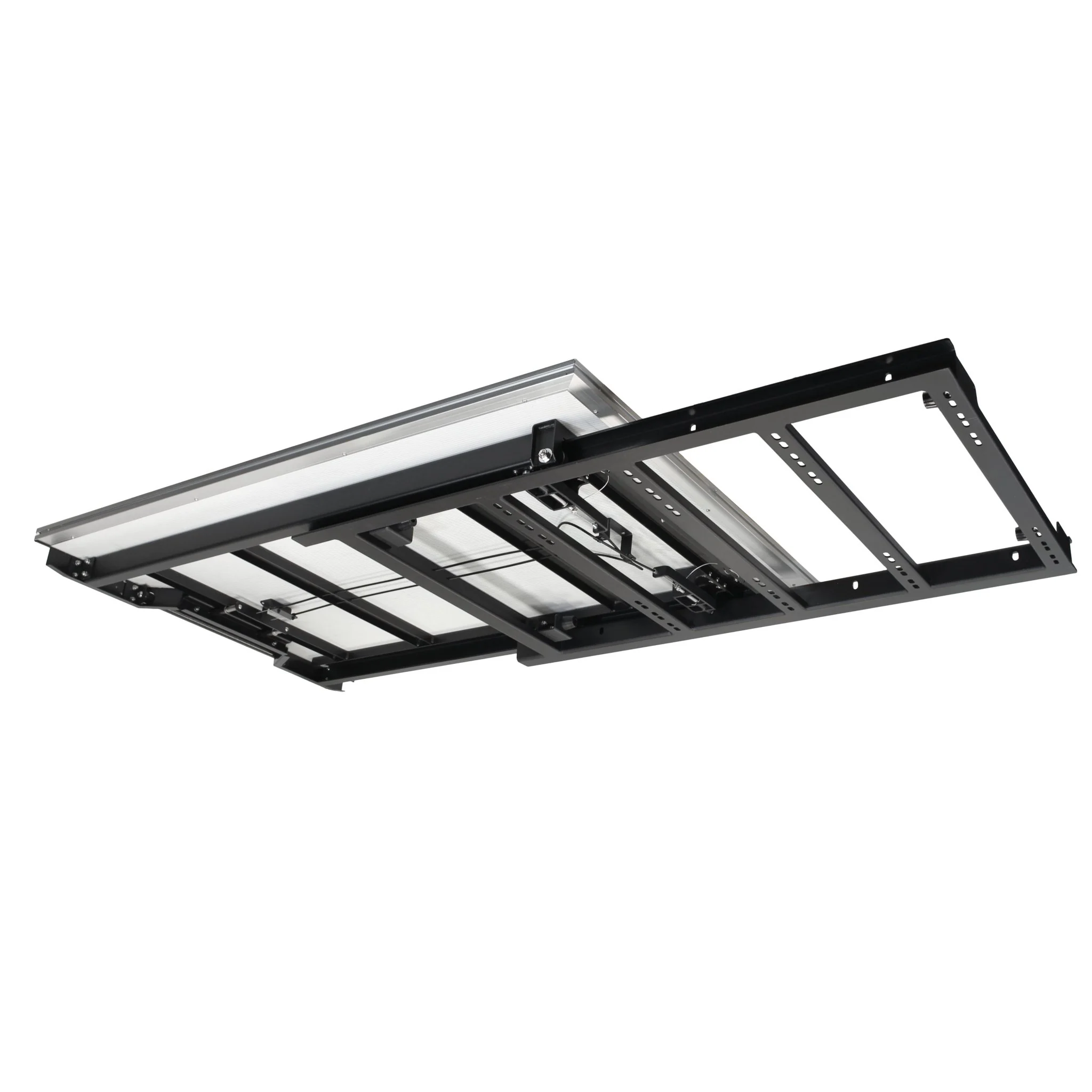

| Frame Construction | Steel frame |
| Base | Composite base with rubberized diamond-plate style overlay |
| Hardware | 304 stainless steel hardware |
| Bearings | 2" roller bearings |
| Locking Positions | 3 positions with dual-spring latch pins |
| Operation | Single-pull ergonomic handle |
| Fitment | Universally sized for mid-size and full-size short bed trucks |

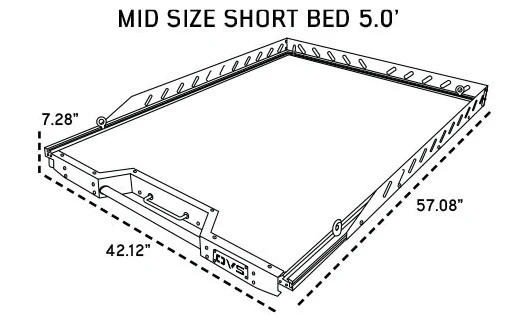

| Mid-Size Short Bed 5.0' | 57.08" L × 42.12" W × 7.28" H • Approx. 140 lbs |
| Full-Size Short Bed 5.5' | 64.96" L × 48.50" W × 7.28" H • Approx. 160 lbs |
| Full-Size Short Bed 6.5' | 75.00" L × 48.03" W × 7.28" H • Approx. 180 lbs |
Works with steel, aluminum, or composite truck beds when properly installed to manufacturer guidelines.
What’s in the Box
- Overland Vehicle Systems Bed Extension (pre-assembled slide unit)
- Removable guard rail with multiple tie-down positions
- T-rail system with adjustable tie-down rings

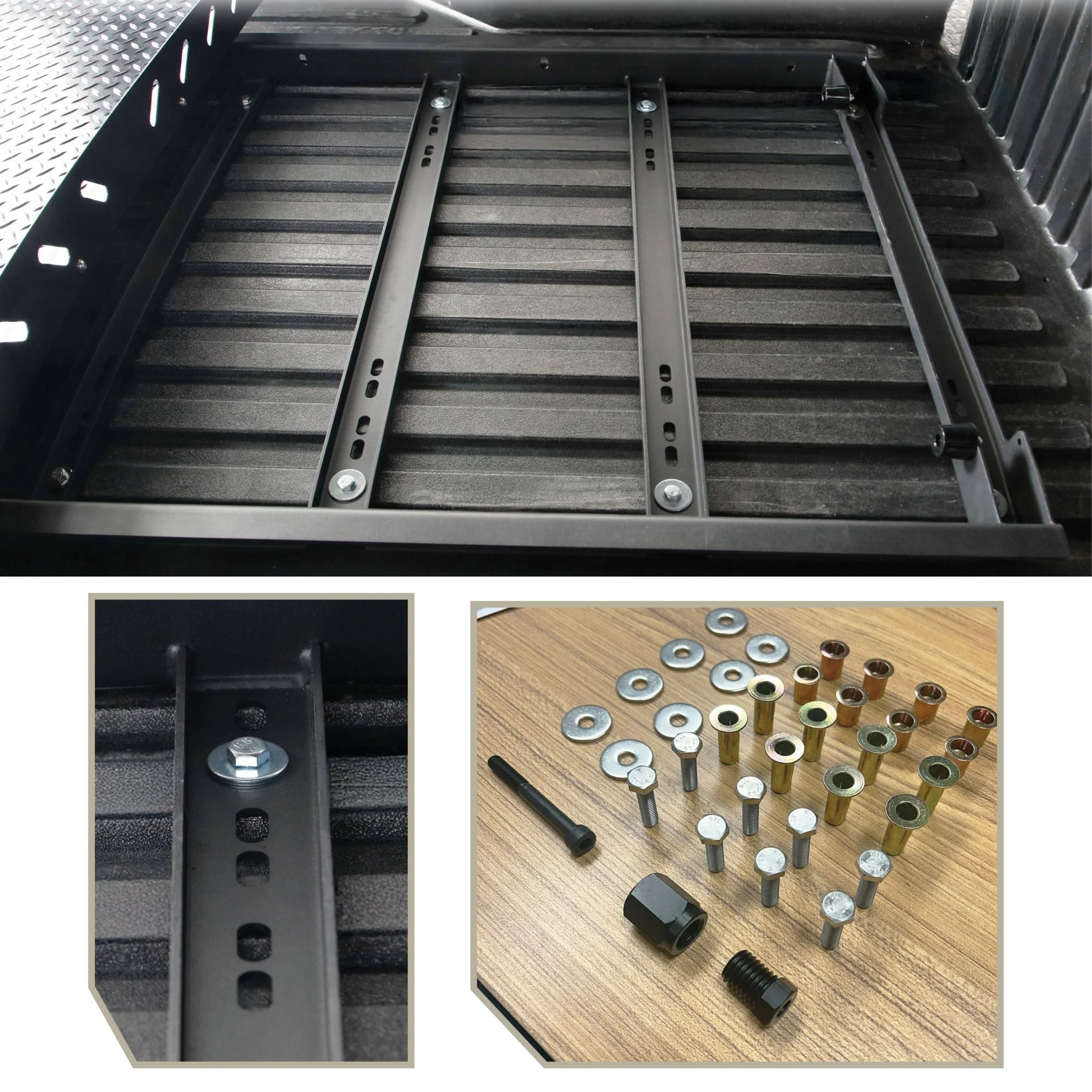

- Mounting hardware (304 stainless steel)
- Installation instructions
Installation
Position the bed extension in your truck bed per the instructions, mark mounting points, and secure using the supplied hardware. Some applications may require drilling through the bed floor or using reinforced mounting locations. Verify clearances with the tailgate and any bed-mounted accessories. After installation, cycle the slide through all lock positions to ensure smooth operation.
Safety & Usage Notes
- Do not exceed the rated 1,250 lb load capacity and always distribute weight evenly.
- Keep hands and loose clothing clear of moving parts when operating the slide.
- Always lock the slide into a detent position before driving.
- Periodically inspect mounting hardware, latch pins, and bearings—especially after off-road use or heavy loading.
Tip: Pair this bed extension with tie-down straps, storage boxes, and a tailgate seal kit to build a clean, organized overland or work truck setup.
