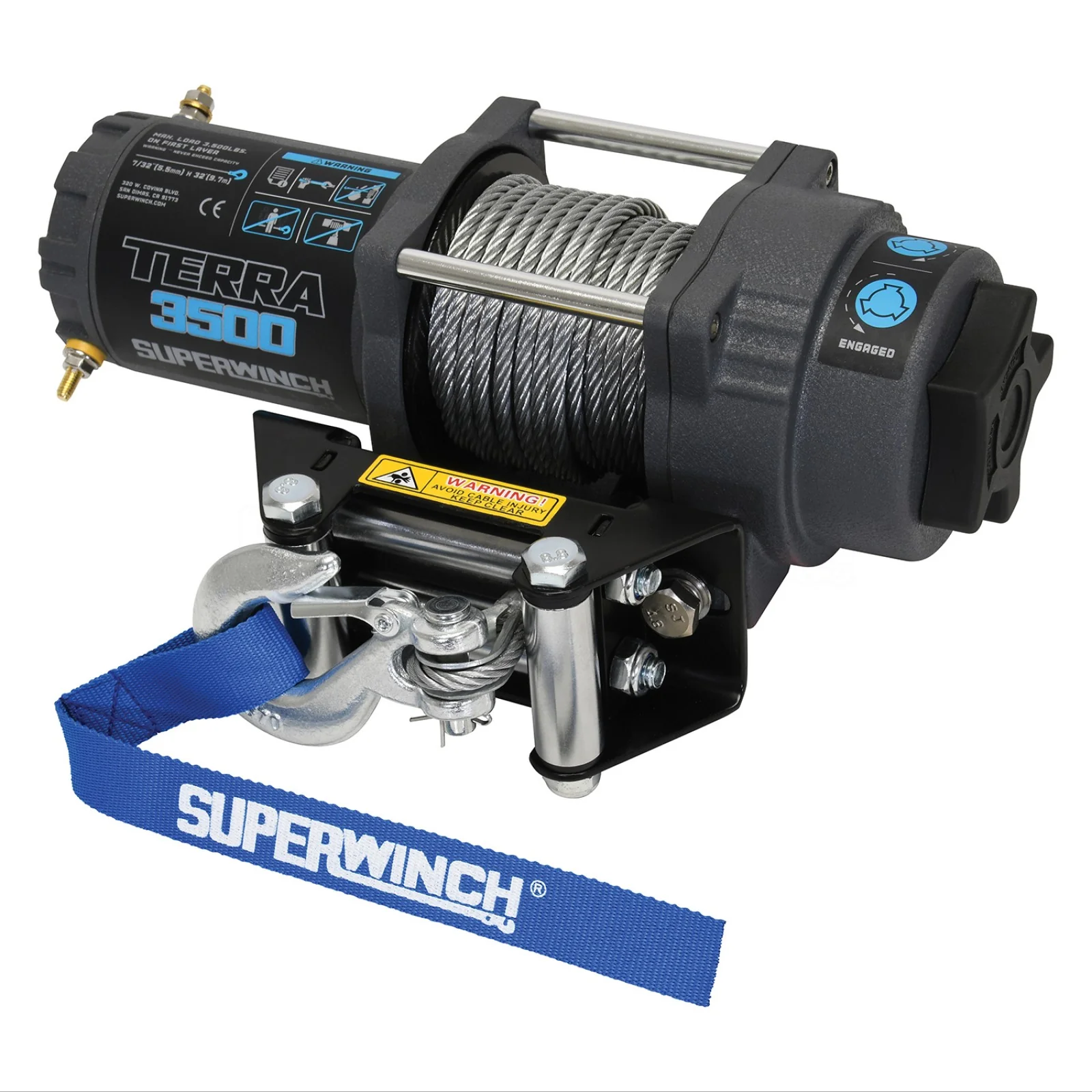

Superwinch ATV & SxS Powersports Terra Series 3,500 lbs Winch - 32 ft. Line
Superwinch Terra Series Winch – Built for the Trail
Engineered for ATV and UTV riders who demand power, durability, and reliability, the new-generation Terra Series winches from Superwinch are purpose-built to tackle the toughest off-road challenges. With a 3,500 lb. rated line pull and your choice of wire or synthetic rope, the Terra Series combines raw strength with advanced control.
Key Features:
-
3,500 lb. Capacity – Ideal for ATVs and UTVs handling demanding recovery tasks.
-
Powerful Sealed Motor – Designed for high torque and dependable performance in harsh conditions.
-
All-Steel Planetary Gearing – Ensures long-lasting strength and efficient pulling power.
-
Steel Drum – Built tough for use with synthetic or wire rope.
-
Sealed Solenoid & Circuit Breaker – Housed in a remotely mountable control box for optimal protection and placement flexibility.
-

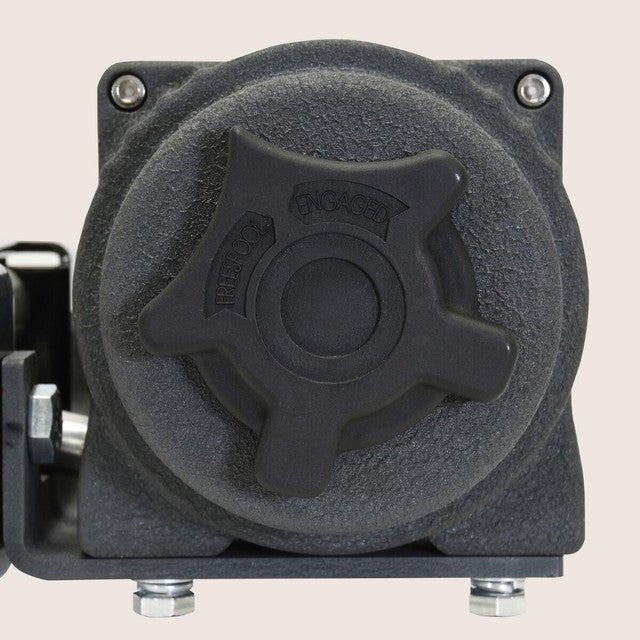

Ergonomic Free-Spool Knob – Makes rope management quick and easy.
-

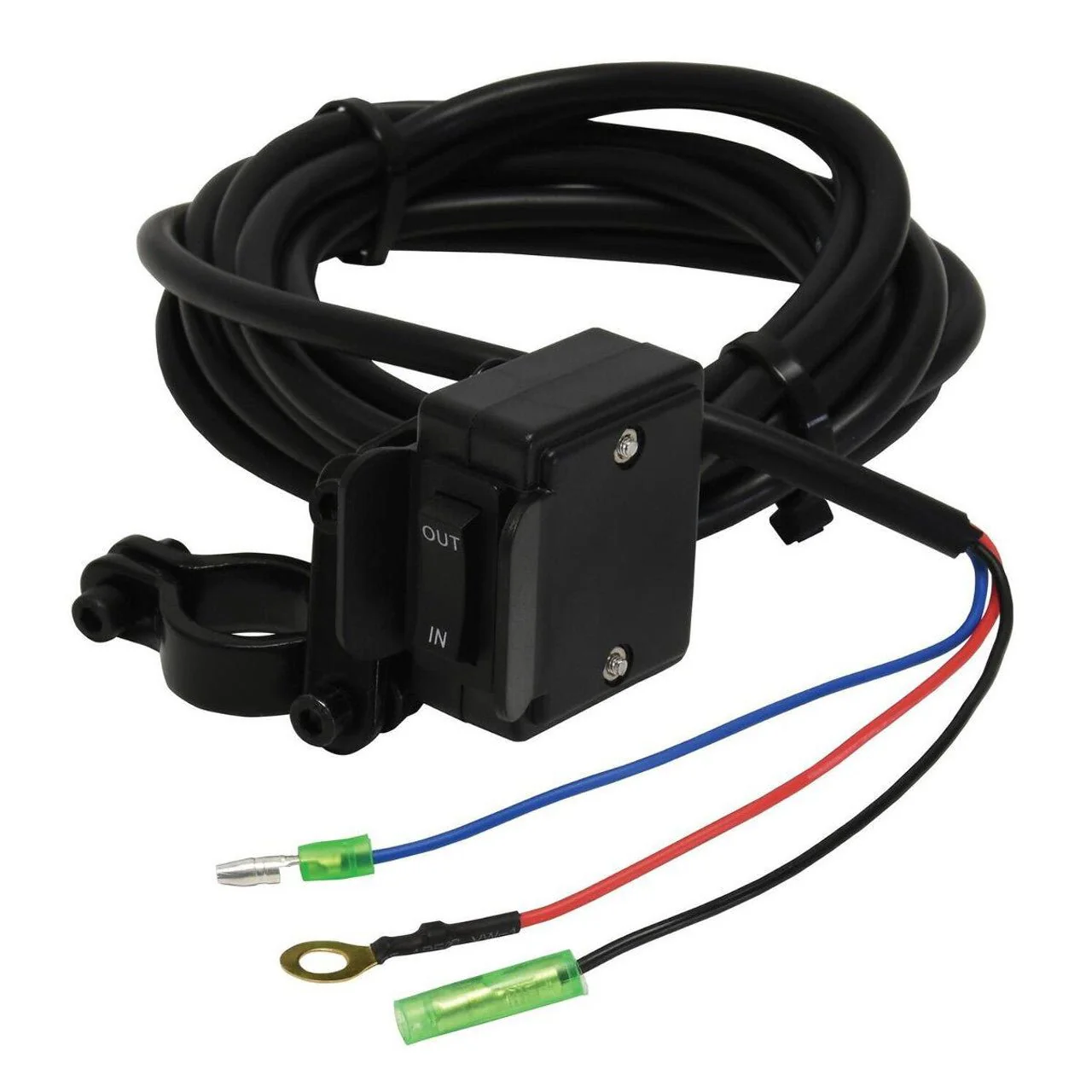

Dual Control Options – Includes both a 10' wired remote and a handlebar-mounted rocker switch for ultimate convenience.
-
IP67 Rated – Dustproof and water-resistant for reliable performance in extreme environments.
Ready for mud, snow, rocks, or remote trails, the Superwinch Terra Series is your go-to solution for serious off-road pulling power.
Specs
| Feature | Details |
|---|---|
| Rated Line Pull | 3,500 lbs. |
| Motor | 1.6 HP Permanent Magnetic Motor |
| Motor Design | Clockable Motor |
| Gearing | 3-Stage Planetary with 198:1 Ratio |
| Drum | Heavy-Duty Steel Drum |
| Gear Material | All Steel Gear Set |
| Solenoid | Sealed Solenoid with Circuit Breaker |
| Clutch | Ergonomic Freespool Control Knob (Easy to Engage) |
| IP Rating | IP67 – Dust & Water Resistant |
| Rope | 7/32 in. x 32 ft. Wire Rope |
| Hook | Heavy-Duty Clevis Pinned Latched Hook |
| Fairlead | 4-Way Roller Fairlead (For Wire Rope) |
| Remote | 10’ Handheld Remote + Handlebar Rocker Switch |
| Mounting | Universal Mounting Plate |
| Mounting Bolt Pattern | 3” x 4.87” |
| Design | Narrow Drum for Tight Space Mounting |
| Finish | Gray Wrinkle Powder Coat |
