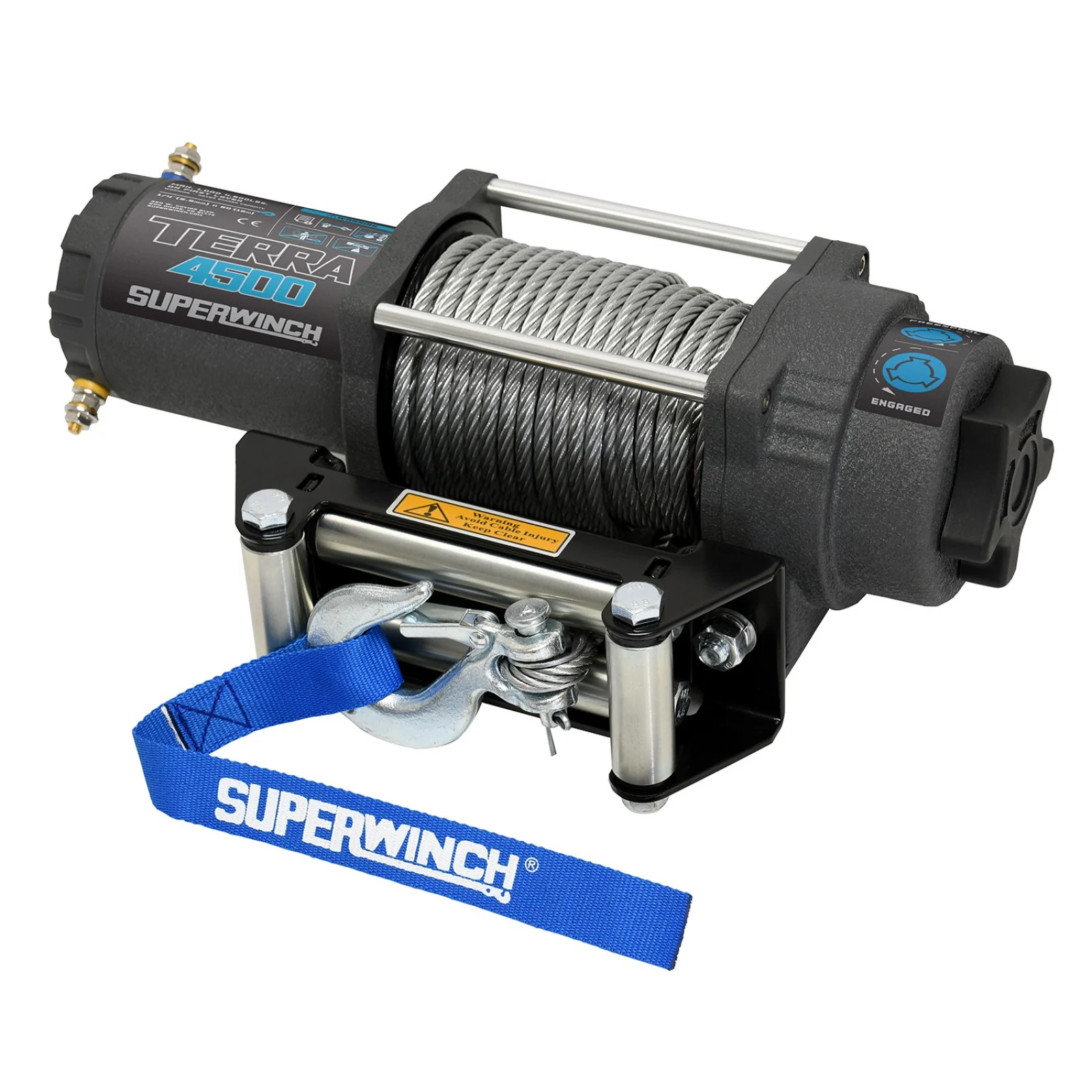

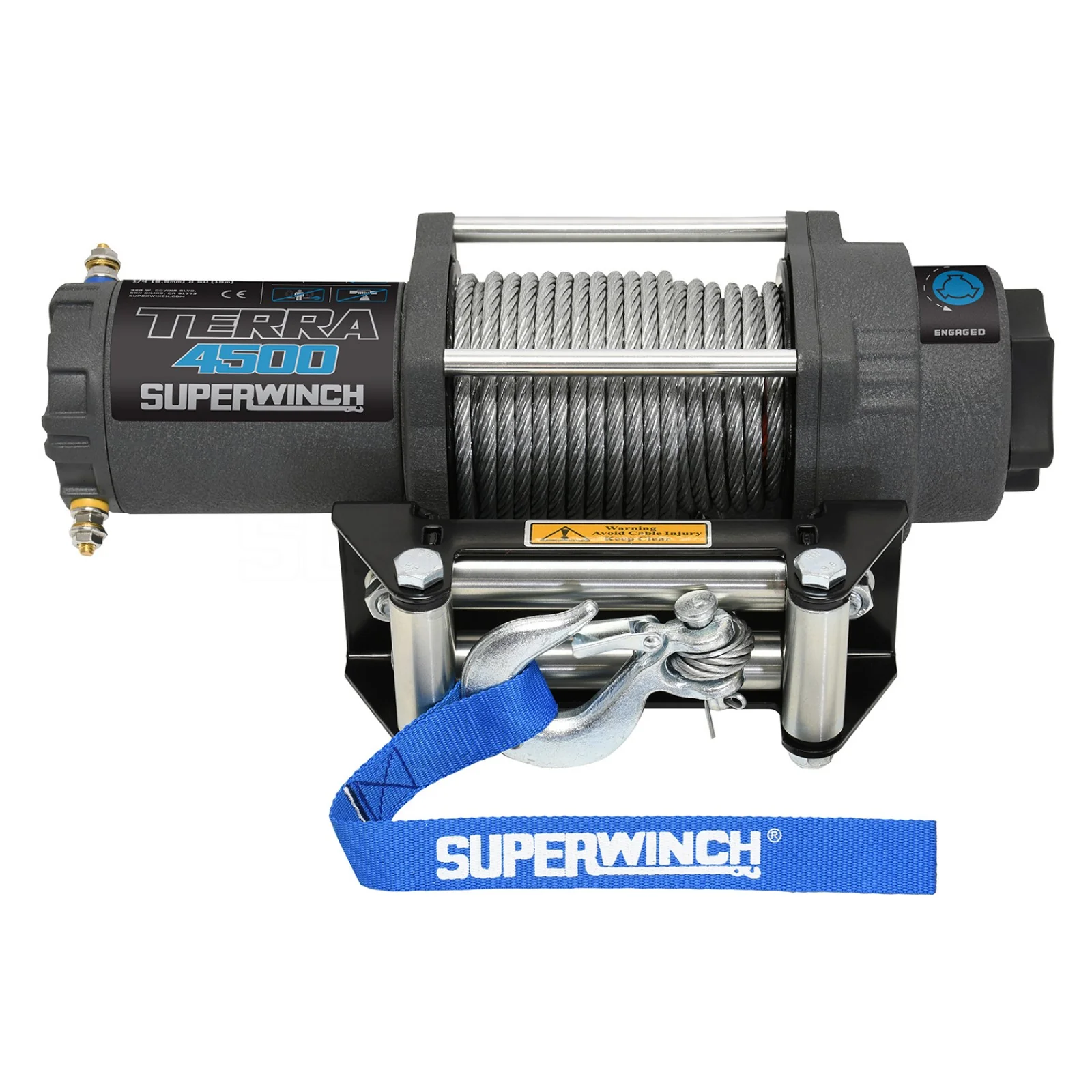

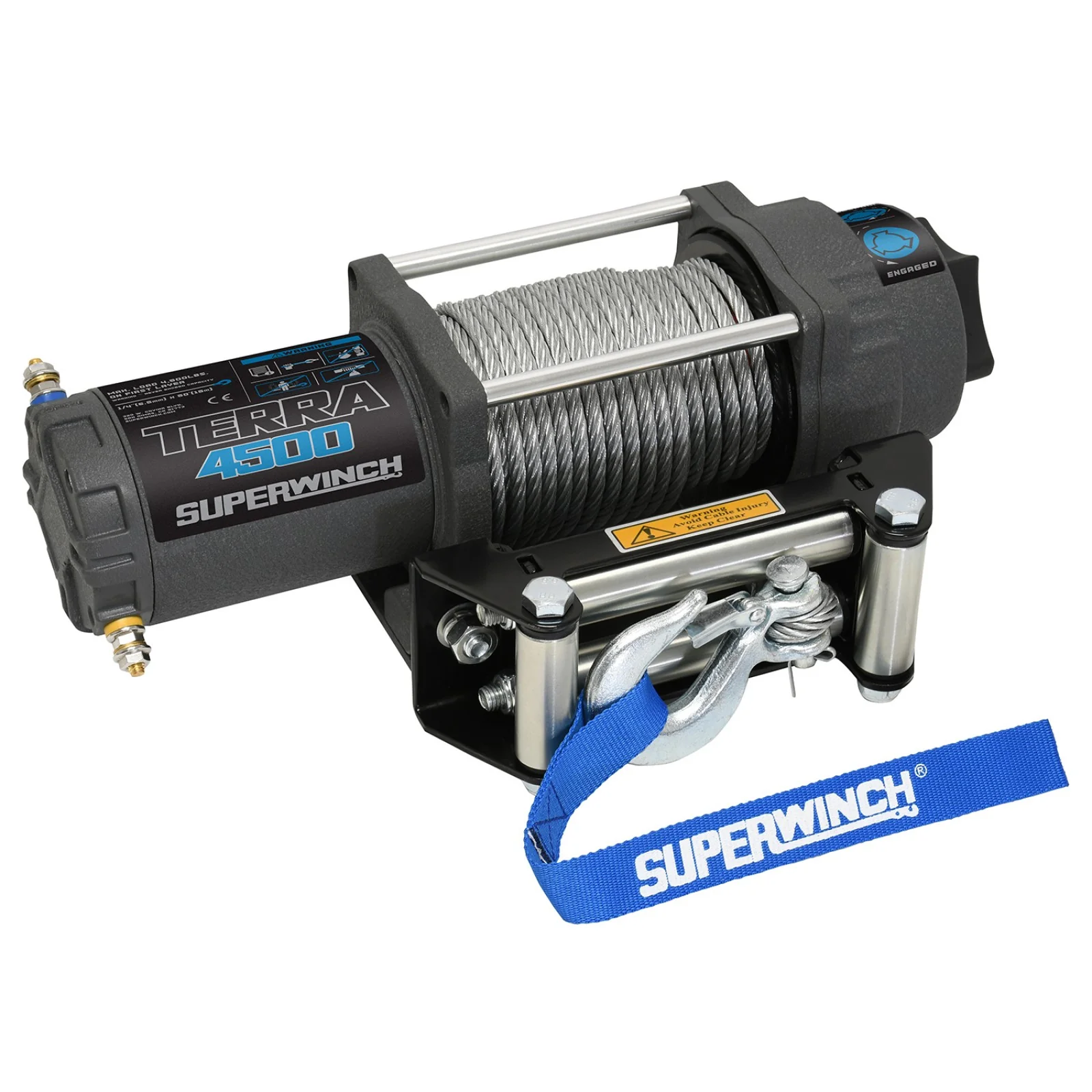

Superwinch ATV & SxS Powersports Terra Series Winch 4,500 lbs. Pull Rating, 32 ft. Line
Superwinch Terra 4500 – The Ultimate Winch for ATV/ SxS Power and Performance
Engineered for serious off-roaders and powersports enthusiasts, the Superwinch Terra 4500 sets the gold standard in ATV/UTV winching. Designed with premium components and industry-leading sealing, it’s built to thrive in the harshest environments—so you can ride with confidence.
Key Features:
-
Unmatched Strength
Equipped with a high-performance motor, reinforced steel drum, and rugged steel cable for dependable pulling power when you need it most. -
True All-Weather Sealing – IP67 Rated
The first fully sealed ATV/ SxS winch in the industry. From the motor to the ergonomic free spool control knob and 10' sealed remote—every component meets IP67 waterproof and dustproof standards. -
Wider Gears. Stronger Motor. Bigger Performance.
Delivers superior torque, smoother operation, and extended service life under heavy use. -
Durable 10’ Sealed Handheld Remote
Ensures safe, reliable control even in mud, snow, rain, or dust. -
Ready for Any Terrain
Designed to perform in extreme conditions—whether you're winching through deep snow, thick mud, or rocky trails.
Superwinch Terra 4500: Built tough for riders who demand more from their equipment. Take control of any recovery situation with power, reliability, and confidence
Features
| Category | Details |
|---|---|
| Capacity | 4,500 lbs |

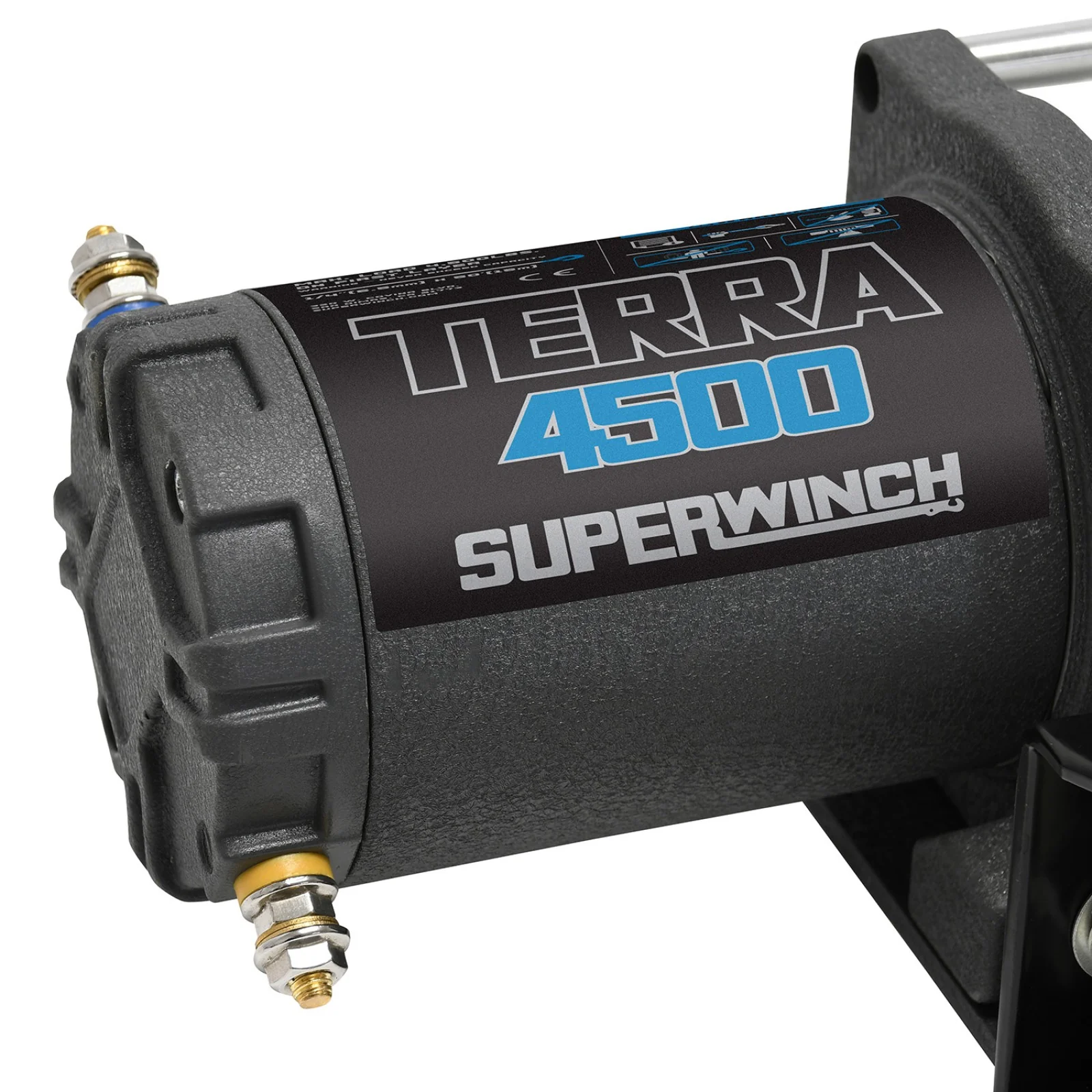

| Motor | 1.8 HP Permanent Magnetic |
| Motor Features | Clockable motor |
| Gear System | 3-Stage Planetary |
| Gear Ratio | 198:1 |
| Drum Type | Heavy-Duty Steel Drum |
| Drum Size | Narrow drum for tight mounting spaces |
| Rope Material | Wire Rope |
| Rope Size | 15/64 in. x 50 ft |
| Hook | Heavy-Duty, Clevis Pinned, Latched Hook |
| Fairlead | 4-Way Roller Fairlead (for wire rope) |

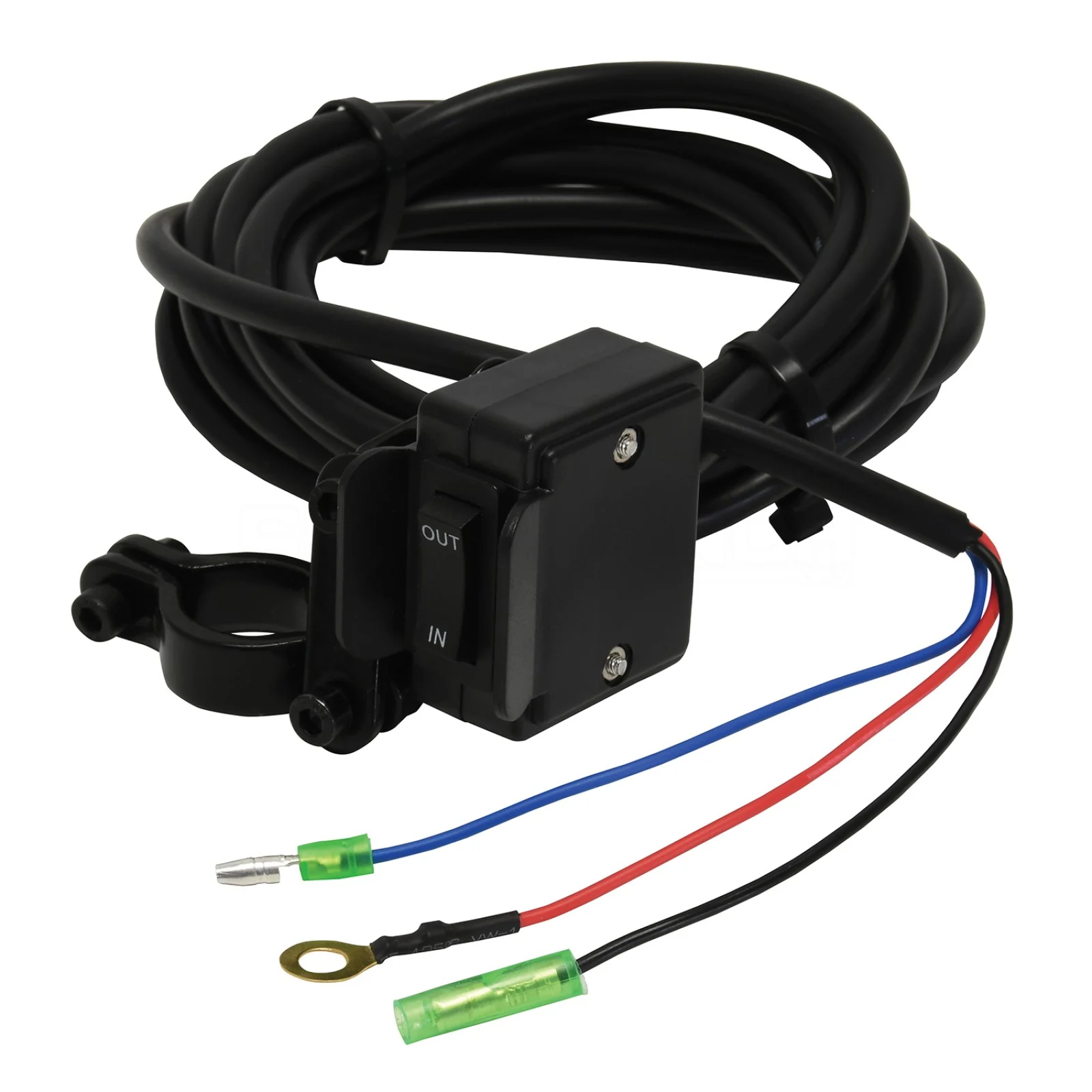

| Remote Control | 10’ Handheld Remote & Handlebar Rocker Switch |
| Mounting Plate | Universal Mounting Plate Included |
| Mounting Bolt Pattern | 3” x 6.66” |
| Solenoid | Sealed Solenoid with Circuit Breaker |

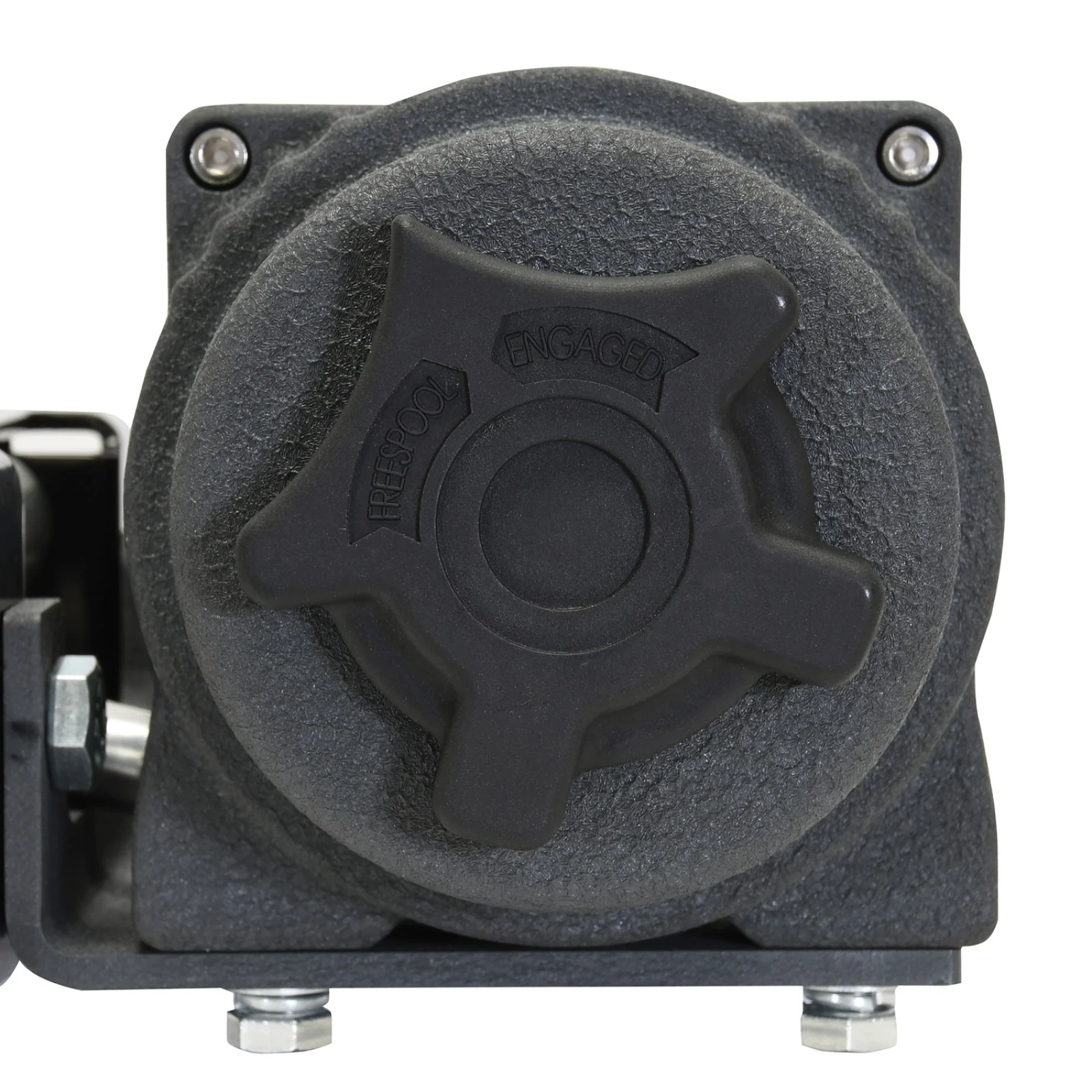

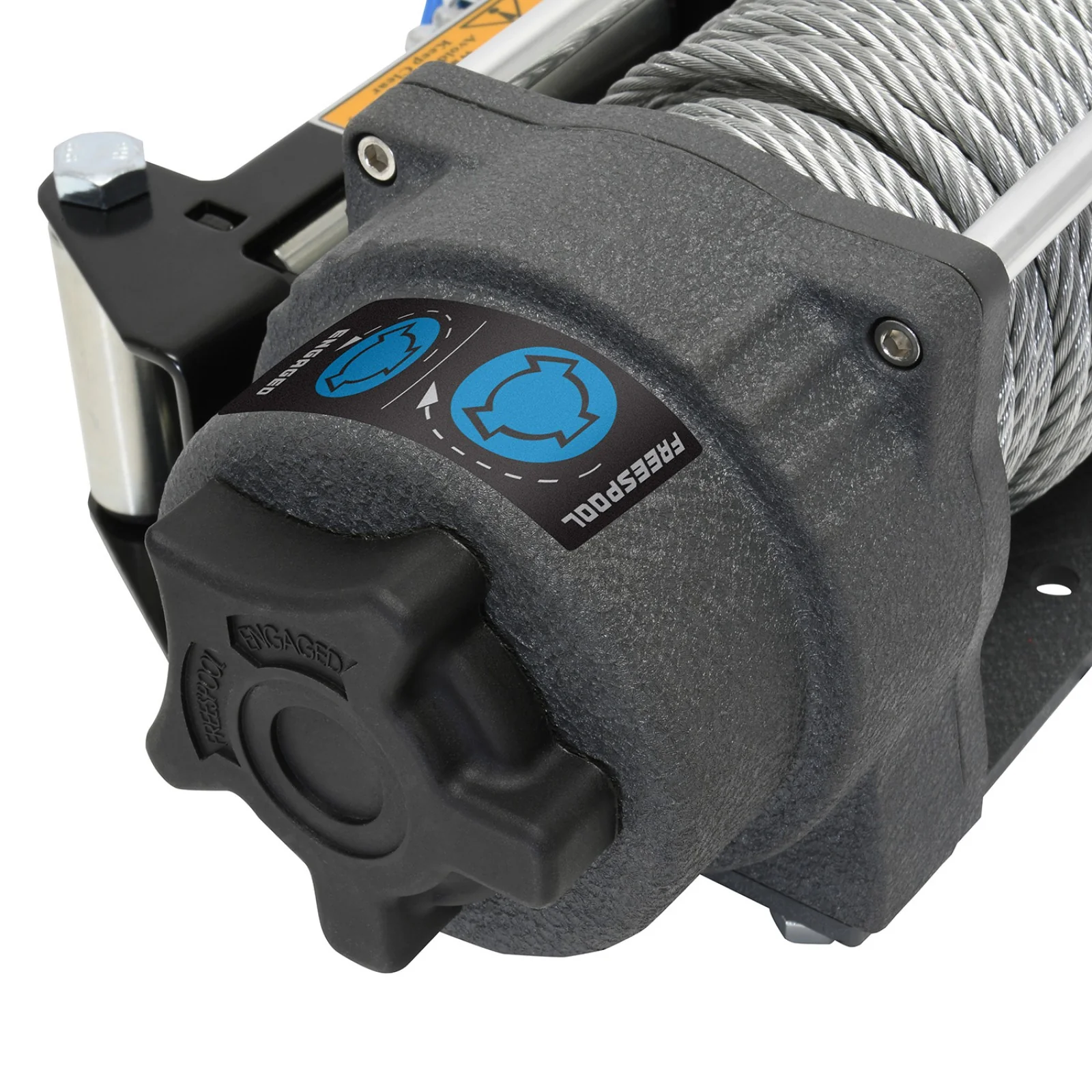

| Freespool Control | Easy to Engage Ergonomic Knob |
| Ingress Protection | IP67 Rate |
Specs
| Category | Details |
|---|---|
| Weight | 33.00 lbs |
| Dimensions (L x W x H) | 17.71" x 9.84" x 8.66" |
| Color | Textured Gray |
| Material | Steel |
| Surface Finish | Powder Coated |

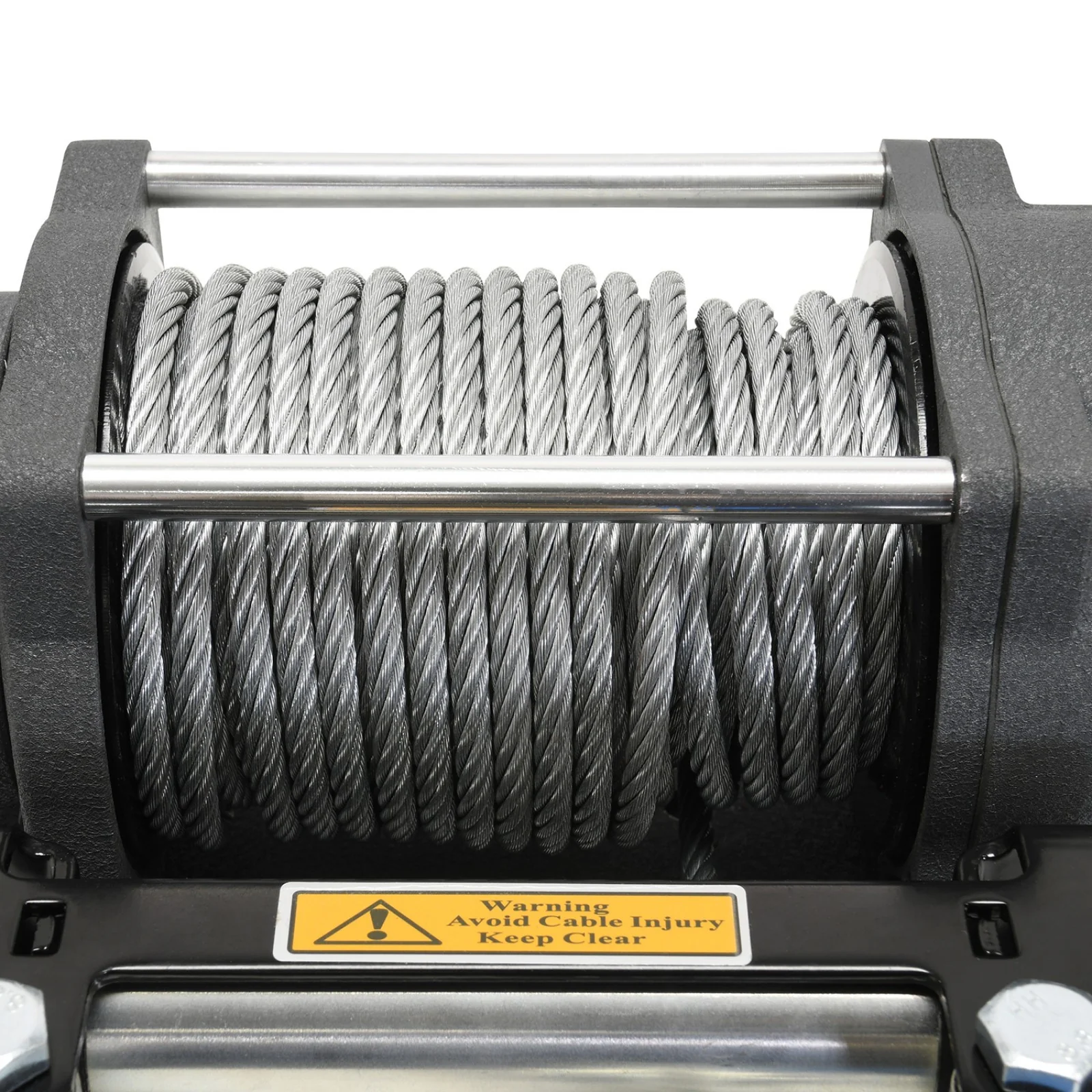

| Drum | Fully Welded Durable Steel Drum |
| Gear System | 3-Stage Planetary |
| Gear Ratio | 198:1 |
| Motor | 1.8 HP Permanent Magnet, 12V DC |
| Clutch | Free Spooling, Ergonomic Control |
| Brake System | Full Load Holding Automatic Brake |
| Rope Material | Steel Wire |
| Rope Dimensions | 15/64 in x 50 ft (6.0 mm x 15.2 m) |
| Fairlead | Stainless Steel 4-Way Roller |
| Winch Hook | Heavy-Duty, Clevis Pinned, Latched |
| Voltage | 12V DC |
| IP Rating | IP67 – Waterproof & Dustproof |
| Remote Type | Wired |
| Remote Control | 10 ft Rubber Sealed Handheld + Handlebar Rocker Switch |
| Series | Terra Series |
| Winch Type | Electric |
| Warranty | Other (unspecified) |
