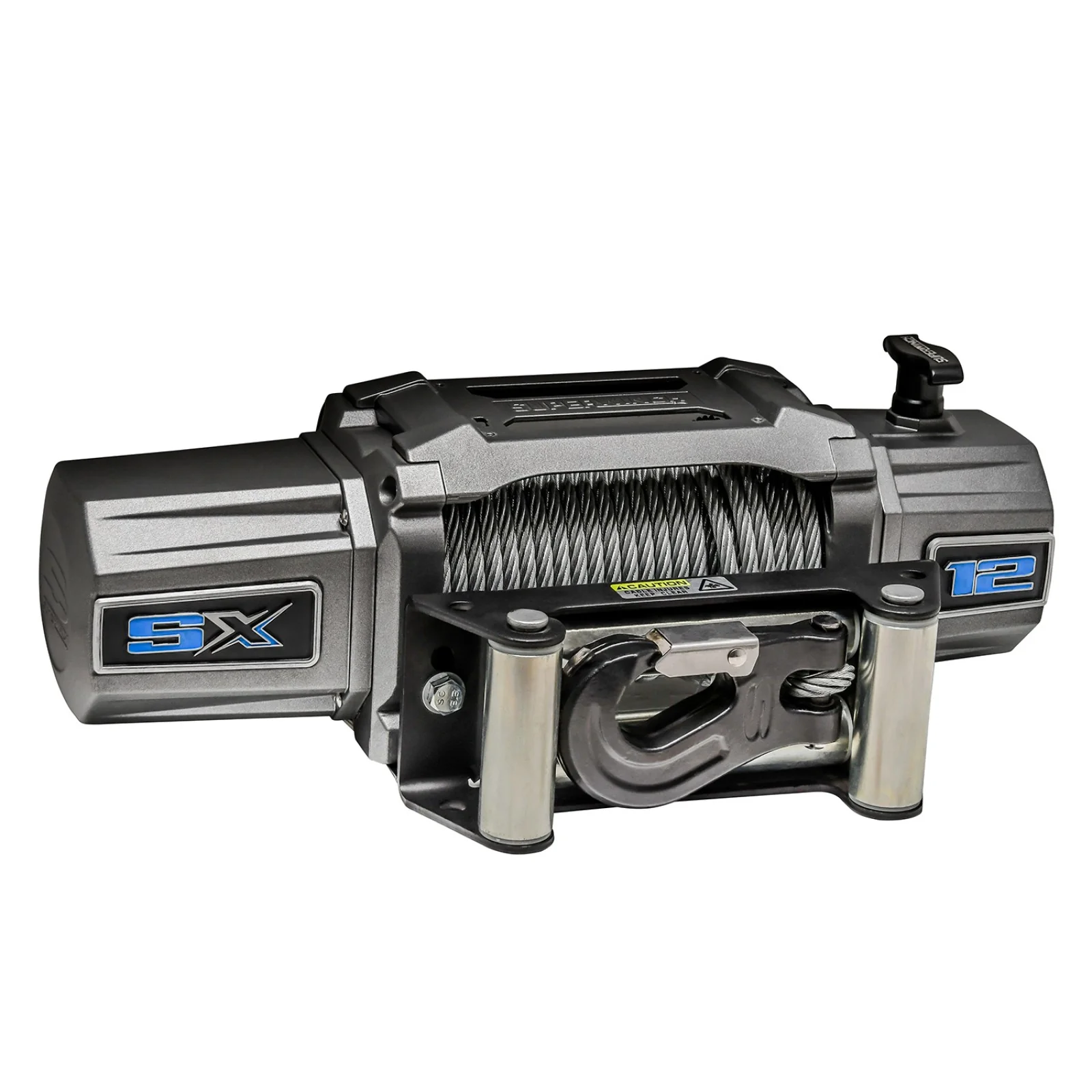

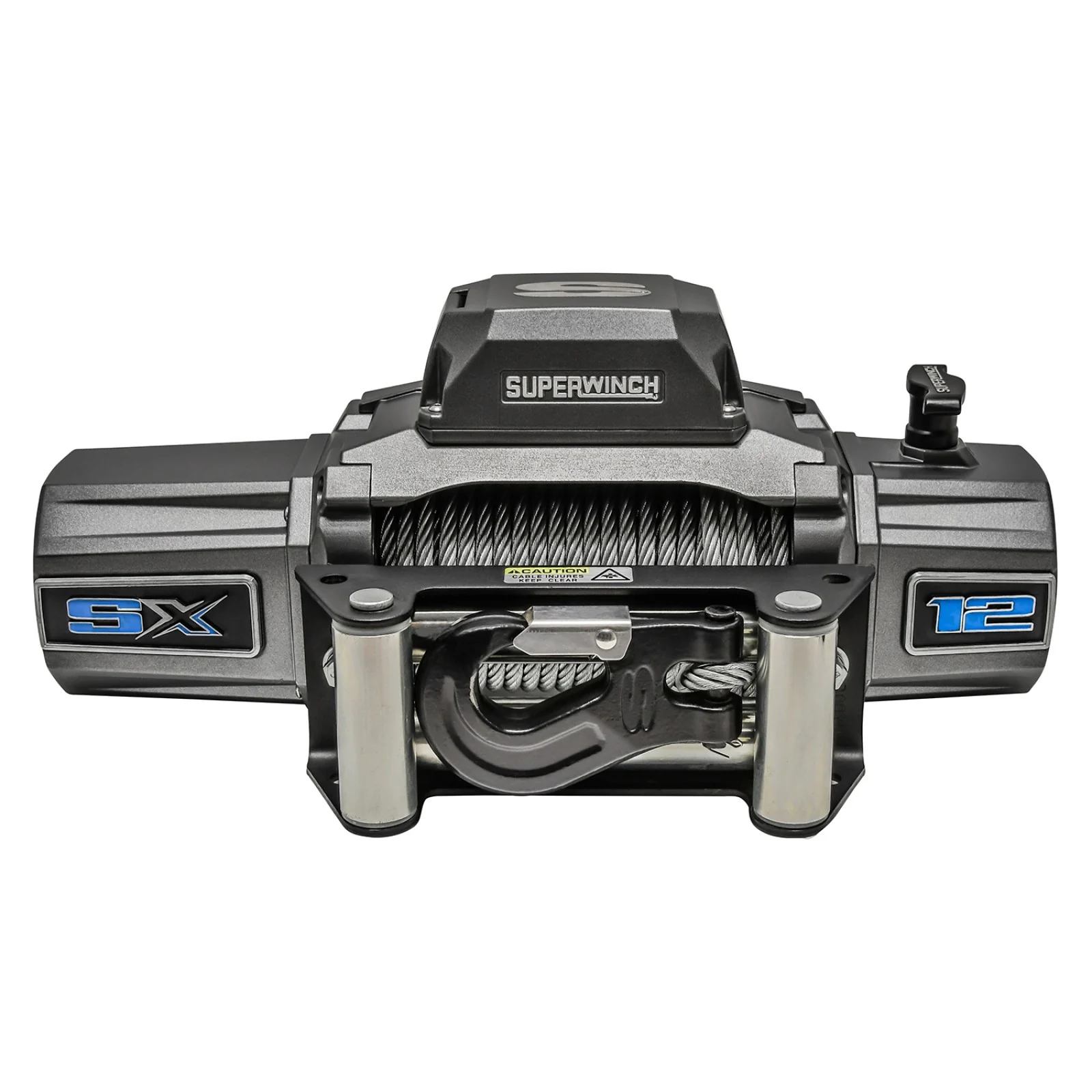

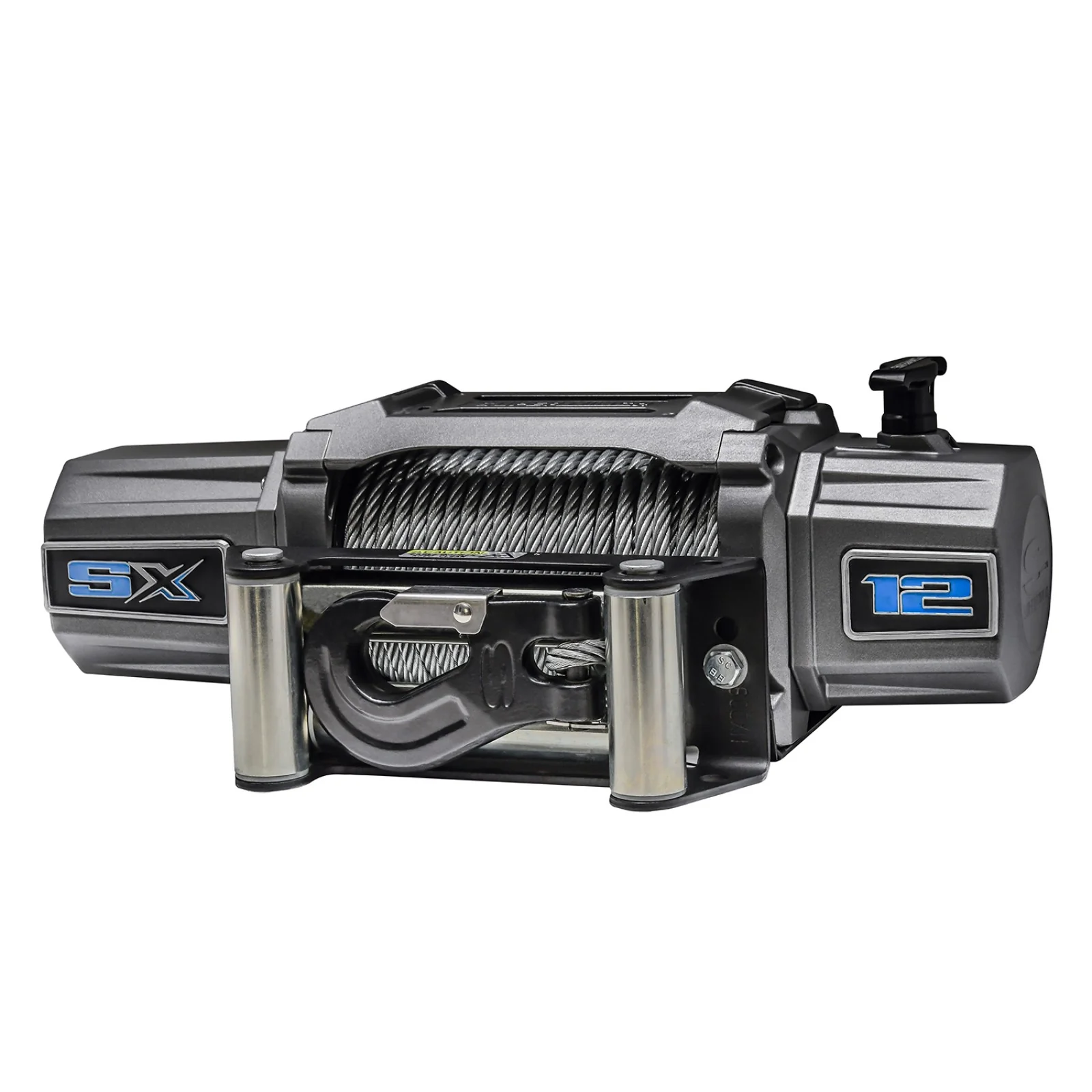

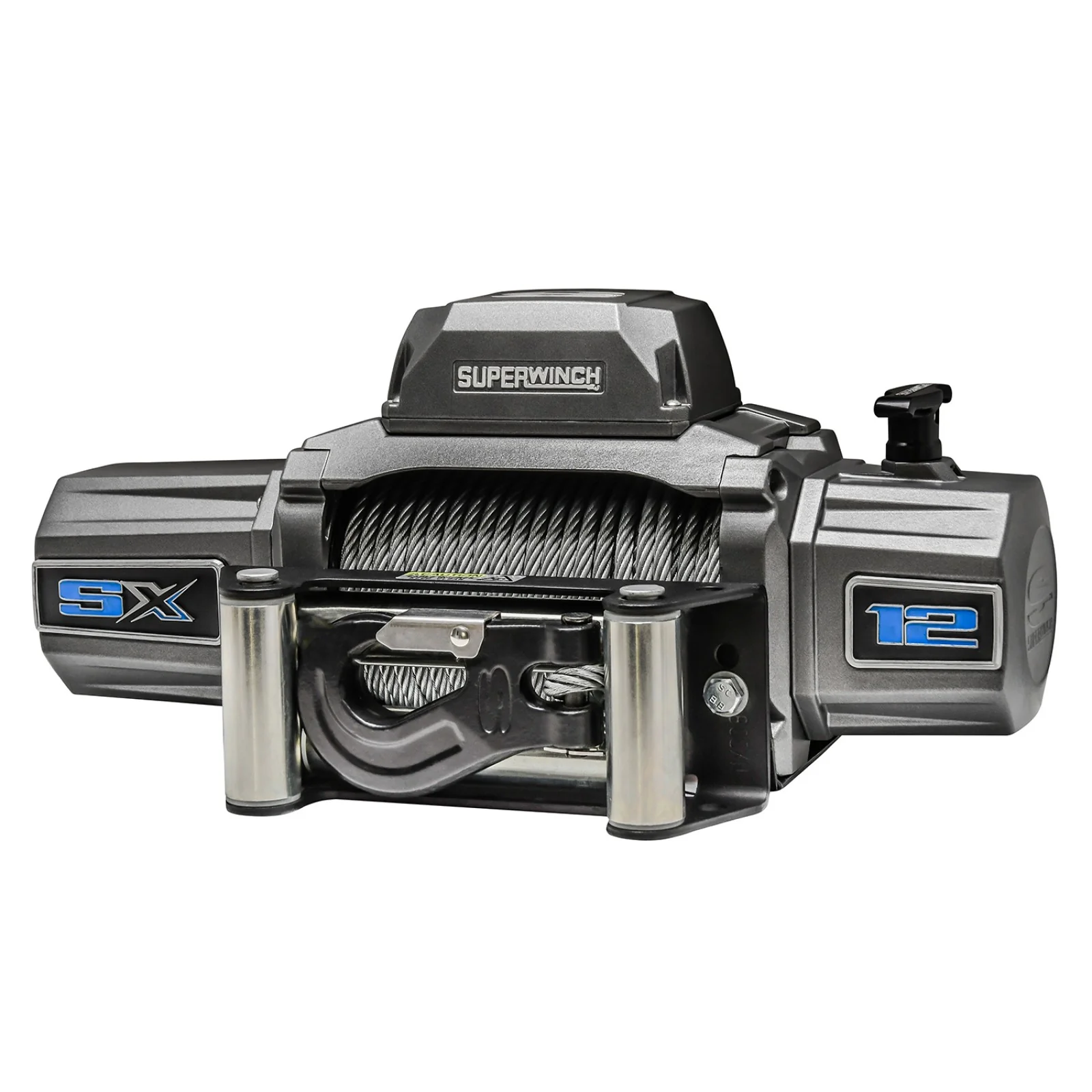

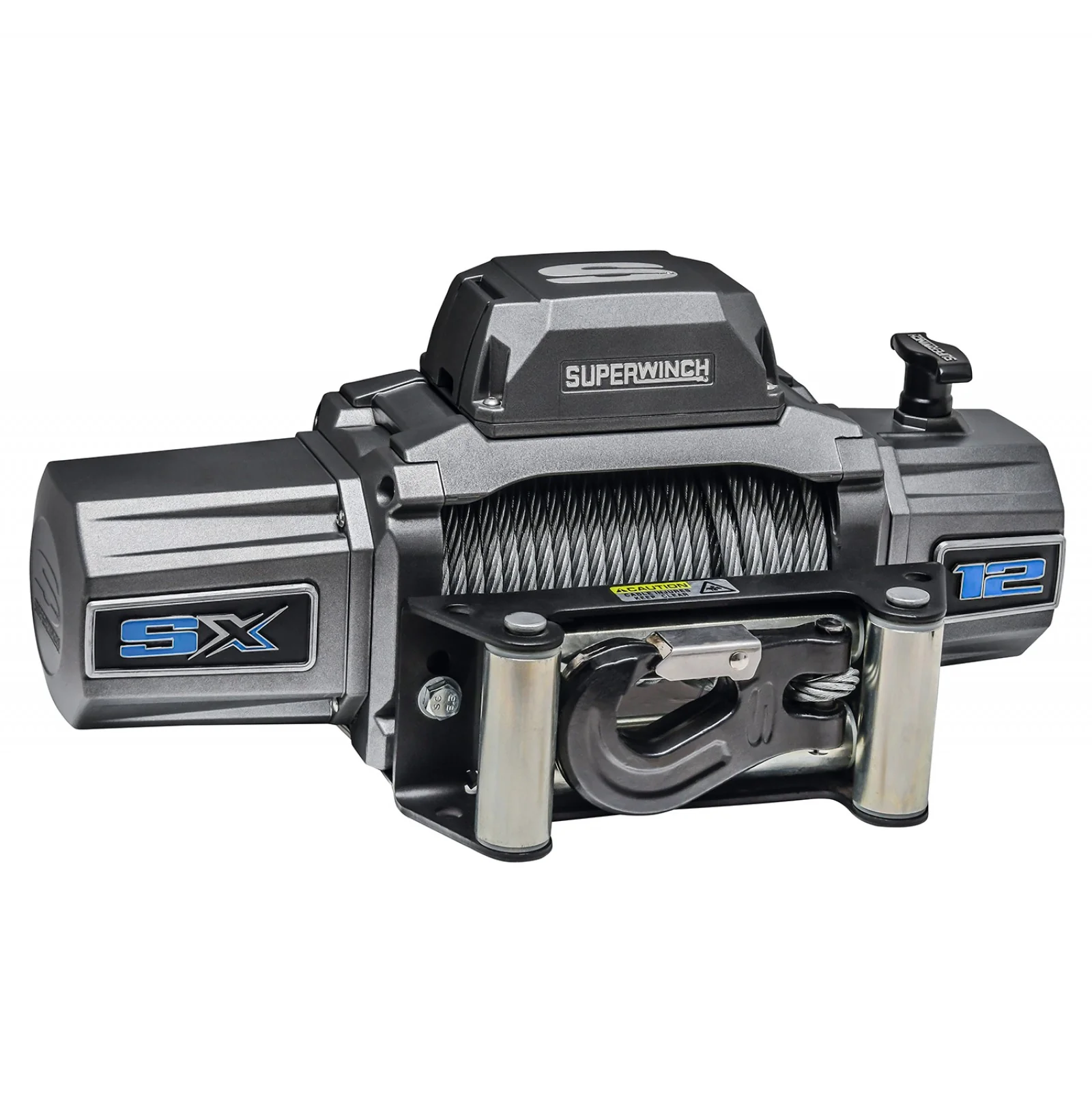

Superwinch SX12 12,000 lbs. Recovery Winch with Harness- 85ft Steel Cable
SX Series 12,000 lb Winch – Rugged Power. Modern Design. Unmatched Value.
Built to outperform the toughest demands of today’s modern vehicles, the SX Series Winch combines cutting-edge innovation, bold styling, and reliable strength—all at an affordable price point.
Key Features:
-
12,000 lbs. of Raw Pulling Power
Tackle serious recovery situations with confidence, whether you're on the job site, the trail, or off-grid. -
IP68 Rated Protection
Fully dustproof and waterproof to keep performing in the harshest environments—rain, mud, snow, or sand. -
Built to Last
Durable metallic graphite powder-coated finish provides long-lasting corrosion resistance and a sleek, modern appearance. -
Class-Leading Innovation
-
Patented Drum Light: See your winch operation clearly, even in low light.
-
Relocatable Control Box: Versatile mounting options for a clean, custom setup.
-

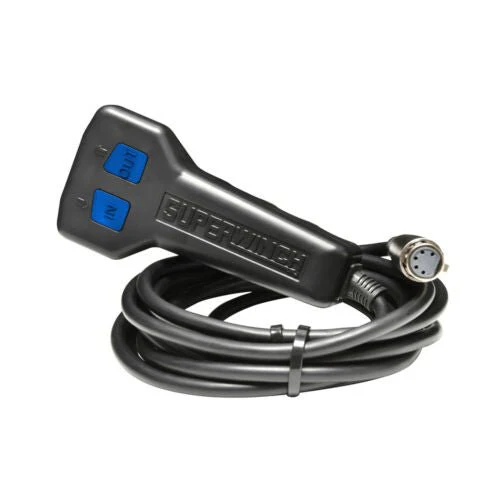

12’ Lighted Wired Remote: Operate with confidence, day or night.
-
-
Heavy-Duty Steel Wire Rope
Offers reliable strength and durability for demanding recovery scenarios.
The SX Series 12K Winch delivers serious performance, high-end features, and rugged reliability—designed to handle whatever the road or trail throws your way
FeaturesÂ
| Category | Details |
|---|---|
| Capacity | 12,000 lbs |
| Motor | 6.0 HP Sealed Motor |
| Control Box | Relocatable Die-Cast Aluminum |
| Remote Control | 12 ft. Wired Remote with Integrated Lithium ION Rechargeable LED Flashlight(Wireless Remote Upgrade Kit #2277R available) |
| Clutch Handle | Ergonomic Pull-and-Turn |
| Gear System | 3-Stage Planetary |
| Gear Ratio | 231:1 |
| Drum Light | Patented Drum Light |
| Rope Dimensions | 5/8 in. x 85 ft. Wire Rope |
| Drum Diameter | 2.5 in. |
| Hook | Heavy-Duty Clevis Winch Hook |
| Fairlead | Stainless Steel Roller |
| Brake System | 100% Full Load Holding Automatic Mechanical Brake |
| Ingress Protection | IP68-Rated Waterproof and Dustproof |
| Finish | Durable Metallic Graphite Powder Coat |
| Gearbox | Clockable |
Specs
| Category | Details |
|---|---|
| Weight | 90.00 lbs |
| Dimensions (L x W x H) | 24.00" x 13.00" x 12.00" |
| Winch Series | SX Series |
| Material | Steel |
| Finish | Graphite Powder Coated |
| Voltage | 12V DC |
| Motor | 6.0 HP, 12V DC |
| Gear System | 3-Stage Planetary |
| Gear Ratio | 231:1 |
| Clutch | Pull and Turn Clutch Handle |
| Brake System | 100% Full-Load Holding Automatic Mechanical Brake |
| Rope Material | Steel Wire |
| Rope Size | 3/8 in x 85 ft (9.5mm x 26m) |
| Drum | Durable Fully Welded Steel Drum |
| Fairlead | Stainless Steel 4-Way Roller |
| Control Box | Relocatable Die-Cast Aluminum |
| Hook | Heavy-Duty, Clevis Pinned Latched |
| Remote Type | Wired |
| Task Lighting | Patented Drum Light |
| IP Rating | IP68 Waterproof and Dustproof |
| Line Speed | 68 Amps Motor Draw / 23.4 FPM (7.13 MPM) |
| Compliance | Not EN Compliant |
