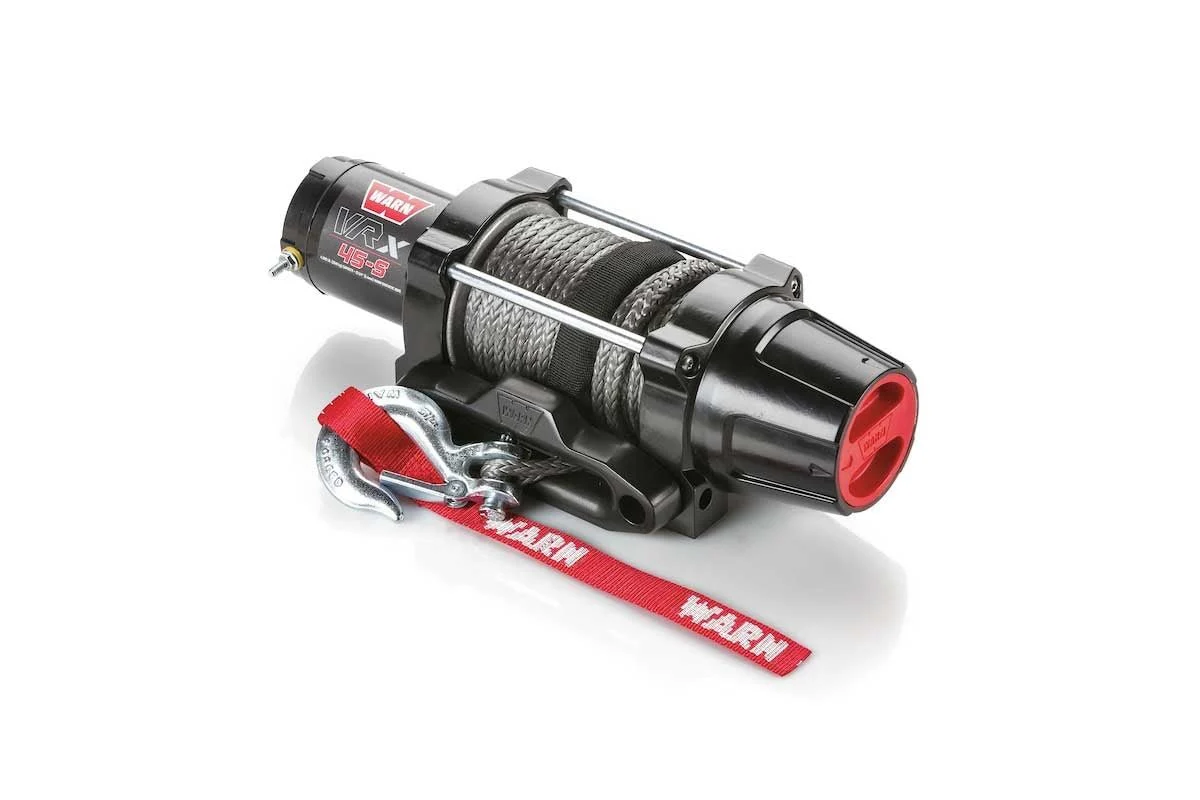

WARN VRX 45-S Powersports UTV SXS Winch – 4,500 lb Capacity | Synthetic Rope

WARN VRX 45-S Powersports UTV SXS Winch – 4,500 lb Capacity | Synthetic Rope

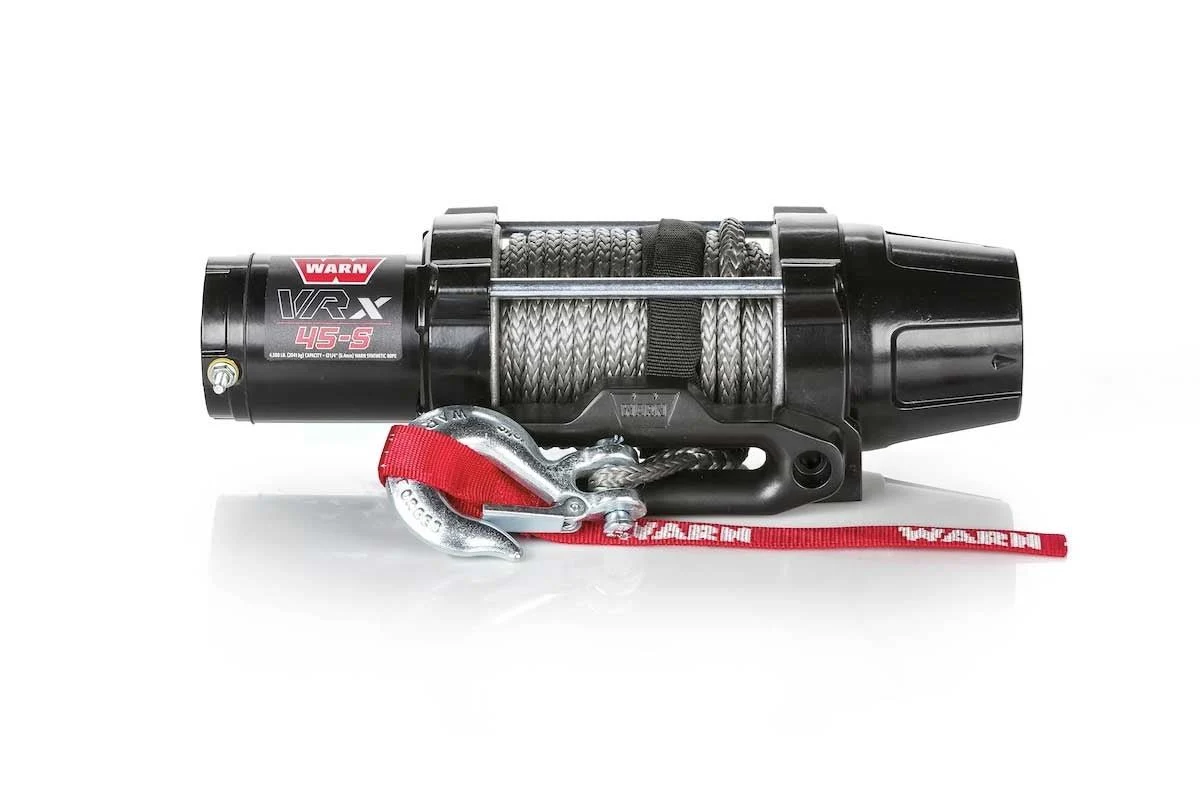

The WARN VRX 45-S delivers premium performance, best-in-class power, and unbeatable reliability for the hardest-working UTVs. With a 4,500 lb pulling capacity, durable synthetic rope, and IP68-rated waterproof sealing, this winch is engineered to handle demanding recovery situations and tough utility work with confidence.

Key Features:

• 4,500 lb Pulling Capacity – Built for demanding UTV applications and heavy-duty work.

• Synthetic Rope Kit – Includes 50 ft. of 1/4" Spydura synthetic rope, hawse fairlead, and zinc-plated hook.

• All-Metal Construction – Rugged housing with stainless fasteners and semi-gloss black powder-coated finish for corrosion resistance.

• Waterproof Protection – Complete IP68-rated sealing keeps mud, water, and debris out.

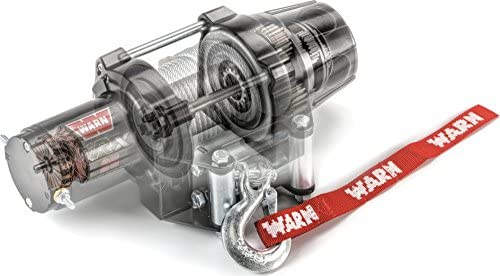

• Proven Gear Train – Smooth, reliable all-metal 3-stage planetary system.

• Legendary Clutch Design – Inspired by WARN’s proven 4WD hub lock technology for added dependability.

• Load-Holding Brake – Mechanical brake ensures control and safety under load.

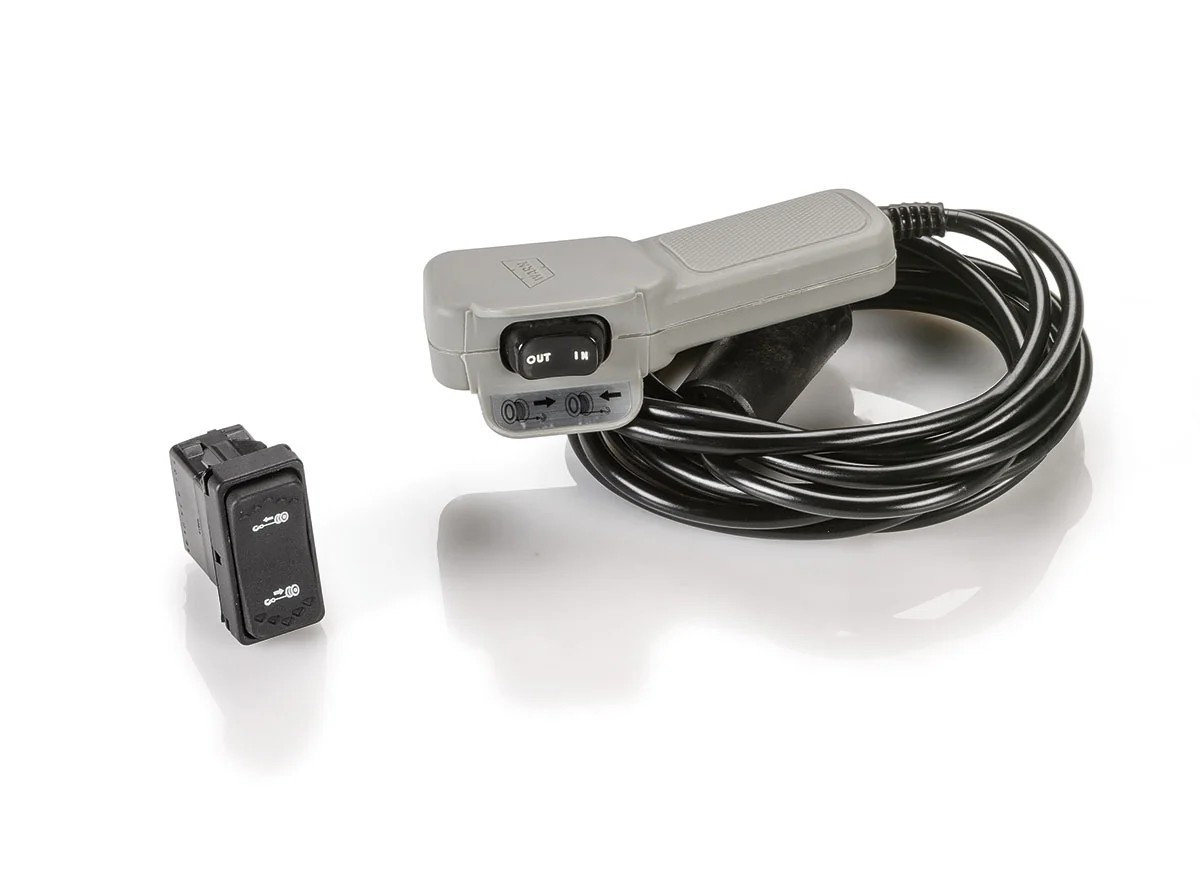

• Convenient Controls – Includes dash-mounted rocker switch and corded remote control for versatile operation.

• Installation Note – Requires a compatible bumper or mounting plate for proper installation.

• Warranty – Limited lifetime (mechanical) and 3-year (electrical) warranty.

Features

• VRX 45-S includes 50' of lightweight, easy-to-handle 1/4" synthetic rope, hawse fairlead, and zinc-plated hook
• Huge 4,500 lb. capacity available for the hardest-working UTVs
• Load-holding brake for great control
• Durable all-metal construction
• New clutch design based on legendary WARN 4WD hub lock know-how
• Complete waterproof sealing keeps all the elements out
• Semi-gloss back powder-coated finish and stainless steel fasteners for corrosion resistance
• Smooth and reliable all-metal three-stage planetary gear train
• Dash-mounted rocker control and corded remote

Specs

• Winch Rating: 4500 Pound
• Recommended Use: ATV/ UTV
• Operation Type: Electric
• Mount Type: Fixed Mount
• Voltage: 12 Volt
• Free Spooling: No
• Line Length (FT): 50 Feet
• Line Material: Synthetic
• Remote Type: Wired
• Universality: Fully Universal
• Mounting Pattern Size: 6.6 Inch Length X 3 Inch Width
• Brake Type: Automatic Cone
• Max Amp Draw: 252 Amp Draw At 4500 Pound
• Includes Mounting Hardware: No
• Thermal Shutoff: No
• Color: Black
• Fairlead Type: Hawse
• Line Speed At Max Pull: 4.3 Feet Per Minute At 4500 Pound
• Electrical Control Type: Contactors
• Motor Type: Permanent Magnet
• Drive Gear Type: Planetary
• Line Diameter (IN): 1/4 Inch
• Mounting Hole Quantity: 4
• Drum Material: Metal
• Estimated Install Time (Hours): 2

Warranty

Limited lifetime warranty (mechanical), 3 year warranty (electrical)
