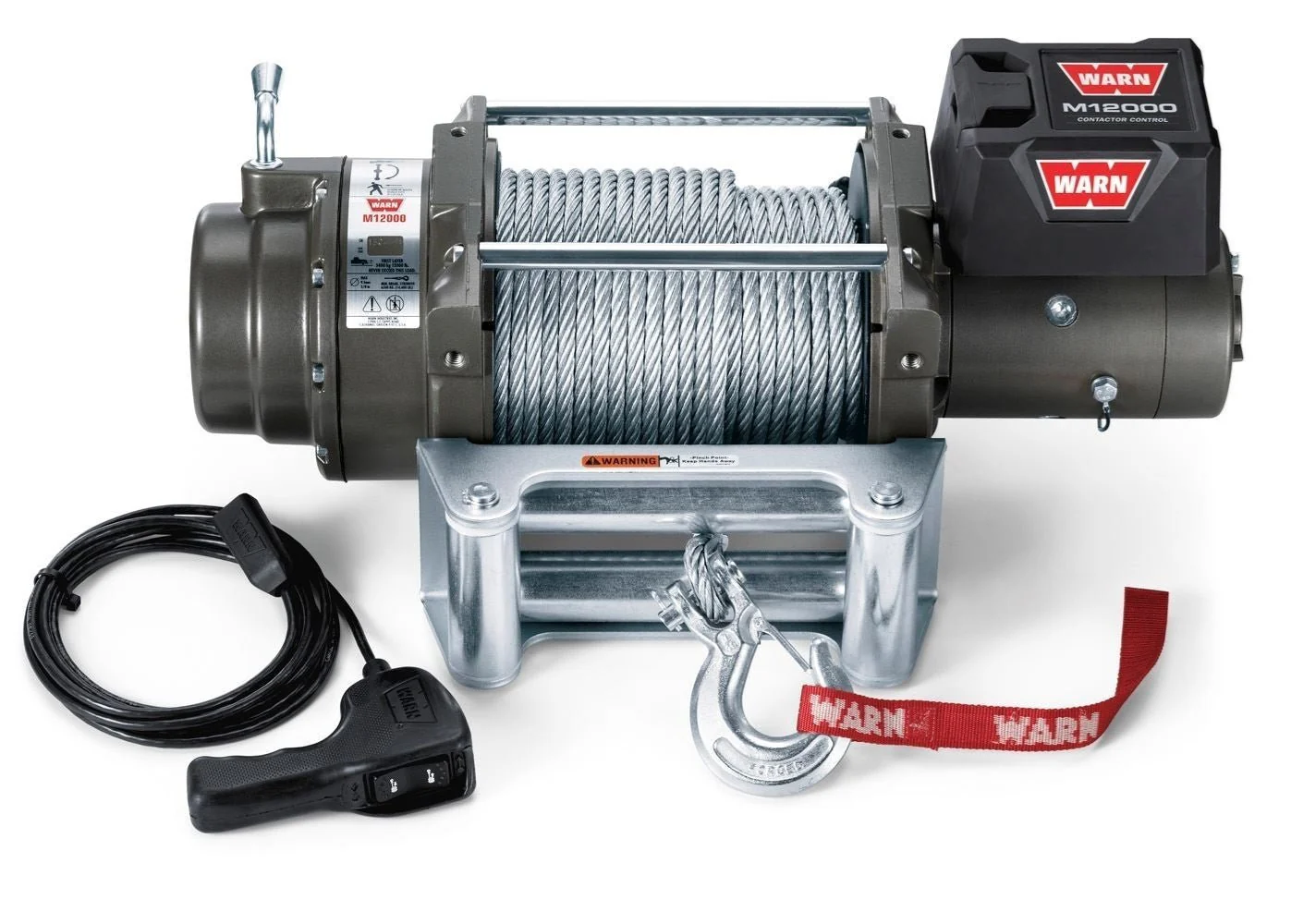

WARN M12 Winch – 12,000 lb Steel Cable | Heavy-Duty Truck Recovery

WARN M12 Winch – 12,000 lb Steel Cable | Heavy-Duty Performance

Big torque, 12,000 lbs. of pulling power, and a fast no-load retrieval speed make the WARN M12 the workhorse you need for full-size trucks and demanding recovery. Built for heavy-duty use, this large-frame winch combines raw strength with proven reliability to get the job done every time.

Key Features

• 12,000 lb (5,440 kg) pulling capacity – built for big trucks and heavy loads

• Max line pull speed: 12,000 lbs / 3.86 ft per minute

• Series-wound, high-speed motor – delivers both fast line speed and strong pulls

• Durable 3-stage planetary geartrain – ensures smooth and reliable operation

• Superior braking system – provides confident load control during winching

• Remote-mount control box – allows flexible mounting options

• Remote control with 12' (3.7m) lead – easy, safe operation at a distance

• 125 ft of 3/8" steel cable – long reach with dependable strength

• Chip-resistant powder-coated finish – corrosion and impact protection

• Includes mounting hardware (winch mount sold separately)

Features

• 12,000 lb. (5,440 kg) pulling capacity (single line)
• Large frame winch design is designed to handle heavier winch loads
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Brake provides superior control while winching
• Remote-mount control box allows for various mounting options
• Durable 3-stage planetary geartrain for smooth, reliable, operation
• Remote control with 12' (3.7m) lead
• Chip-resistant powder-coated finish
• 125' of 3/8" (38m of 9.5mm) diameter wire rope
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specs

• Rated Line Pull: 12,000 lbs (5,440 kg) single-line

• Motor: Series wound

• Electrical Controls: Contactor

• Remote Control: Remote switch with 12’ (3.7m) lead

• Geartrain: 3-stage planetary

• Gear Ratio: 261:1

• Clutch (Freespooling): Rotating ring gear

• Brake: Automatic mechanical cone

• Drum Diameter/Length: 3.5” / 8.2” (9 cm / 21 cm)

• Rope: 3/8” x 125’ (9.5 mm x 38 m) steel cable

• Fairlead: Roller

• Recommended Battery: 650 CCA minimum for winching

• Battery Leads: 2 gauge, 72” (1.83 m)

• Finish: Argent gray powder coat

• Weight: 133 lbs (60 kg)

• Warranty: Limited lifetime (mechanical components); 7 years (electrical components)

Warranty

• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
