WARN 9.0Rc Winch – 9,000 lb Rock Crawling Synthetic Rope | Compact 54 lb

WARN 9.0Rc Winch – 9,000 lb Rock Crawling Synthetic Rope | Compact & Lightweight

Built for competitive rock crawling, the WARN 9.0Rc delivers maximum pulling power in a compact, lightweight 54-lb unit. Designed to handle tough climbs, steep approach angles, and tight turns, this winch offers the speed, reliability, and legendary WARN performance that rock crawlers demand.

Key Features:

• 9,000 lb pulling capacity powered by a 4.8 hp series-wound motor

• Compact 54-lb design ideal for rock crawling rigs with limited space

• Fast line speed under load for efficient recoveries on the trail

• Next-generation control pack ensures longer duty cycles

• 50 ft of 3/8” synthetic rope with 360° swivel hook and thimble

• Ballistic nylon sliding sleeve for added abrasion and wear protection

• Aluminum hawse fairlead for lightweight durability

• Exclusive multi-segment cam brake for precise operator control

• Gloss red finish with primer undercoat for superior corrosion resistance

• Warranty: Limited Lifetime (mechanical) | 7-Year (electrical)

Specs

Type: Electric, Vehicle Mounted
Recommended Use: Vehicle Recovery / Rock Crawling
Rated Line Pull: 9,000 lbs (408 Amp Draw)
Motor: 12V DC, 4.8 HP Series Wound
Electrical Control: Contactor
Drive Gear Type: Planetary Geartrain
Gear Ratio: 216:1
Free Spooling: Yes
Brake Type: Mechanical Cone
Rope: 3/8” x 50 ft Synthetic Line
Fairlead: Hawse Fairlead
Remote Control: Handheld Remote Switch (corded)

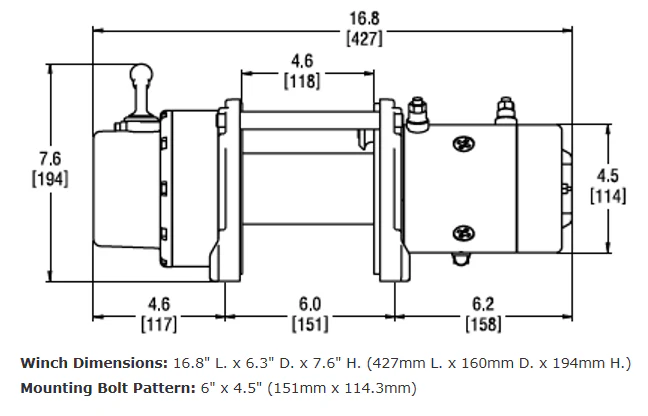

Mounting Pattern: 6” x 4.5” (4 holes)
Operation Type: Automatic
Includes Mounting Hardware: No
Color / Finish: Gloss Red Powder Coat
Max Line Pull / Line Speed: 9,000 lbs / 5.6 ft per minute
Max Amp Draw: 408 Amps
Conforms to J706 Standards: No
Weight: Compact 54 lbs design (ideal for rock crawling rigs)
