WARN ZEON XP 12-S Winch – 12,000 lb Synthetic Rope | Premium Waterproof

WARN ZEON XP 12-S Winch – 12,000 lb Synthetic Rope | Ultimate Performance

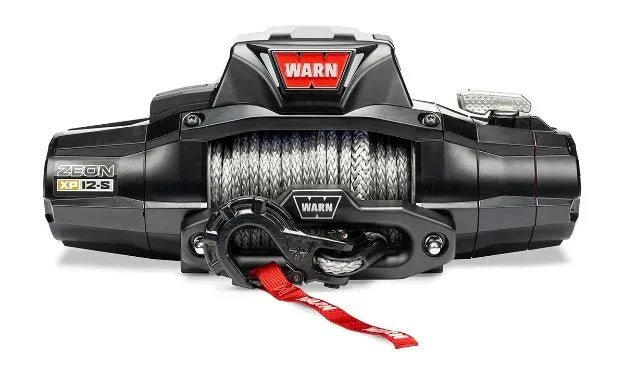

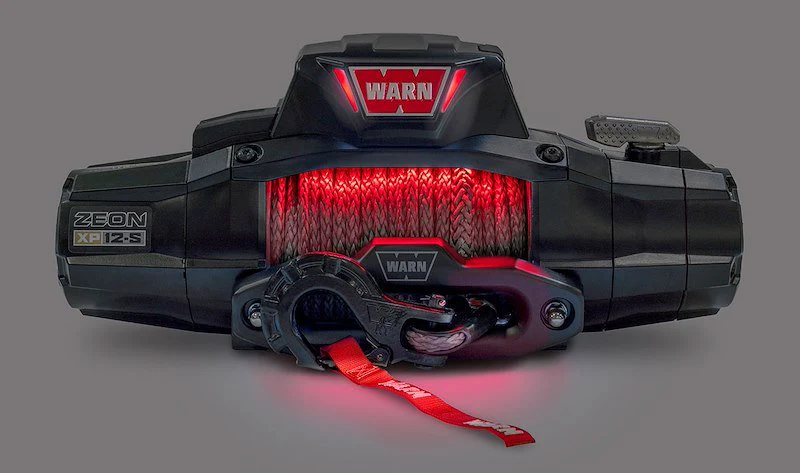

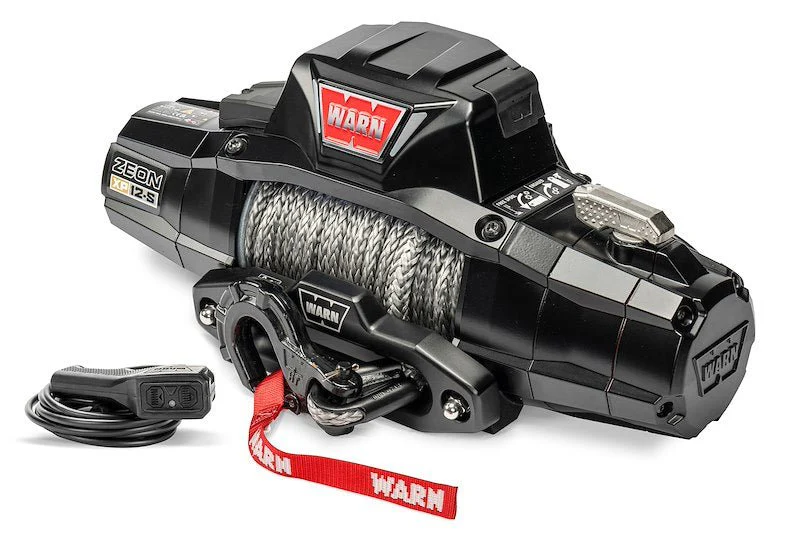

The ZEON XP 12-S is WARN’s top-of-the-line winch, engineered for unmatched pulling power, control, and reliability. Built, tested, and assembled in Clackamas, Oregon, USA, this premium winch is designed for serious off-roaders who demand the very best in performance and durability.

Key Features:

• 12,000 lb Pulling Capacity – Ideal for Jeeps, trucks, and SUVs that need dependable recovery power.

• Fastest Line Speed in its Class – Blazing 40 ft/min no-load line speed with WARN’s high-efficiency motor and geartrain.

• Premium Synthetic Rope – Equipped with Spydura® synthetic rope for strength, flexibility, and easier handling.

• Ultimate Sealing Protection – OEM-grade O-ring gaskets deliver IP68 waterproof submersion and IP69K spray protection.

• Advanced Control System – Built-in HUB wireless receiver plus sensors to monitor winch load, temperature, and battery voltage.

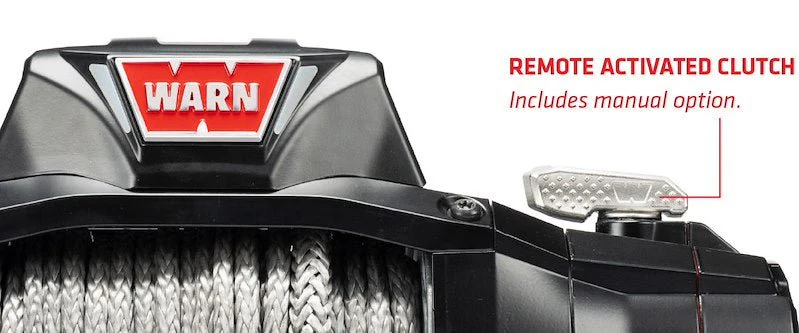

• Remote-Operated Clutch – Engage or disengage the clutch at the push of a button, with manual lever override for backup.

• Durable Construction – Forged aluminum drum and housing for superior heat dissipation, corrosion resistance, and long-lasting good looks.

• OEM-Grade Electricals – Sealed bus bars eliminate exposed wiring for maximum efficiency and reliability.

• Enhanced Corrosion Resistance – Black coated fasteners and UV-resistant covers meet stringent OEM standards.

Why Choose the ZEON XP?

With premium components, advanced technology, and industry-leading sealing, the ZEON XP 12-S represents the highest level of WARN innovation. Whether you’re rock crawling, overlanding, or facing extreme recovery conditions, this winch ensures legendary performance with confidence.

Specs

• Rated Line Pull (Single Line): 12,000 lbs (5443 kg)

• Motor: 12V DC, series wound (exclusive WARN high-performance design)

• No-Load Line Speed: 31 ft/min (9.45 m/min)

• Full Load Line Speed: 3 ft/min (0.91 m/min)

• No-Load Current Draw: 67 amps

• Full Load Current Draw: 466 amps

• Electrical Controls: Contactor with automotive OE-grade bus bars

• Corrosion Resistance: 408-hour salt spray tested

• Ingress Protection: IP68 submersion and IP69K high-pressure spray rated

• Remote Control: Corded remote with LED feedback light + integrated HUB wireless receiver (Bluetooth enabled)

• Drum Diameter/Length: 3.15” x 9.0” (80 mm x 229 mm)

• Geartrain: 3-stage planetary

• Gear Ratio: 141:1

• Clutch (Freespooling): Rotating ring gear with stainless steel lever; manual or remote operation

• Brake: Automatic, six-segment mechanical cone

• Rope: 3/8” x 80’ (9.52 mm x 24.38 m) Spydura Pro synthetic rope

• Fairlead: Black anodized, forged aluminum hawse

• Recommended Battery: 650 CCA minimum

• Battery Leads: 2 gauge, 72” (1.83 m)

• Finish: Satin-black powder coat

• Weight: 85 lbs (in box)

• Final Assembly: WARN facility, Clackamas, Oregon, USA

• Warranty: Limited lifetime (mechanical components), 7 years (electrical components)
